OptiX Metro 100
The OptiX Metro 100 is case-shaped STM-1 optical transmission equipment, which is developed by Huawei. The OptiX Metro 100 supports access of various services at the access layer of a LAN or local transmission network and is targeted for service access on the mobile base station side and for transport of private line services of Tier 1 customers. Together with other equipment working at the access layer, the OptiX Metro 100 provides complete solutions for the optical transmission systems of Huawei.
The OptiX Metro 100 provides various types of service ports, supports complete network security schemes, and features flexible configuration, easy installation, and easy maintenance. In addition, the OptiX Metro 100 consumes low power and supports wind cooling.
Product Positioning
The OptiX Metro 100 is used at the access layer of a transmission network. The OptiX Metro 100 provides STM-1 optical interfaces and works with the other access-layer equipment to form an entire equipment group at the access layer of a transmission network, therefore constructing a complete OptiX product series of Huawei.
Product Overview
The OptiX Metro 100 is new-generation optical transmission equipment developed by Huawei for the access layer.

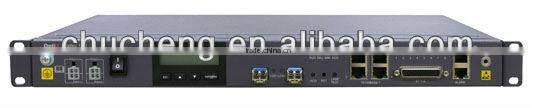

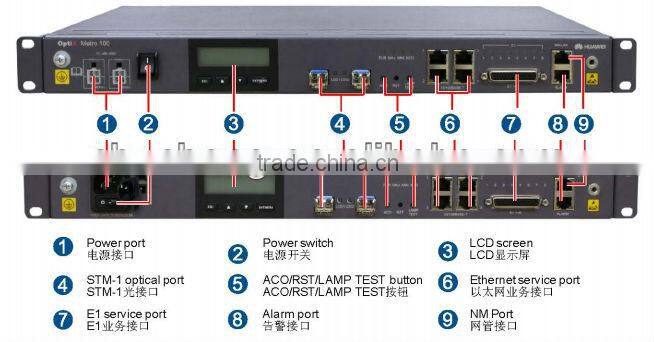

The OptiX Metro 100 is a type of case-shaped equipment. The dimensions of the chassis are: 442 mm (W) x 220 mm (D) x 43.6 mm (H). Except for the power supply module, all the functional units are integrated into the one board.
The OptiX Metro 100 supports the following service models:
- 2xSTM-1+4xFE+8xE1 (DC power supply)
- 2xSTM-1+4xFE+8xE1 (AC power supply)
- 2xSTM-1+8xE1 (DC power supply)
- 2xSTM-1+8xE1 (AC power supply)
- 1xSTM-1+8xE1+4xFE (DC power supply)
- 1xSTM-1+8xE1+4xFE (AC power supply)
- 1xSTM-1+8xE1 (DC power supply)
- 1xSTM-1+8xE1 (AC power supply)
Product Features
The OptiX Metro 100 supports various power input modes, installation modes, and low power consumption.
Support for Default Settings
The OptiX Metro 100 is configured and maintained with the NMS and Web LCT, supporting the "one-click recovery to default settings" function.
Various Installation Modes
The OptiX Metro 100 can be installed in various ways. Therefore, you can select a proper installation mode according to the actual situation.
The OptiX Metro 100 supports the following installation modes:
- Cabinet-mounting (19-inch cabinet or ETSI cabinet)
- Wall-mounting
- Desk-mounting
Various Power Input Modes
The OptiX Metro 100 supports the following power input modes:
- 110 V/220 V AC power input, the power input range is 90 V to 264 V, with the frequency in the range of 47 Hz to 63 Hz.
- -48 V/-60 V DC power input, the power input range is -38.4 V to -72 V.
The OptiX Metro 100 supports one AC power input with a switch present on the chassis.
The OptiX Metro 100 supports two -48 V/-60 V DC power inputs that back up for each other. The OptiX Metro 100 has one DC power supply switch that control the power on/off of the two DC power supplies. When the power inputs of the OptiX Metro 100 are unavailable, the VOLT_LOS alarm is reported.
Low Power Consumption, Natural Heat Dissipation, and High Integration
- Supports a maximum power consumption of 16 W only.
- Supports natural heat dissipation and produces low noise.
- Supports high integration.
All the features can help carriers minimize their OPEX.
Capacity
This section provides the cross-connect capacity and the maximum access capacity of the OptiX Metro 100.
Cross-Connect Capacity
The full higher order and lower order cross-connect capacity of the OptiX Metro 100 is 1.25 Gbit/s.
Service Access Capacity
Table 1 Service access capacity of the OptiX Metro 100
Service Type Maximum Access Capacity Supported by One Device
SDH services 2xSTM-1 (o)
PDH services 8xE1
Ethernet services 4xFE (e)
Service Types
The OptiX Metro 100 supports various services and a wide range of functions and features.
The OptiX Metro 100 supports the following services:
- SDH services
- PDH services
- Ethernet services
Software Architecture
The software system is of a modular design. Each module provides specific functions and works with other modules.
The entire software is distributed in three modules including board software, NE software and NM system.
The software resides respectively on functional boards, the SCC, and NM computer. Hierarchical structure ensures that it is highly reliable and efficient. Each layer performs specific functions and provides service for the upper layer.
Table 2 Service access capacity of the OptiX Metro 100
Service Type Maximum Access Capacity Supported by One Device
SDH services 2xSTM-1 (o)
PDH services 8xE1
Ethernet services 4xFE (e)
Table 3 Size, weight, and power consumption of the OptiX Metro 100
Equipment Name OptiX Metro 100
Maximum Power Consumption 16 W
Maximum Weight DC power: 2.6 kg AC power: 2.7 kg
Fuse Capacity 1 A
Dimensions 442 mm (W) x 220 mm (D) x 43.6 mm (H)
Table 4 Climate requirements for storage environment
Item Range
Altitude ≤ 4000 m
Pressure 70-106 kPa
Temperature -40°C to +70°C
Temperature change rate ≤ 1 °C/min
Relative humidity 5%-100%
Solar radiation ≤ 1120 W/s2
Heat radiation ≤600 W/s2
Wind speed ≤ 30 m/s
