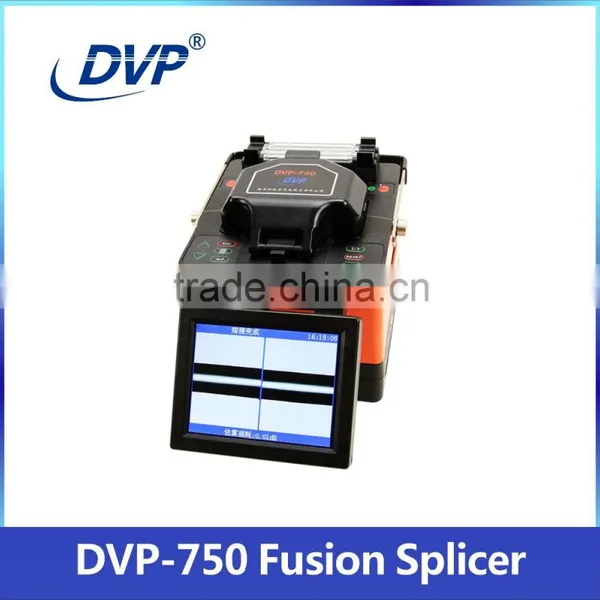

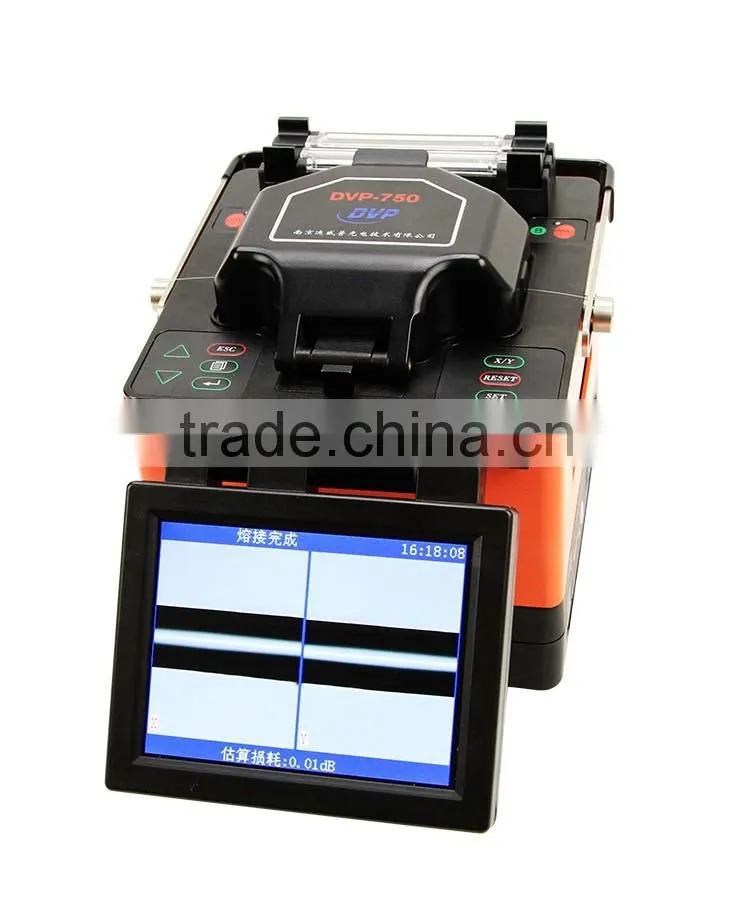

Made in China DVP 750 Splicing Machine Lowest Price supports SM, MM, DS, NZ-DS(G655), EDF
Specifications
Applicable fibers |
SM, MM, DS, NZ-DS(G655), EDF |
Fiber cleaved length |
8-22mm |
Average splice loss |
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
Return loss |
≥60dB |
Tension test |
2.0N(200gf)(Standard) |
Protection sleeve length |
20mm, 40mm, 60mm |
Splice Program |
80 groups of manual setting |
Language |
English, Chinese, Russian |
Environment conditions |
-25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude) |
Storage environment |
-40~ +80℃ (temperature) , 0~95%RH (humidity) |
Power supply |

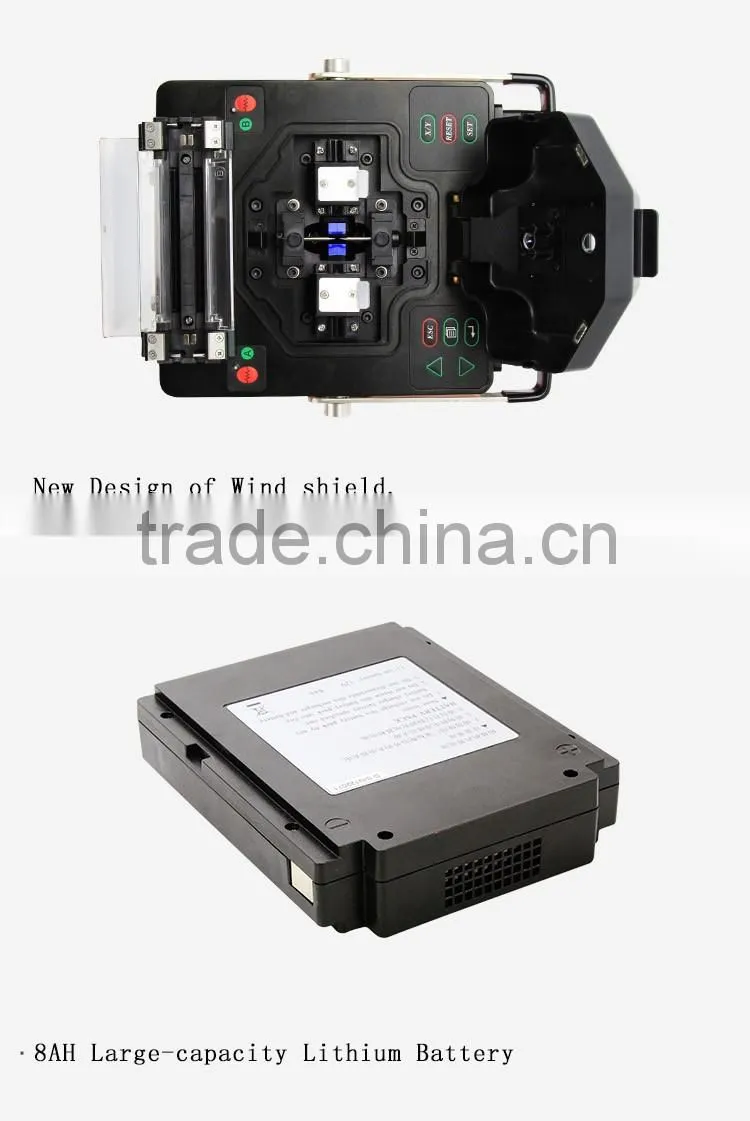

AC adaptor: 85~260V input voltage Internal battery: 12V, 10Ah, up to 150 times of continuous splices and heats DC adaptor: 12V voltage,optional multipurpose external battery |
Dimensions/Weight |
140(D)×150(W)×160(H)mm/2.8kg |
- High resolution LCD display

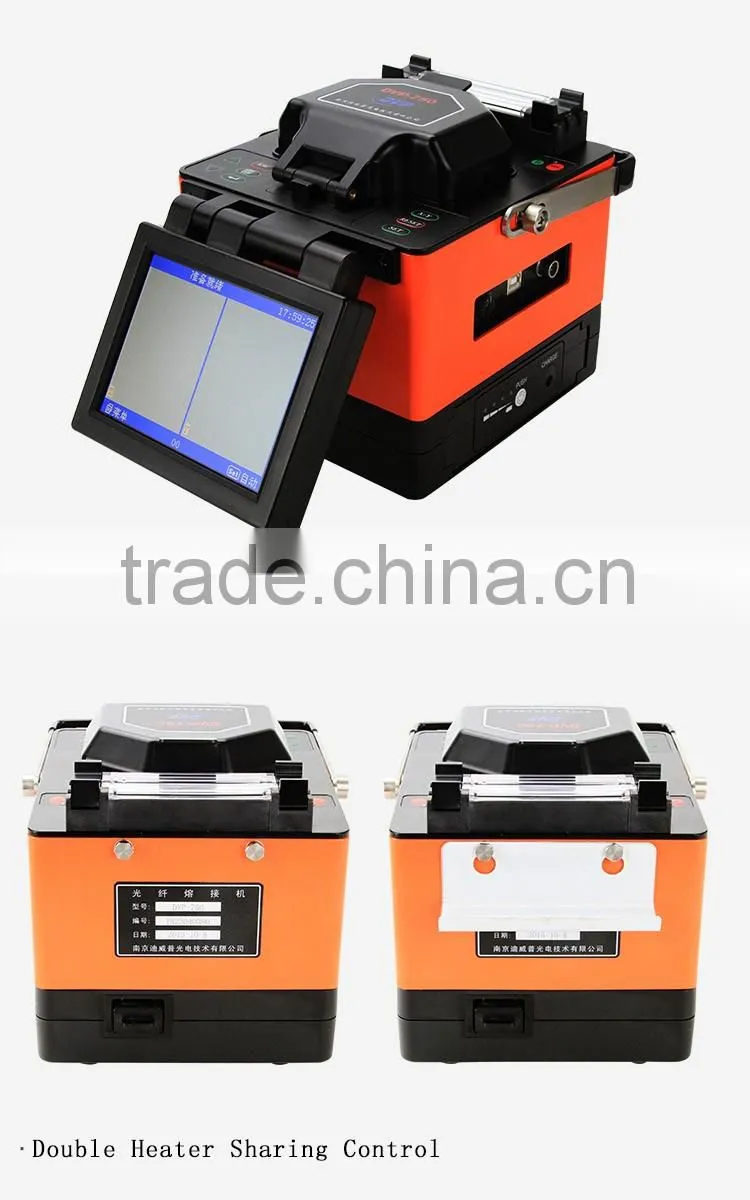

- Double heaters,30 Sec. tube-heat time
- 3 magnification modes, max. 360 magnification
- Four display modes, fiber core visible
- 8 Sec. splice time
- 5000m altitude ensure splice quality
- Store 8000 groups of splice results
- USB interface

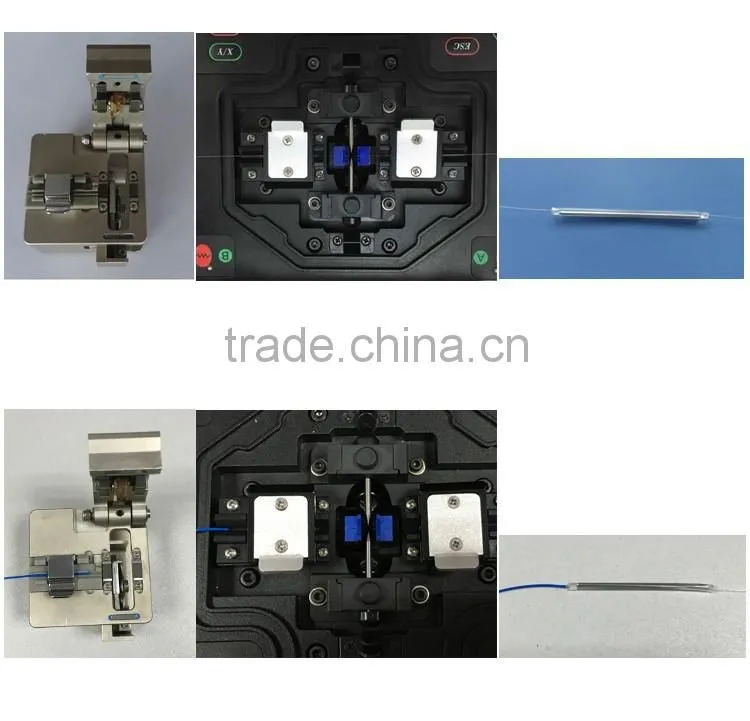

| • (DVP-750)Main body | •Internal Battery | • Charger | •Spare Electrodes | • Cooling Tray | • Manual Instruction |
| • Carry Case | • Fiber Cleaver | •Fiber Stripper | • AC Adaptor |
• AC Power Cord |
To know more about this product, please contact us freely.
