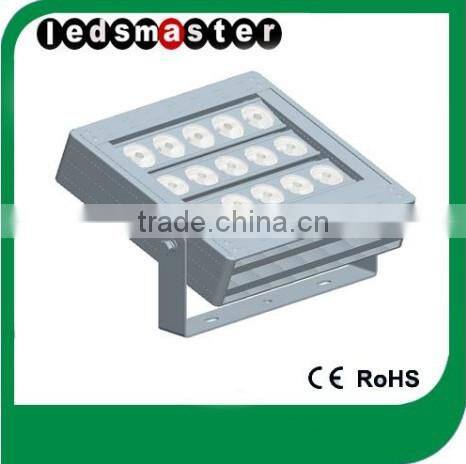

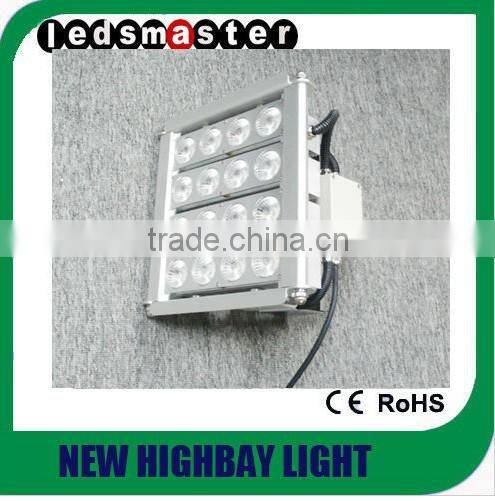

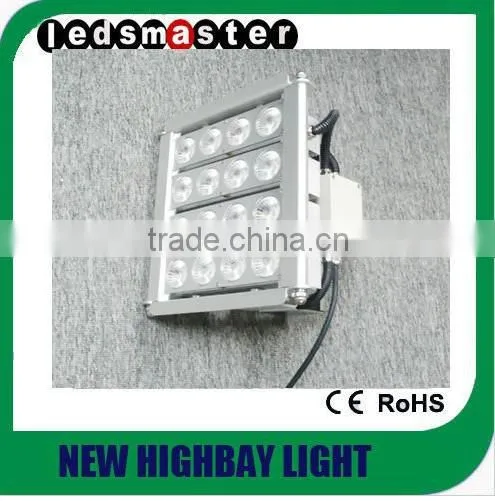

SAA TUV-GS CB UL CUL DLC Listed Modular 100w Billboard Led Flood Lighting

SAA TUV-GS CB UL CUL DLC Listed Modular 100w Billboard Led Flood Lighting thumbnail-1
SAA TUV-GS CB UL CUL DLC Listed Modular 100w Billboard Led Flood Lighting photo-1
US$ 40 - 360 MOQ: 1 Set
Key Specifications
Get Latest Price
LED Light Source:
Bridgelux
Input Voltage(V):
AC90-305V
Lamp Power(W):
80
Contact Supplier Request Quote Chat Now
Ledsmaster Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Bridgelux
Input Voltage(V) AC90-305V
Lamp Power(W) 80
Lamp Luminous Flux(lm) 12800
Lamp Luminous Efficiency(lm/w) 160
Color Temperature(CCT) Pure White
Working Temperature(℃) -40, 60
Working Lifetime(Hour) 100000
Lamp Body Material Aluminum
IP Rating IP67
Certification BV, CE, EMC, Energy Star, ETL, GS, LVD, SASO, UL
Place of Origin Guangdong, China
Brand Name Ledsmaster
Model Number LS-BLN80



SAA TUV-GS CB UL cUL DLC Listed Modular 100w billboard led flood lighting



100W advertising light LED Billboard light IP67 waterproof SAA ETL listed





80watt IP67 waterproof LED billboard light with Meanwell driver



led billboard light,100watt led flood billboard light,outdoor led flood light for billboard,led billboard for bulletin board,led flood light for sign board



UL driver led billboard lights;

IP67 waterproof 100watt led billboard use light

RGB led billboard lights



IP67 waterproof outdoor led flood billboard lighting specification:



Brightest LED billboard Light in the world!
Premium Precise Optical Lens System, 2-10 times brighter than conventional light
Modular Design, Easier Maintenance
Direct Heat Path Technology, 2-5 times better stability
Anti-Glare System, suitable for any occasions
IP66, underwater use support
3 Years Warranty!









Extreme Power LED billbord Light & LED billbord Light
World's brightest outdoor LED Light Ever, Innovation Product!

*80-400watt IP 67 waterproof Flood light for sign board,billboard
* 120, 60, 38, 24 degree of perfect fit lens inbuild, suitable for most of the applications
* Ledsmaster Heat Transfer Technology Applied, Smallest Size for equal power
* Advanced Cooling with Temperature control device
* Bridgelux Chip,Cree available
* 100lm per watt,upto 140lm per watt, equal lumen up to 200lm/W
* 2-5times brighter than Traditional light
* Directly replace 2 times watt Metal halide lamp
* Equal flux show the luminous flux output this model can replace with conventional lamp
* Power Supply of constant currency drive is included
* Stable driver can be easy to be plug in and out
* Patented pending heatsink, smallest size for highest power



  SAA TUV-GS CB UL cUL DLC Listed Modular 100w billboard led flood lighting

With the call for energy saving is increasingly spreading in the world, we are burdened with a glorious mission, that is the premise of environmental protection, as much as possible to save more power. So we firmly believe that our new LED advertising light in the near the future can be fully functional, environmental protection, energy saving, and save a lot of expenses for our people.





Special design for led billboard lighting;

more than 5-10 times energy saving than conventional led billboard light;

Can replace 400-1000W metal halide for billboard

mixed beam angle 10,90 degree can be choose









Why Choose us ?


• Highly experienced sales & Technical personnel;
• We have technology engineers with more than 10 years experience in this filed & highly trained professionals QC to control the quality strictly;
• We offer OEM/ODM service according to your design & your demand;
• Our responsibility is to provide top quality LED lighting & reasonable prices for you to compete in your market competitively.
• We believe that our employee's skills development to serve you better







Led billboard lighting images:



SAA TUV-GS CB UL cUL DLC Listed Modular 100w billboard led flood lightingSAA TUV-GS CB UL cUL DLC Listed Modular 100w billboard led flood lightingSAA TUV-GS CB UL cUL DLC Listed Modular 100w billboard led flood lightingSAA TUV-GS CB UL cUL DLC Listed Modular 100w billboard led flood lightingSAA TUV-GS CB UL cUL DLC Listed Modular 100w billboard led flood lighting



Best service for you,we allow second design and OEM request.



We do our own copy,own creative!



We are the supplier of Erricssion for more than Six years!



Especailly design for outddor big lighting project.Such as billboard lighting, football stadium,Tennis court,port,square,park,market lighting,led screen lighting,etc



No. Model No. Structure Power Light efficiency Lumen (White) Equal Lumen (White) Available Angle Reference Direct Replacement Color Temperature Light Body Size
LxWxH (mm)
exclude holder		 Light Weight
(kg)		 Working Voltage Lamp Holder Meanwell Power Supply
1set (MOQ)
1 LS-FLN100 5*3 100W 140lm/W 14000lm 28000lm 10,25,40, 60,90,120 degree 250-400W
Metal Halide		 2800-3500K
5000-6000K
6500-7500K		 318.8x328.4x75 6.5kg 90-295V AC U bracket 210
2 LS-FLN100-hi 5*3 100W 160lm/W 16000lm 32000lm 10,25,40, 60,90,120 degree 250-400W
Metal Halide		 318.8x328.4x75 6.5kg 90-295V AC U bracket 260
3 LS-FLN150 8*3 150W 140lm/W 21000lm 42000lm 10,25,40, 60,90,120 degree 250-400W
Metal Halide		 2800-3500K
5000-6000K
6500-7500K		 469x328.4x75 7kg 90-295V AC U bracket 265
4 LS-FLN150-hi 8*3 150W 160lm/W 24000lm 48000lm 10,25,40, 60,90,120 degree 250-600W
Metal Halide		 469x328x75 7kg 90-295V AC U bracket 365
5 LS-FLN200 8*4 200W 140lm/W 28000lm 56000lm 10,25,40, 60,90,120 degree 400-800W
Metal Halide		 2800-3500K
5000-6000K
6500-7500K		 469x393x75 10kg 90-295V AC U bracket 345
6 LS-FLN200-hi 8*4 200W 160lm/W 32000lm 64000lm 10,25,40, 60,90,120 degree 400-1000W
Metal Halide		 469x393x75 10kg 90-295V AC U bracket 465
7 LS-FLN300 8*6 300W 140lm/W 42000lm 84000lm 10,25,40, 60,90,120 degree 400-1000W
Metal Halide		 2800-3500K
5000-6000K
6500-7500K		 469x523x75 13kg 90-295V AC U bracket 530
8 LS-FLN300-hi 8*6 300W 160lm/W 48000lm 96000lm 10,25,40, 60,90,120 degree 400-1200W
Metal Halide		 469x393x75 13kg 90-295V AC U bracket 660
9 LS-FLN360 9*6 360W 140lm/W 50400lm 100800lm 10,25,40, 60,90,120 degree 1000-1200W
Metal Halide		 2800-3500K
5000-6000K
6500-7500K		 469x523x75 13kg 90-295V AC U bracket 630
10 LS-FLN360-hi 9*6 360W 160lm/W 57500lm 115000lm 10,25,40, 60,90,120 degree 1000-1500W
Metal Halide		 469x393x75 13kg 90-295V AC U bracket 785
11 LS-FLN400 10*6 400W 140lm/W 56000lm 1120000lm 10,25,40, 60,90,120 degree 1000-1300W
Metal Halide		 2800-3500K
5000-6000K
6500-7500K		 569*524*75 15kg 90-295V AC U bracket 700
12 LS-FLN400-hi 10*6 400W 160lm/W 64000lm 128000lm 10,25,40, 60,90,120 degree 1000-1800W
Metal Halide		 569*524*75 15kg 90-295V AC U bracket 875
13 LS-FLN500 13*6 500W 140lm/W 70000lm 140000lm 10,25,40, 60,90,120 degree 1000-1500W
Metal Halide		 2800-3500K
5000-6000K
6500-7500K		 719x523x75 19kg 90-295V AC U bracket 845
14 LS-FLN500-hi 13*6 500W 160lm/W 80000lm 160000lm 10,25,40, 60,90,120 degree 1000-2000W
Metal Halide		 719x523x75 19kg 90-295V AC U bracket 1095
15 LS-FLN540 12*7 540W 140lm/W 75600lm 151200lm 10,25,40, 60,90,120 degree 1500-2000W
Metal Halide		 2800-3500K
5000-6000K
6500-7500K		 719x523x75 20kg 90-295V AC U bracket 910
16 LS-FLN540-hi 12*7 540W 160lm/W 86400lm 172800lm 10,25,40, 60,90,120 degree 1500-3000W
Metal Halide		 719x523x75 20kg 90-295V AC U bracket 1180
17 LS-FLN720 13*8 720W 140lm/W 100800lm 201600lm 10,25,40, 60,90,120 degree 1500-2000W
Metal Halide		 2800-3500K
5000-6000K
6500-7500K		 719x653x75 26kg 90-295V AC U bracket 1310
18 LS-FLN720-hi 13*8 720W 160lm/W 115000lm 230000lm 10,25,40, 60,90,120 degree 1500-3000W
Metal Halide		 719x653x75 26kg 90-295V AC U bracket 1660
19 LS-FLN900 16*8 900W 140lm/W 126000lm 252000lm 10,25,40, 60,90,120 degree 2000-3000W
Metal Halide		 2800-3500K
5000-6000K
6500-7500K		 869*654*75 30kg 90-295V AC U bracket 1565
20 LS-FLN900-hi 16*8 900W 160lm/W 144000lm 288000lm 10,25,40, 60,90,120 degree 2000-4000W
Metal Halide		 869*654*75 30kg 90-295V AC U bracket 2015
21 LS-FLN1000 16*9 1000W 140lm/W 140000lm 280000lm 10,25,40, 60,90,120 degree 2000-3000W
Metal Halide		 2800-3500K
5000-6000K
6500-7500K		 869x718x75 34kg 90-295V AC U bracket 1740
22 LS-FLN1000-hi 16*9 1000W 160lm/W 160000lm 320000lm 10,25,40, 60,90,120 degree 2000-4000W
Metal Halide		 869x718x75 34kg 90-295V AC U bracket 2240
23 LS-FLN1080 16*10 1080W 140lm/W 151200lm 172800lm 10,25,40, 60,90,120 degree 2000-3000W
Metal Halide		 2800-3500K
5000-6000K
6500-7500K		 869x718x75 35kg 90-295V AC U bracket 1800
24 LS-FLN1080-hi 16*10 1080W 160lm/W 173000lm 346000lm 10,25,40, 60,90,120 degree 2000-4000W
Metal Halide		 869x718x75 35kg 90-295V AC U bracket 2500

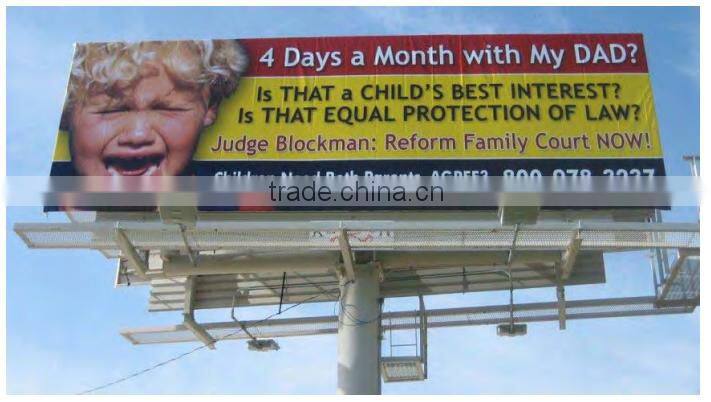

Succeed projects:

SAA TUV-GS CB UL cUL DLC Listed Modular 100w billboard led flood lightingSAA TUV-GS CB UL cUL DLC Listed Modular 100w billboard led flood lighting

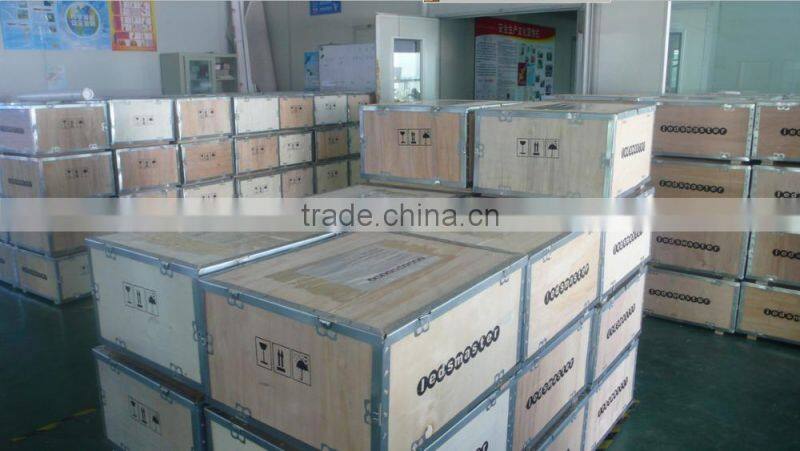

Packaging & Shipping

 SAA TUV-GS CB UL cUL DLC Listed Modular 100w billboard led flood lighting



FAQ

 Q1: What's your delivery time for the new design led downlight sample and batch order?
A1: Your sample can be ready within one 3-7 working days.
For the bath order, the delivery time is around 7-20 working days.

Q2: What's your payment term?
A2: The payment term is 30% by T/T, the balance before shipment.
L/C also is available.

Q3: Do you have MOQ(Minimum Order Quantity) for the order?
A3: There is no limit for the quantity. Any quantity is available.

Q4:Can we do customized packing for new design led downlight?
A4: Yes, the printing content can be made according to your requirements.





Ledsmaster led lights:

SAA TUV-GS CB UL cUL DLC Listed Modular 100w billboard led flood lightingSAA TUV-GS CB UL cUL DLC Listed Modular 100w billboard led flood lightingSAA TUV-GS CB UL cUL DLC Listed Modular 100w billboard led flood lighting
