CCIT Splitter Network Cable 1x4/ 1x8/ 1x16/ 1x32/ 1x64 and 2x4/ 2x8/2x16/ 2x32 4

Name: CCIT Splitter Network Cable 1x4/ 1x8/ 1x16/ 1x32/ 1x64 and 2x4/ 2x8/2x16/ 2x32 4
Brand: CCIT
SKU: 101648917
Availability: InStock

CCIT Splitter Network Cable 1x4/ 1x8/ 1x16/ 1x32/ 1x64 and 2x4/ 2x8/2x16/ 2x32 4 thumbnail-1

CCIT Splitter Network Cable 1x4/ 1x8/ 1x16/ 1x32/ 1x64 and 2x4/ 2x8/2x16/ 2x32 4 photo-1

US$ 1 - 500 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

CCIT

Model Number:

splitter

Contact Supplier Request Quote Chat Now

Shanghai Chu Cheng Information Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name CCIT

Model Number splitter

CCIT splitter network cable 1x4/ 1x8/ 1x16/ 1x32/ 1x64 and 2x4/ 2x8/2x16/ 2x32 4

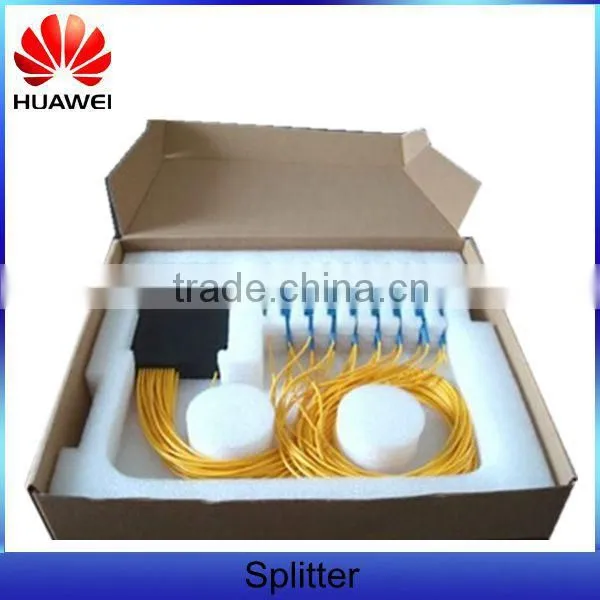

Planar Lightwave Circuit Splitter (PLC)
We offers different types of high-quality splitters. These products are designed for long-term reliability, superior performance, and a wide range of usage in fiber optics including optical transmission, long haul, subscriber loop, fiber to the home, telecommunications, CATV, test equipment, optical fiber sensors, data communications and wide-area network. Our optical splitters are designed for consistent performance, low optical Insertion loss, low polarization Dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks. The products we offer are: PLC Splitter:1x4, 1x8,1x16, 1x32, 1x64, and 2x4,2x8,2x16,2x32 Our PLC splitters are tested based on the strictest standards of the industry, and we guarantee quality, turnaround and competitive pricing.

Specification

Key Features
1. Low IL and PDL
2. High reliability
3. High channel counts
4. Wide wavelength range
5. Large operating temperature range
6. Excellent Environmental & Mechanical Stability

Applications
1. FTTX (FTTP, FTTH, FTTN, FTTC)
2. Local Area Networks (LAN)
3. Test Equipment
4. CATV
5. Analog/Digital Passive Optical Networks (PON)

Compliance
--Telcordia GR-1209
--Telcordia GR-1221

1×N PLC Splitter Specifications (Measured at room temperature and excludes connector loss)
Port Configuration		1x2	1x4	1x8	1x16	1x32	1x64
Fiber Type	SMF-28e or customer specified
Operating Wavelength (nm)	1260~1650
Insertion Loss (dB)	Typical	3.6	6.8	10.2	13.3	16.2	20.5
	Max	4.0	7.4	10.5	13.5	16.9	21.0
Loss Uniformity (dB)	Max	0.5	0.7	1.0	1.4	1.8	2.0
Return Loss (dB)	Min	55	55	55	55	55	55
Polarization Dependent Loss(dB)	Max	0.2	0.2	0.3	0.3	0.3	0.4

Wavelength Dependent Loss(dB)	Max	0.3	0.3	0.3	0.8	0.5	0.8

Operating Temperature (℃)	-40~+85
Storage Temperature (℃)	-40~+85
Packaging Size (mm)	Fan-Out	60x7x4	60x7x4	60x7x4	60x12x4	80x20x6	80x20x6
