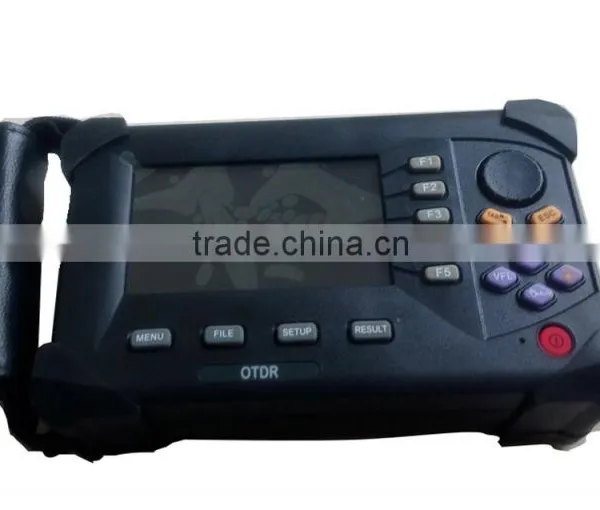

322L Optical Time Domain Reflectometer /OTDR

Name: 322L Optical Time Domain Reflectometer /OTDR
Brand: CCFS
SKU: 101649077
Availability: InStock

US$ 1,500 - 1,800 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Brand Name:

CCFS

Model Number:

322L

Shanghai Chu Cheng Information Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name CCFS

Model Number 322L

322L Optical Time Domain Reflectometer /OTDR

Product Description

Features

l One-key operation, easy to operate

l Smart portable OTDR, 4.3’TFT LCD display

l Firm, durable, shock-proof, moisture-proof

l Automatic trouble–shooting and calibration

l Built-in lithium rechargeable battery, more than

8 hours working hours

l Support USB and RJ45 interface, more convenient to manage files

l Toolbox PC simulation software

Specification

Model	Wavelength(nm)		Dynamic Range(dB)	Event Dead Zone (m)	Attenuation Dead Zone (m)
DVP322	1310±20/1550±20		29/27	<3m	<25m
Distance range(Km)		5m-200km
Pulse width(ns)		5ns~20μs(5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs)
Measurement time		user-defined(smart link),with real-time measurement function
Distance accuracy(m)		±(1m +0.001%×range + sampling resolution)
Attenuation accuracy		±0.05dB/dB
Loss limit(dB)		0.01dB
Loss resolution(dB)		0.001dB
Sampling resolution(m)		0.1m
Sampling points		64000
Data storage		3000 items

OTHER INDICATORS

LCD type	4.3 inch TFT colorized LCD
Laser adapter	FC/PC,
Interface	USB,RJ45
Battery	built-in rechargeable Li-ion battery charging time <4 hours working time >8 hours
Power	AC/DC adapter input AC90-240V ±10% output DC12V
Operating temperature	0℃~40℃
storage temperature	-20℃~70℃
relative humidity	<80%
weight	<1kg
dimensions (mm)	20012662mm
