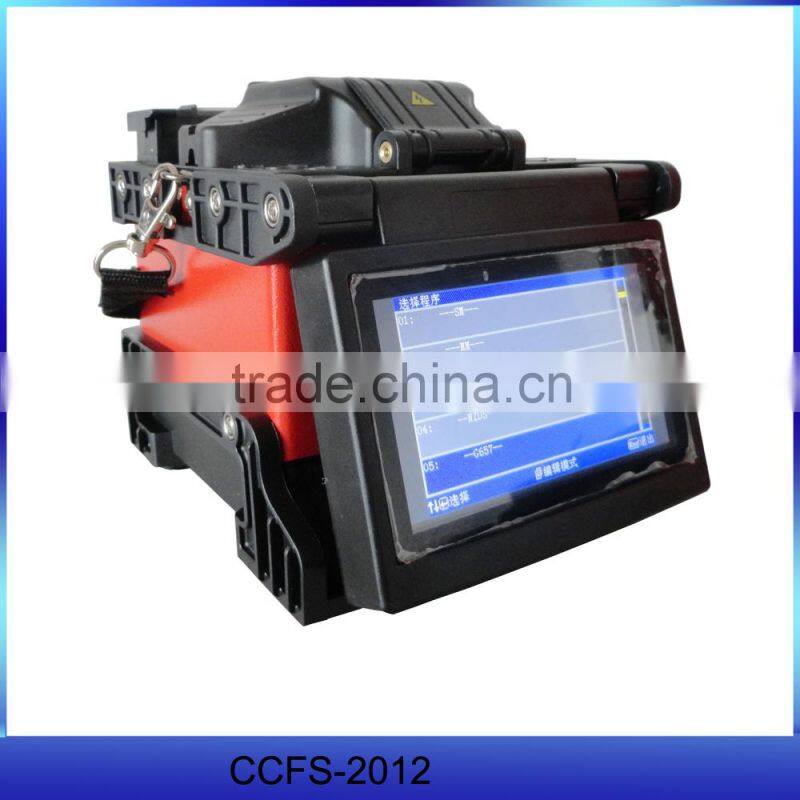

CCFS-2012 Machine Fiber Optic Fusion

Name: CCFS-2012 Machine Fiber Optic Fusion
Brand: CCIT
SKU: 101648925
Availability: InStock

US$ 2,750 - 3,200 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CCIT

Model Number:

CCFS-2012

Shanghai Chu Cheng Information Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CCIT

Model Number CCFS-2012

CCFS-2012 machine fiber optic fusion

Product Description

Features

l Compact & Light weight

l Fully Automatic Operation

l 5000m altitude ensures Splice Quality

l SYSTEM TEST ensures the best working condition

l Color LCD monitor

l Pause function, convenient for scientific research

l Store 8000 groups of splice results

l USB&DC interface

l High battery capacity, up to 120 times of continuous splice and heat

Specification

Applicable fibers	SM, MM, DS, NZ-DS(G655), EDF
Fiber cleaved length	8-22mm
Average splice loss	0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Return loss	≥60dB
Tension test	2.0N(200gf)(Standard)
Protection sleeve length	20mm, 40mm, 60mm
Splice Program	15 groups of preset programs, 1 group of manual setting
Language	English, Chinese, Korean, Russian, Spanish, Portuguese, German, French
Environment conditions	-25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
Storage environment	-40~ +80℃ (temperature) , 0~95%RH (humidity)
Power supply	AC adaptor: 85~260V input voltage Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat
Dimensions/Weight	142(D)×122(W)×138(H)mm/1.95kg
