Specifications
nonwoven geotextile1) geotextile made on circle weave machine
2) Materials: polypropylene and other imported new materi

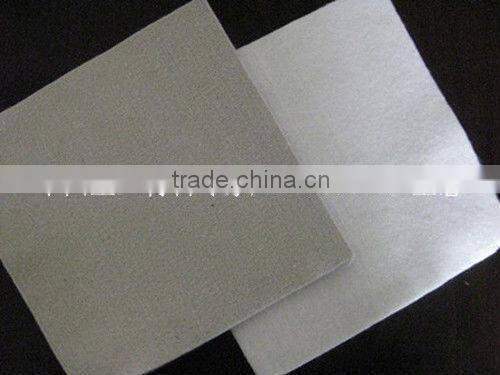

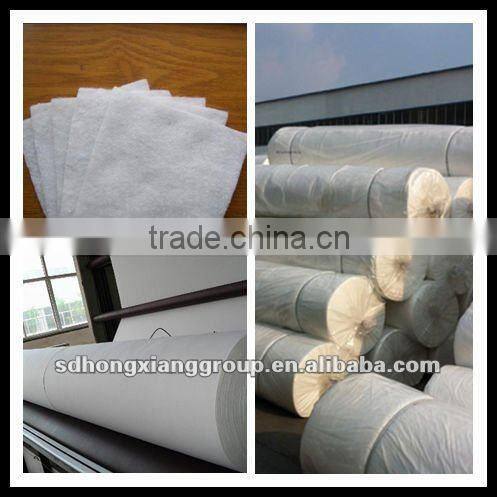

nonwoven geotextile
1) Woven geotextile made on circle weave machine
2) Materials: polypropylene and other imported new materials
3) Weight per square meter: 80-700g/m²
4) Width: max. 6m
5) Perfect flexibility and against ultraviolet radiation and aging.
It can be widely used in areas of railways, highways, sport fields, earthwork projects, tunnels, coal mines, walls and slopes, environmental protection, and so on.
All colors and sizes can be customized.
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
800 |
NOTE |
|
BASIS WEIGHT TOLERANCE (%) |
-8 |
-8 |
-8 |
-8 |
-7 |
-7 |
-7 |
-7 |
-6 |
-6 |
-6 |
|
THICKNESS ≥MM |
0.9 |
1.3 |
1.7 |
2.1 |
2.4 |
2.7 |
3.0 |
3.3 |
3.6 |
4.1 |
5.0 |
|
TENSILE STRENGTH AT BREAKING ≥KN/m |
2.5 |
4.5 |
6.5 |
8.0 |
9.5 |
11.0 |
12.5 |
14.0 |
16.0 |
19.0 |
25.0 |
MD&CD |
CBR PLUNGER STRENGTH ≥KN |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
2.7 |
3.2 |
4.0 |
|
TEARING STRENGTH ≥KN |
0.08 |
0.12 |
0.16 |
0.20 |
0.24 |
0.28 |
0.33 |
0.38 |
0.42 |
0.46 |
0.60 |
|
BREADTH TOLERANCE (%) |
-0.5 |
|||||||||||
ELONGATION AT BREAKING (%) |
25-100 |
MD&CD |
||||||||||
EOS O90mm |
0.07-0.2 |
|||||||||||
VERTICAL PERMEABILITY (CM/S) |
K×(101~~103) |
K=1.0-9.9 |
||||||||||
