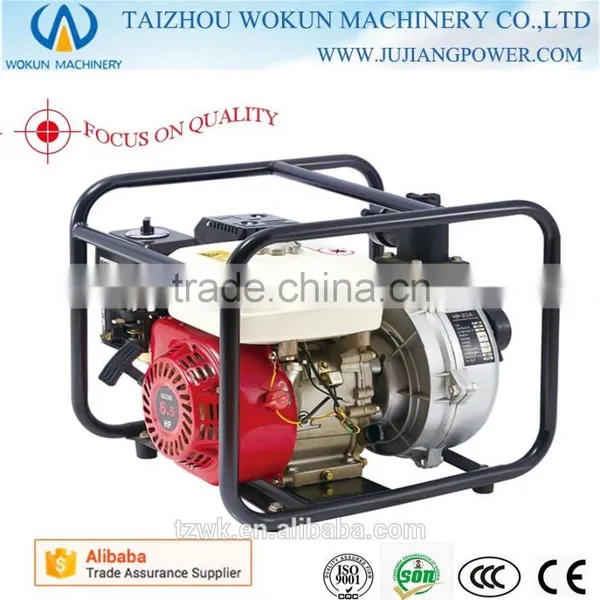

2-4 Inch Gasoline Water Pump Price,4-stroke Air-cooled OHV Gasoline Water Pump

2-4 Inch Gasoline Water Pump Price,4-stroke Air-cooled OHV Gasoline Water Pump thumbnail-1
2-4 Inch Gasoline Water Pump Price,4-stroke Air-cooled OHV Gasoline Water Pump thumbnail-2
2-4 Inch Gasoline Water Pump Price,4-stroke Air-cooled OHV Gasoline Water Pump thumbnail-3
2-4 Inch Gasoline Water Pump Price,4-stroke Air-cooled OHV Gasoline Water Pump thumbnail-4
2-4 Inch Gasoline Water Pump Price,4-stroke Air-cooled OHV Gasoline Water Pump photo-1
2-4 Inch Gasoline Water Pump Price,4-stroke Air-cooled OHV Gasoline Water Pump photo-2
2-4 Inch Gasoline Water Pump Price,4-stroke Air-cooled OHV Gasoline Water Pump photo-3
2-4 Inch Gasoline Water Pump Price,4-stroke Air-cooled OHV Gasoline Water Pump photo-4
US$ 56 - 65 MOQ: 450 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WOKUN
Model Number:
WK30
Contact Supplier Request Quote Chat Now
Taizhou Wokun Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name WOKUN
Model Number WK30
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Hydraulic
Standard or Nonstandard Standard
Fuel Gasoline
Pressure Low Pressure
Application Other, garden, agriculture, home use



2-4 inch gasoline water pump price,4-stroke air-cooled OHV gasoline water pump

hot sell 3inch agricultural irrigation gasoline water pump







- Technical Data:

Power: from 1 inch to 4 inch



Model WP10 WP15 WP20 WP30 WP40
Outlet Size(mm) 25 40 50 80 100
Inlet Size(mm) 25 40 50 80 100
Speed (rpm) 6800 3600 3600 3600 3600
Lift Head. max (m) 22 20 30 30 25
Flow. max(m3/h) 7 21 27 60 80
Suction(m) 7 7 7 7 8
Maximum Power Output (HP) 2.2 2.5 5.5 6.5 13
Engine Model 1E40-6F JJ154 JJ168F JJ168-1 JJ188
Bore x Stroke (mm)   52x38 68x45 68x54 88x64
Displacement (cc) 50.2 87 163 196 389
Compresslon Ratio 7.7: 1 7.7: 1 8.5: 1 8.5: 1 8.0: 1
Maximum Power Output 1.7kw/4000rpm 1.7kw/4000rpm 4.0kw/3600rpm 4.8kw/3600rpm 9.5kw/3600rpm
Recommended Power Using 1.65kw/3600rpm 1.65kw/3600rpm 3.4kw/3600rpm 4.0kw/3600rpm 8.0kw/3600rpm
Maximum Torque 4.2N. M/3200RPM 4.2N. M/3200RPM 10N. M/2500RPM 11N. M/2500RPM 21N. M/2500RPM
Ignition System Non-contact transistorized(TCL)
Engine type 2 stroke Single cylinder, Air-cooled, 4-stroke, 25 inclined
Starting System Recoil and hand-operated Recoil and hand-operated/Eletric start
Air Cleaner semi-dry oil bath type
Fuel tank Capacity (L) 1 1.6 3.6 3.6 6.5
Fuel Consumption(L) ≤ 450g/kw/h ≤ 450g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h
oil Capacity (L) / 0.4 0.6 0.6 1.1
run time per tankful @3/4 load 1h 1.5h 2.6h 2.6h 2.6h
Net Weight(kg) 9/10 15/16 25/27 28/30 45/47
Dimensions LxWxH(mm) 310x295x315 470x365x375 475x375x380 500x375x405 630x455x500
20GP/ 40HQ 931pcs / 2240 pcs 360pcs / 828 pcs 360pcs / 828 pcs 330pcs / 828 pcs 178pcs / 440 pcs

Starting: recoil start, with electric start optional

Optional 1: plastic nipples or aluminum nipples/ connectors & flanges

Optional 2: color carton

Tell us your detail requirement, to recommend you the right one








 - Features

1. Portable compact open structure
2. Economical, reliable and durable
3. Oil alert to shut down engine automatically when low oil is detected

4. Pump body made of light-weight but strong aluminum alloy

5. Cast iron volute and impeller

6. High-quality ceramic mechanical sealing

7. Max. pump lift of 26m, max. suction of 7m

8. CE, SONCAP, ISO certification approved
9. One year or 500 hours warranty









- Factory Show

     - Raw Material

2-4 inch gasoline water pump price,4-stroke air-cooled OHV gasoline water pump







- Assembly

2-4 inch gasoline water pump price,4-stroke air-cooled OHV gasoline water pump2-4 inch gasoline water pump price,4-stroke air-cooled OHV gasoline water pump





- Test

2-4 inch gasoline water pump price,4-stroke air-cooled OHV gasoline water pump







- Packing

2-4 inch gasoline water pump price,4-stroke air-cooled OHV gasoline water pump










- Certificate:

2-4 inch gasoline water pump price,4-stroke air-cooled OHV gasoline water pump2-4 inch gasoline water pump price,4-stroke air-cooled OHV gasoline water pump2-4 inch gasoline water pump price,4-stroke air-cooled OHV gasoline water pump







- Sample Room

2-4 inch gasoline water pump price,4-stroke air-cooled OHV gasoline water pump





- Customers

2-4 inch gasoline water pump price,4-stroke air-cooled OHV gasoline water pump





1 inch to 4 inch gasoline water pump

Professional generator manufactrurer with R&D capacity

Reliable quality, reasonable price, desirable service

Tell us your demand, provide what you want

Contact us now, let's make a deal.........
