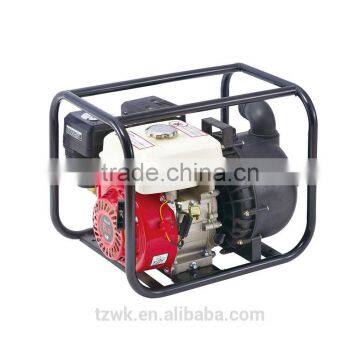

Small Petrol Gasoline Engine Used for Generator Water Pump Cultivator OEM Gasoline Water Pump

Taizhou Wokun Machinery Co., Ltd.
Small Petrol Gasoline Engine Used for Generator Water Pump Cultivator OEM Gasoline Water Pump thumbnail-1
Small Petrol Gasoline Engine Used for Generator Water Pump Cultivator OEM Gasoline Water Pump thumbnail-2
Small Petrol Gasoline Engine Used for Generator Water Pump Cultivator OEM Gasoline Water Pump thumbnail-3
Small Petrol Gasoline Engine Used for Generator Water Pump Cultivator OEM Gasoline Water Pump thumbnail-4
Small Petrol Gasoline Engine Used for Generator Water Pump Cultivator OEM Gasoline Water Pump photo-1
Small Petrol Gasoline Engine Used for Generator Water Pump Cultivator OEM Gasoline Water Pump photo-2
Small Petrol Gasoline Engine Used for Generator Water Pump Cultivator OEM Gasoline Water Pump photo-3
Small Petrol Gasoline Engine Used for Generator Water Pump Cultivator OEM Gasoline Water Pump photo-4
US$ 56 - 65 MOQ: 450 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WOKUN
Model Number:
WK30
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name WOKUN
Model Number WK30
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Hydraulic
Standard or Nonstandard Standard
Fuel Gasoline
Pressure Low Pressure
Application Other, garden, agriculture, home use



Small petrol gasoline engine used for generator water pump cultivator OEM Gasoline water pump

hot sell 3inch agricultural irrigation gasoline water pump







- Technical Data:

Power: from 1 inch to 4 inch



ModelWP10WP15WP20WP30WP40
Outlet Size(mm)25405080100
Inlet Size(mm)25405080100
Speed (rpm)68003600360036003600
Lift Head. max (m)2220303025
Flow. max(m3/h)721276080
Suction(m)77778
Maximum Power Output (HP)2.22.55.56.513
Engine Model1E40-6FJJ154JJ168FJJ168-1JJ188
Bore x Stroke (mm) 52x3868x4568x5488x64
Displacement (cc)50.287163196389
Compresslon Ratio7.7: 17.7: 18.5: 18.5: 18.0: 1
Maximum Power Output1.7kw/4000rpm1.7kw/4000rpm4.0kw/3600rpm4.8kw/3600rpm9.5kw/3600rpm
Recommended Power Using1.65kw/3600rpm1.65kw/3600rpm3.4kw/3600rpm4.0kw/3600rpm8.0kw/3600rpm
Maximum Torque4.2N. M/3200RPM4.2N. M/3200RPM10N. M/2500RPM11N. M/2500RPM21N. M/2500RPM
Ignition SystemNon-contact transistorized(TCL)
Engine type2 strokeSingle cylinder, Air-cooled, 4-stroke, 25 inclined
Starting SystemRecoil and hand-operatedRecoil and hand-operated/Eletric start
Air Cleanersemi-dry oil bath type
Fuel tank Capacity (L)11.63.63.66.5
Fuel Consumption(L)≤ 450g/kw/h≤ 450g/kw/h≤ 395g/kw/h≤ 395g/kw/h≤ 395g/kw/h
oil Capacity (L)/0.40.60.61.1
run time per tankful @3/4 load1h1.5h2.6h2.6h2.6h
Net Weight(kg)9/1015/1625/2728/3045/47
Dimensions LxWxH(mm)310x295x315470x365x375475x375x380500x375x405630x455x500
20GP/ 40HQ931pcs / 2240 pcs360pcs / 828 pcs360pcs / 828 pcs330pcs / 828 pcs178pcs / 440 pcs

Starting: recoil start, with electric start optional

Optional 1: plastic nipples or aluminum nipples/ connectors & flanges

Optional 2: color carton

Tell us your detail requirement, to recommend you the right one








 - Features

1. Portable compact open structure
2. Economical, reliable and durable
3. Oil alert to shut down engine automatically when low oil is detected

4. Pump body made of light-weight but strong aluminum alloy

5. Cast iron volute and impeller

6. High-quality ceramic mechanical sealing

7. Max. pump lift of 26m, max. suction of 7m

8. CE, SONCAP, ISO certification approved
9. One year or 500 hours warranty









- Factory Show

     - Raw Material

Small petrol gasoline engine used for generator water pump cultivator OEM Gasoline water pump

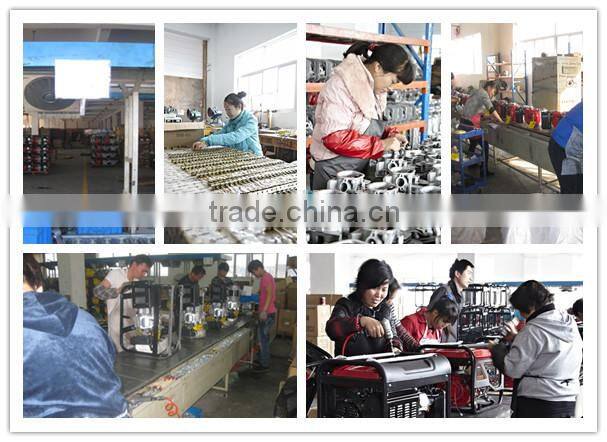

- Assembly

Small petrol gasoline engine used for generator water pump cultivator OEM Gasoline water pumpSmall petrol gasoline engine used for generator water pump cultivator OEM Gasoline water pump





- Test

Small petrol gasoline engine used for generator water pump cultivator OEM Gasoline water pump







- Packing

Small petrol gasoline engine used for generator water pump cultivator OEM Gasoline water pump

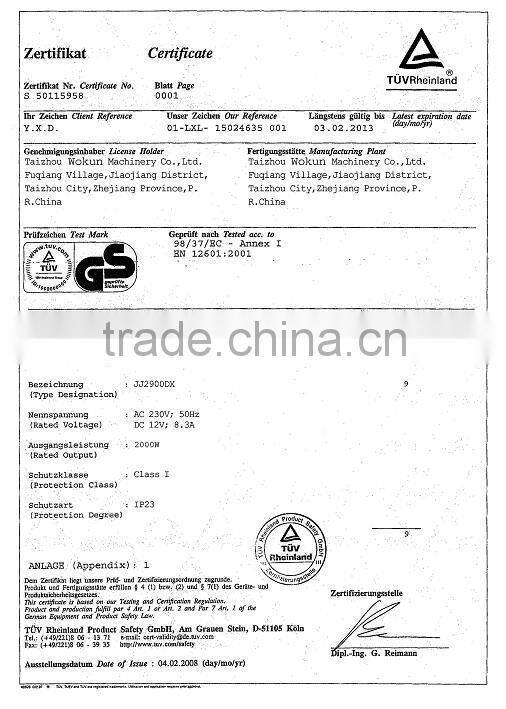

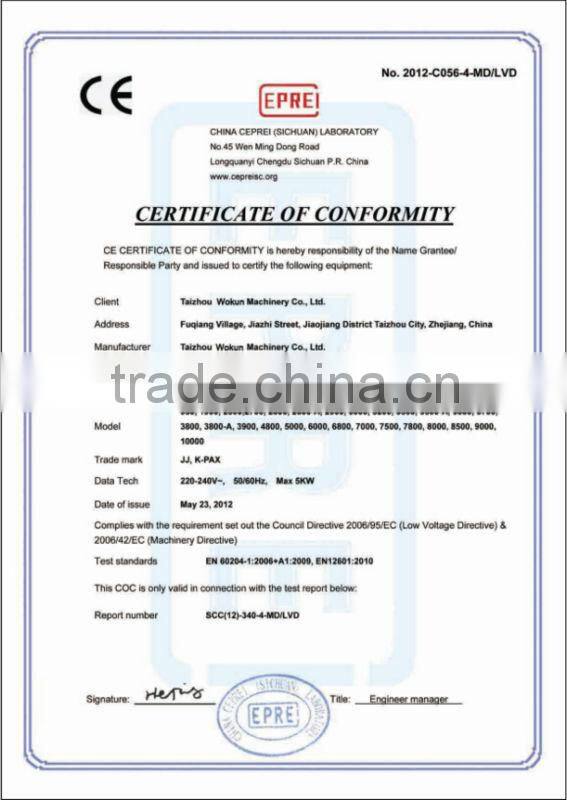

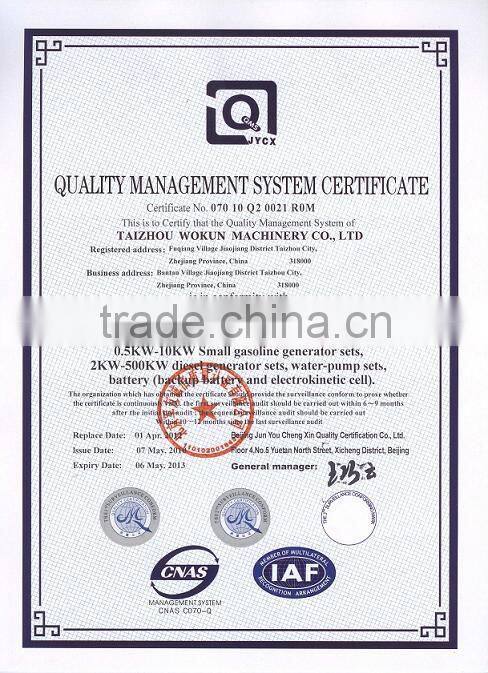

- Certificate:

Small petrol gasoline engine used for generator water pump cultivator OEM Gasoline water pumpSmall petrol gasoline engine used for generator water pump cultivator OEM Gasoline water pumpSmall petrol gasoline engine used for generator water pump cultivator OEM Gasoline water pump

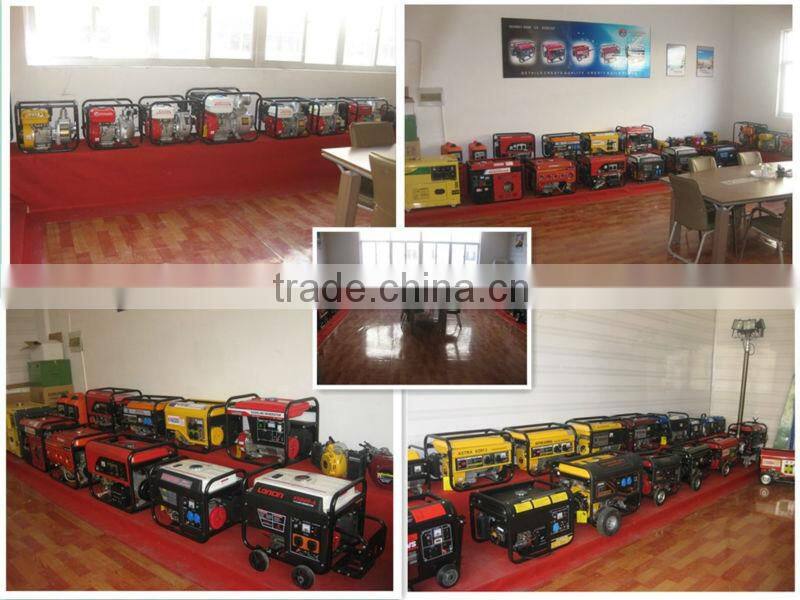

- Sample Room

Small petrol gasoline engine used for generator water pump cultivator OEM Gasoline water pump





- Customers

Small petrol gasoline engine used for generator water pump cultivator OEM Gasoline water pump





1 inch to 4 inch gasoline water pump

Professional generator manufactrurer with R&D capacity

Reliable quality, reasonable price, desirable service

Tell us your demand, provide what you want

Contact us now, let's make a deal.........
