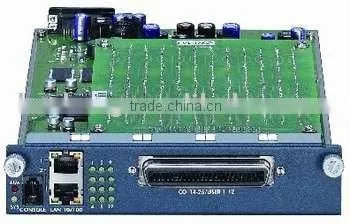

IP DSLAM CCIPDM1200 Card for ADSL2+
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
CCIT
Model Number:
CCIPDM1200
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VDSL IP DSLAM CCIPDM1200 ADSL2+ Line CardNegotiableMOQ: 1 Piece -
ADSL2+ IP DSLAM CCIPDM1200NegotiableMOQ: 1 Piece
-
SHDSL Line Card of IP DSLAM CCIPDM1200NegotiableMOQ: 1 Piece
-
SHDSL Line Card of Mini DSLAM CCIPDM1200NegotiableMOQ: 1 Piece
-
ADSL2+ 48-port MSAN for VOIP DSLAMNegotiableMOQ: 1 Piece
Place of Origin
Shanghai, China
Brand Name
CCIT
Model Number
CCIPDM1200
Specifications
1.IP DSLAM CCIPDM1200 card for ADSL2+2.Flexible Provisioning of DSL and VoIP services
IP DSLAM CCIPDM1200 card for ADSL2+
12-port DSLAM ADSL2+ line module with a splitter built-in
Flexible Provisioning of DSL and VoIP services
Specification
- Delivery of Ethernet in the first mile using legacy LAN technologies
- End-to-end provisioning by offering DSL circuit configuration through NetAtlas Access EMS
- Support expandable configuration with plug-and-play line cards
- SNMP v1, v2 manageable
- Web management
- FTP/TFTP for firmware upload
- Console port configuration (RS-232)
- Telnet configuration and monitoring
- Spanning tree algorithm (802.1D) for loop free connection
- Configurable MTU value
- PPPoE intermediate agent compliant with TR-101
- G.998.1 ATM bonding
- 802.1Q VLAN aware bridging
- IGMP snooping supports multicast traffic
- QoS support with 802.1p
- DHCP relay agent option 82 per VLAN
- Port isolation/per VLAN isoution
- 256 static VLAN entries (full-range VLAN ID 1~4094)
- 4 K MAC address entries
- Packet prioritizing per 802.1p (QoS)
- Static configuration – default priority setting
- 4 priority queues per PVC (up to 4 PVCs)
- Multicast
- IPv4 multicast forwarding (through L2 MAC)
- Static multicast membership configuration
- IGMP v1, v2 snooping & IGMP proxy mode support
- Shared VLAN multicast
- 256 multicast groups and each group can contain 18 members
- IGMP filtering profile
- IGMP count limiting
- MVLAN
- DSL port multicast bandwidth control
- Management support
- CLI-based management from console/Ethernet port
- SNMPV1,v2 and telnet through Inband Ethernet interface and NetAtlas Access, PC-based EMS management support
- Web-based management through Inband Ethernet interface
- Secured Host: configure remote host IP addresses for management
- UNIX syslog
- F/W upgrade, configuration backup & restore via FTP and Web
- Text-based configuration file support
- Port configuration
- Alarm/Status Surveillance
- Performance monitoring
- Security and Memory Backup
- Self diagnostics
- Remote reset
- EMS Management support
- MIB
- SNMP MIB II (RFC1213)
- SNMP v1
- SNMP v2
- RFC1493 Bridge MIB
- RFC1643 Ethernet MIB
- RFC1757 Four group of RMON
- RFC2674
- RFC2662 ADSL line MIB
- RFC4319 (formerly RFC3276) SHDSL Line MIB
Hardware Specifications
- IES-1000M
- 19"1U rack mountable, 2 card slots chassis
- Dimension : 440 mm (W) x 320 mm (D) x 46 mm (H)
- 2 line cards to accommodate different types of DSL services as well as VoIP services
- Fully hot-swappable design
- Support 8 to 32 ports in MDU/central office environment
- Temperature monitoring and alarm
- Auto-shutdown for over temperature
- Surge protection to prevent lightning damage
- AAM1212-51 line module
- One Telco 50 connectors for 12-port ADSL/ADSL2/ADSL2+ and splitter card over POTS
- One mini RJ11 console port for local management
- Two 10/100Base-TX for uplink
- DELT(Dual Ended Loop Test)
- SELT (Single End Loop Test)
- G.998.1 2-port ATM bonding
- Power enhancement or ADSL power saving mode
- Rate adaptation
- Status LEDs- System Status, Ethernet 1 and 2 Link Status, Ethernet 1 and 2 Active Status, ADSL ports status, Alarm
- ADSL Compliance
- DMT T1.413, issue 2
- G.DMT (ITU G.992.1)
- G.LITE (ITU G.992.2)
- G.HS (ITU G.994.1)
- Auto-negotiating rate adaptation
- ADSL2
- G.992.3 Annex A
- G.992.3 Annex L (RE-ADSL)
- Annex M
- ADSL2+
- G.992.5 Annex A, Annex M
- SAM1008 line module
- One console port-: Mini-RJ-11(4P4C)
- One Ethernet port - RJ45 10/100 Mbps
- 8-port G.SHDSL- RJ-11 connector
- Status LEDs- System Status, Ethernet Link Status, Ethernet Active Status, G.SHDSL ports status, Alarm
- Compliant with ITU-T G.991.2
- TC-PAM modulation
- Transmission rate: 192k ~ 2.3Mbps, 64kbps increments over single copper pair
- All front access
- Hot-swappable
Physical Specification
- IES-1000M
- Dimension: 440 (W) x 320 (D) x 46 (H)mm
- Weight : 3.7Kg
- AAM1212-51
- Dimension: 170 (W) x 320 (D) x 35 (H)mm
- Weight : 0.9Kg
- AAM1212-53
- Dimension: 170 (W) x 320 (D) x 35 (H)mm
- Weight : 0.9Kg
- SAM1008
- Dimension: 170 (W) x 320 (D) x 35 (H)mm
- Weight : 0.9Kg
Enviromental specification
- Power supply (AC/DC)
- AC Power: 100~240V AC, 50 ~ 60Hz
- DC Power: -36 ~ -72 V DC
- Power consumption
- AAM1212-51: 25W
- AAM1212-53: 25W
- SAM1008: 8.59W
- SAM1216-22: 25W
- VOP1224-61 : 30W
- Operating Temperature:0°C~ 50°C
- Storage temperature:-40°C~ 70°C
- Operating Humidity:10% ~ 90% (non-condensing)
- Storage Humidity:10% ~ 95% (non-condensing)
Certification
- Safety
- UL 60950-1
- CSA 60950-1
- EN60950-1
- IEC 60950-1
- EMC
- FCC Part 15B Class A
- EN55022 Class A
- EN55024 Class A
- ETSI 300386
- Reliability
- ETSI 300019
- Telecom
- ITU-T K20
