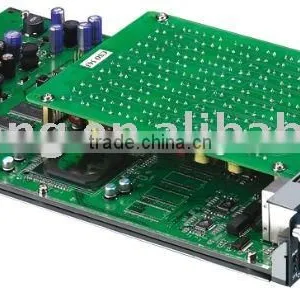

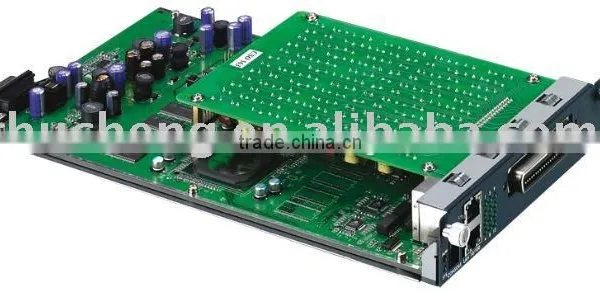

VDSL IP DSLAM CCIPDM1200 ADSL2+ line card

Specifications

• Delivery of Ethernet in the first mile using legacy LAN technologies
• End-to-end provisioning by offering DSL circuit configuration through NetAtlas Access EMS
• Support expandable configuraton with plug-and-play line cards
• SNMP v1, v2 manageable
• Web management
• FTP/TFTP for firmware upload
• Console port configuration (RS-232)
• Telnet configuration and monitoring
• Spanning tree algorithm (802.1D) for loop free connection
• Configurable MTU value
• PPPoE intermediate agent compliant with TR-101
• G.998.1 ATM bonding
• 802.1Q VLAN aware bridging
  • IGMP snooping supports multicast traffic
  • QoS support with 802.1p
  • DHCP relay agent option 82 per VLAN
  • Port isolation/per VLAN isolution
  • 256 static VLAN entries (full-range VLAN ID 1~4094)
  • 4 K MAC address entries
• Packet prioritizing per 802.1p (QoS)
  • Static configuration – default priority setting
  • 4 priority queues per PVC (up to 4 PVCs)
• Multicast
  • IPv4 multicast forwarding (through L2 MAC)
  • Static multicast membership configuration
  • IGMP v1, v2 snooping & IGMP proxy mode support
  • Shared VLAN multicast
  • 256 multicast groups and each group can contain 18 members
  • IGMP filtering profile
  • IGMP count limiting
  • MVLAN
  • DSL port multicast bandwidth control
• Management support
  • CLI-based management from console/Ethernet port
  • SNMPV1,v2 and telnet through Inband Ethernet interface and NetAtlas Access, PC-based EMS management support
  • Web-based management through Inband Ethernet interface
  • Secured Host: configure remote host IP addresses for management
  • UNIX syslog
  • F/W upgrade, configuration backup & restore via FTP and Web
  • Text-based configuration file support
• Port configuration
• Alarm/Status Surveillance
• Performance monitoring
• Security and Memory Backup
• Self diagnostics
• Remote reset
• EMS Management support
• MIB
• SNMP MIB II (RFC1213)
• SNMP v1
• SNMP v2
• RFC1493 Bridge MIB
• RFC1643 Ethernet MIB
• RFC1757 Four group of RMON
• RFC2674
• RFC2662 ADSL line MIB
• RFC4319 (formerly RFC3276) SHDSL Line MIB

• IES-1000M
  • 19"1U rack mountable, 2 card slots chassis
  • Dimension : 440 mm (W) x 320 mm (D) x 46 mm (H)
  • 2 line cards to accommodate different types of DSL services as well as VoIP services
  • Fully hot-swappable design
  • Support 8 to 32 ports in MDU/central office environment
  • Temperature monitoring and alarm
  • Auto-shutdown for over temperature
  • Surge protection to prevent lightning damage
• AAM1212-51 line module
  • One Telco 50 connectors for 12-port ADSL/ADSL2/ADSL2+ and splitter card over POTS
  • One mini RJ11 console port for local management
  • Two 10/100Base-TX for uplink
  • DELT(Dual Ended Loop Test)
  • SELT (Single End Loop Test)
  • G.998.1 2-port ATM bonding
  • Power enhancement or ADSL power saving mode
  • Rate adaptation
  • Status LEDs- System Status, Ethernet 1 and 2 Link Status, Ethernet 1 and 2 Active Status, ADSL ports status, Alarm
  • ADSL Compliance
    • DMT T1.413, issue 2
    • G.DMT (ITU G.992.1)
    • G.LITE (ITU G.992.2)
    • G.HS (ITU G.994.1)
    • Auto-negotiating rate adaptation
  • ADSL2
    • G.992.3 Annex A
    • G.992.3 Annex L (RE-ADSL)
    • Annex M
  • ADSL2+
    • G.992.5 Annex A, Annex M
• SAM1008 line module
  • One console port-: Mini-RJ-11(4P4C)
  • One Ethernet port - RJ45 10/100 Mbps
  • 8-port G.SHDSL- RJ-11 connector
  • Status LEDs- System Status, Ethernet Link Status, Ethernet Active Status, G.SHDSL ports status, Alarm
  • Compliant with ITU-T G.991.2
  • TC-PAM modulation
  • Transmission rate: 192k ~ 2.3Mbps, 64kbps increments over single copper pair
  • All front access
  • Hot-swappable

Physical Specification

• IES-1000M
  • Dimension: 440 (W) x 320 (D) x 46 (H)mm
  • Weight : 3.7Kg
• AAM1212-51
  • Dimension: 170 (W) x 320 (D) x 35 (H)mm
  • Weight : 0.9Kg
• AAM1212-53
  • Dimension: 170 (W) x 320 (D) x 35 (H)mm
  • Weight : 0.9Kg
• SAM1008
  • Dimension: 170 (W) x 320 (D) x 35 (H)mm
  • Weight : 0.9Kg

• Power supply (AC/DC)
  • AC Power: 100~240V AC, 50 ~ 60Hz
  • DC Power:  -36 ~ -72 V DC
• Power consumption
  • AAM1212-51: 25W
  • AAM1212-53: 25W
  • SAM1008: 8.59W
  • SAM1216-22: 25W
  • VOP1224-61 : 30W
• Operating Temperature:0°C~ 50°C
• Storage temperature:-40°C~ 70°C
• Operating Humidity:10% ~ 90% (non-condensing)
• Storage Humidity:10% ~ 95% (non-condensing)

• Safety
  • UL 60950-1
  • CSA 60950-1
  • EN60950-1
  • IEC 60950-1
• EMC
  • FCC Part 15B Class A
  • EN55022 Class A
  • EN55024 Class A
  • ETSI 300386
• Reliability
  • ETSI 300019
• Telecom
  • ITU-T K20
