CCIT Optical Line Terminal - Chassis Type GEPON OLT CCPON7023

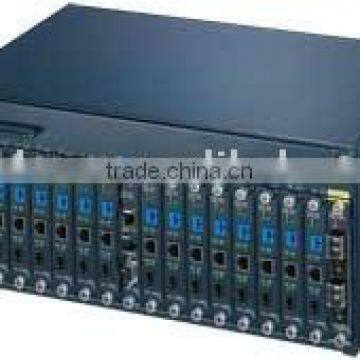

CCIT Optical Line Terminal - Chassis Type GEPON OLT CCPON7023 thumbnail-1
CCIT Optical Line Terminal - Chassis Type GEPON OLT CCPON7023 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
CCIT
Model Number:
CCPON7023
Contact Supplier Request Quote Chat Now
Shanghai Chu Cheng Information Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name CCIT
Model Number CCPON7023

Specifications

GEPON Optical Line Terminal - Chassis Type
1.Broadband Passive Optical Network
2.High Bandwidth
3.20km Long Distance Coverag

Chassis Design for Easy Maintenance and High Scalability
ZyXEL OLT-2300 is a chassis-based Optical Line Terminal system with highly scalable GE-PON ports and uplink ports. The OLT-2300 can terminate up to 512 subscribers with up to 1:32 split and utilize optics for fiber loop distances up to 20 km.
The OLT-2300 Series consists of one OLT-2300M (chassis cabinet), one OFC-2300 (FAN module), one OPA-2300 (DC power module), one OMC-2301 (management card) and up to sixteen OLC-2301HA-12 (line cards).

Redundancy Design and Hot Swappable for Non-Stop Services
The OLT-2300 is managed through a centralized mechanism with optional redundancy. Robust power redundancy ensures stable services to subscribers, while the hot-swappable function allows FTTx network maintenance and extension to be performed without service interruption. With the advanced design, subscribers can be served from sub racks of the chassis easily and economically.

Authentication and Encryption for Security
802.1x port authentication can recognize the ONU which doesn't register and reject the service requirement. It can secure the access services in your network. AES-128bit encryption for both downstream and upstream can secure your data transmission.

Flexible Management Ways for Centralized Management
The OLT-2300 supports an out band management port which enables the configuration of management. The management activities can be done via web GUI, CLI, SNMP. In addition, firmware upgrade can be done via FTP.

Alarm/Status Surveillance and Dying Gasp Support
One "Alarm" port can connect to Alarm/Status surveillance for reporting of relevant events/conditions, which occur in the GEPON network.  Dying gasp messages are transmitted form ONU to OLT when an unrecoverable remote failure occurs.



System Specification

  • Fully compliant with IEEE 802.3ah
  • OAM (Operation, Administration, Maintenance)
  • Auto discovery
  • Remote loopback test
  • Discovery state and normal state
  • OAMPDUs (OAM Protocol Data Units)
  • LLID assigned dynamically
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.1P
  • IGMP v.2
  • IGMP proxy and snooping
  • IEEE 802.1x
  • ICMP (Internet control Message Protocol) supporting
  • Remote management
  • Performance Management
  • Alarm/Status Surveillance
  • LED indication

Hardware Specifications

  • OLT-2300M
    • 18-slot rack mountable enclosure, 19" main chassis
    • 1 backplane
    • 1 slot for dual power redundancy
    • 1 slot for management card
    • 16 slots for GEPON termination cards
    • 1 slot for fan tray
  • OLC-2301HA-12
    • Hot swappable GEPON line card
    • 1 combo copper/SFP (1000Mbps) port for uplink
    • 1 PON port
    • 20km reach distance
  • OMC-2301
    • 1 10/100 management port
    • 1 DB9 serial console port
    • OPA-2300
    • Dual power card for power redundancy
    • DC -48V
  • OFC-2300
    • Slide-in tray module
    • 8 fans

Power Requirements

  • Power Supply: -48VDC

Physical Specifications

  • OLT-2300
    • Dimension: 435.7 (W) x 191.85 (D) x 232 (H) mm
    • Weight: 9.04kg (fullest)
  • OLT-2300M
    • Dimension: 435.7 (W) x 191.85 (D) x 232 (H) mm
    • Weight: 3.58kg
  • OLC-2301HA-12
    • Dimension: 132 (W) x 219.1 (D) x 23 (H) mm
    • Weight: 0.24kg
  • OMC-2301
    • Dimension: 132 (W) x 219.1 (D) x 23 (H) mm
    • Weight: 0.26kg
  • OPA-2300
    • Dimension: 132 (W) x 232.4 (D) x 23 (H) mm
    • Weight: 0.20kg
  • OFC-2300
    • Dimension: 432.7 (W) x 230.5 (D) x 44.45 (H) mm
    • Weight: 1.16kg

Environmental Specification

  • Operating temperature: 0°C ~50°C
  • Storage temperature: -25°C~75°C
  • Humidity: 5% ~95% (non-condensing)

Certification

  • CE
  • CSA 60950
  • FCC part15 ClassA
  • VCCI ClassA
