Car parking sensor system car sensor

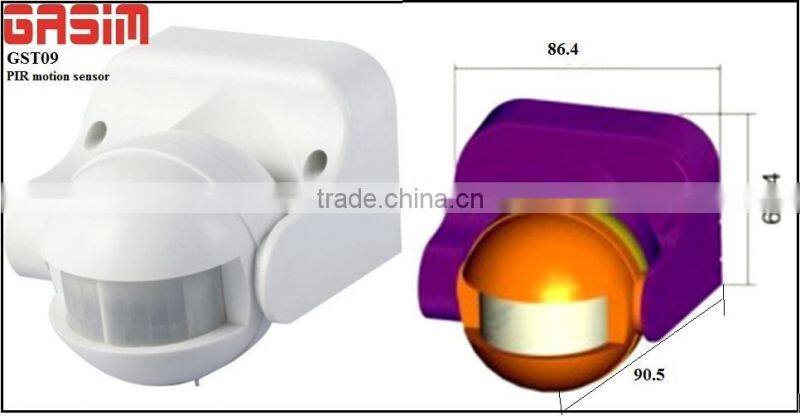

1, Image& size:

                Car parking sensor system car sensor

2, Specification:

3, Functions:

1, Detection field: The wide detection range is made up of up and down, left and right (see the following diagram), the detection range could be adjusted according to your desire, but the moving orientation in detection field has great relation with the sensitivity.

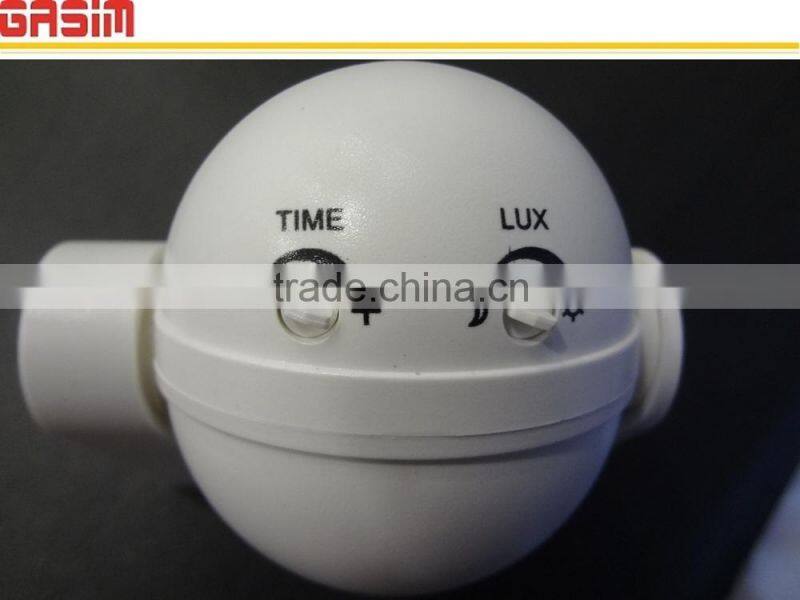

2, Identify day and night automatically: The ambient light of ST09 could be adjusted according to your desire: when turn to SUN (max), it will work day and night, when turn it to MOON (min), it will only work in the ambient light less than 3LUX. As for adjustment, please refer to testing way.

3, Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basis (set time).

4, Time-delay is adjustable: It can be set according to your desire, the minimum is 10sec±3sec, and the maximum is 7min±2min.

 4, Installation:

4.1 Position for installation.

When you are selecting the mounting position take into account the following points.
1. The sensor is designed for optimum performance when mounted 2.5 meters above ground level.
2. Avoid positioning close to trees or shrubs, which may cause false triggering during wet windy weather.
3. Avoid pointing at or positioning close to heat sources such as flues or heat extraction units, which may cause false triggering.
4. Avoid pointing at bright lights as unit will not function when you set LUX control level to dark.
5. Avoid mounting at strong electromagnetic disturbance, which may cause false triggering.
6. The sensor is most sensitive to movement across the detection area as opposed to directly towards or away from the unit. Position the unit to point across flow areas.

4.2 Steps for installation:

1, Shut off power.

2, Loosen the screw on the bottom lid, open the wiring hole, pass the wire of power and load through the bottom lid.

3, Fix the bottom lid with inflated screw on the selected position.

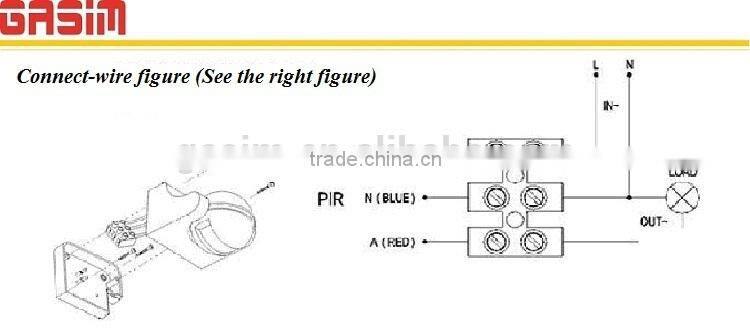

4         Connect the power and load wire into connection-wire column according to the connecting figure.

5, Put the sensor on the bottom lid, twist the screw tightly then electrify it and test it.

        Car parking sensor system car sensor

     Car parking sensor system car sensor

5, Market:

    Car parking sensor system car sensor

1. This product exported Mexico, the United States, Poland, Canada, England, and other countries.

2. We guarantee each product will be checked.

3. If there are bad products, we will promptly pay compensation to customers without any charge.

4. We also sell a lot of similar electronic products, varieties, good quality.

                Car parking sensor system car sensor

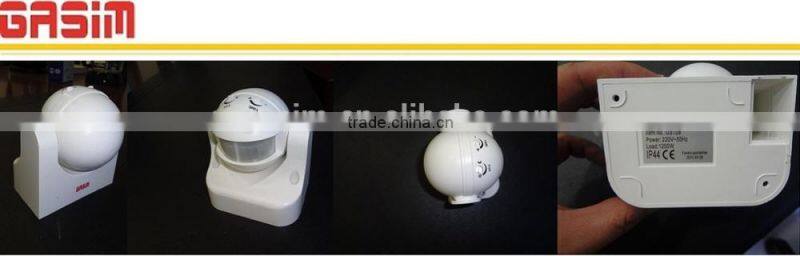

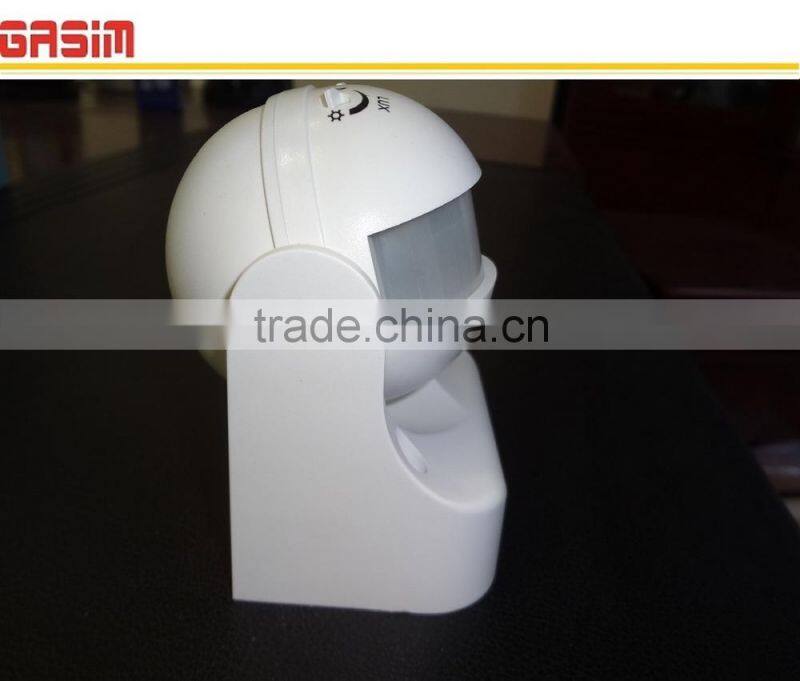

6, Images of GST09 PIR MOTION SENSOR
