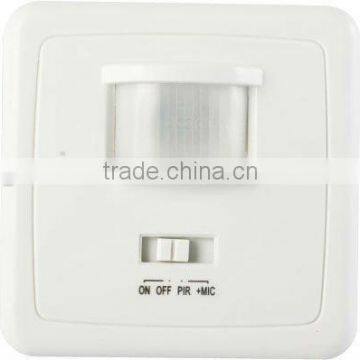

Sensor measuring body temperature sensor
1, Product Descriptions:
This product is a new type of energy-saving lighting switch, it adopts high sensitivity detector, integrate circuit and SMT; It gathers automatic, convenient, safe, energy-saving, practical functions; It has wide detection range made up of up and down, left and right service field; It utilizes human motion infrared rays as control signal sources, when one enters the detection field, it will start the controlled load at once; It can identify day and night automatically; It is easy to install and its usage is wide; It has the function of power indication and detection indication.
1, Image& size:
2, Specification:
|

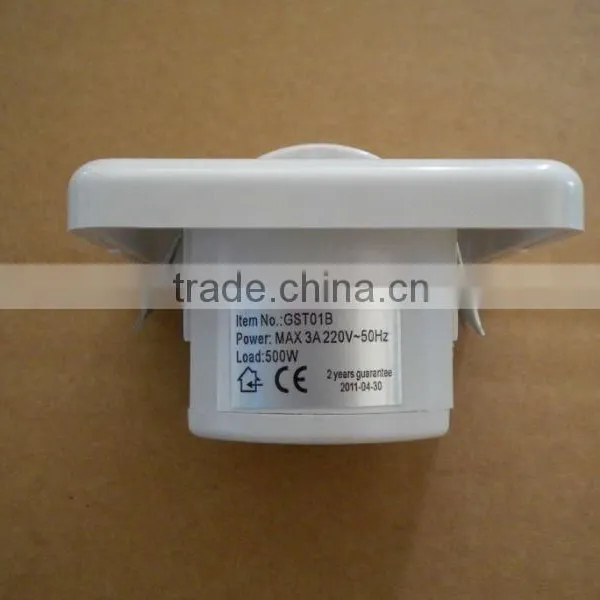

GST01A
GST01B |
|
white/black |
PC |

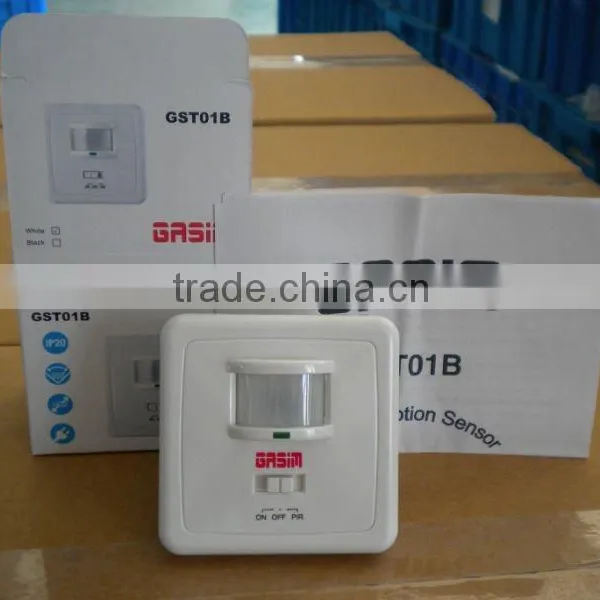

each unit in a color box, 50pcs in a carton |
3, Functions:
1, Detection field: The wide detection range is made up of up and down, left and right (see the following diagram), the detection range could be adjusted according to your desire, but the moving orientation in detection field has great relation with the sensitivity.
2, Identify day and night automatically: The ambient light of GST09 could be adjusted according to your desire: when turn to SUN (max), it will work day and night, when turn it to MOON (min), it will only work in the ambient light less than 3LUX. As for adjustment, please refer to testing way.
3, Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basis (set time).
4, Time-delay is adjustable: It can be set according to your desire, the minimum is 10sec±3sec, and the maximum is 7min±2min.
4, Installation:
4.1 Position for installation.
When you are selecting the mounting position take into account the following points.
1. The sensor is designed for optimum performance when mounted 2.5 meters above ground level.
2. Avoid positioning close to trees or shrubs, which may cause false triggering during wet windy weather.
3. Avoid pointing at or positioning close to heat sources such as flues or heat extraction units, which may cause false triggering.
4. Avoid pointing at bright lights as unit will not function when you set LUX control level to dark.
5. Avoid mounting at strong electromagnetic disturbance, which may cause false triggering.
6. The sensor is most sensitive to movement across the detection area as opposed to directly towards or away from the unit. Position the unit to point across flow areas.
4.2 Steps for installation:
1, Shut off power.
2, Loosen the screw on the bottom lid, open the wiring hole, pass the wire of power and load through the bottom lid.
3, Fix the bottom lid with inflated screw on the selected position.

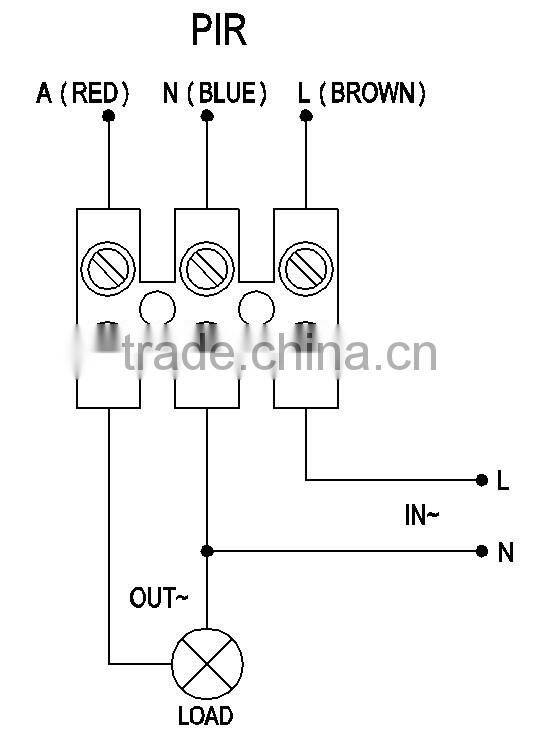

4, Connect the power and load wire into connection-wire column according to the connecting figure.
5, Put the sensor on the bottom lid, twist the screw tightly then electrify it and test it.
| name | Sensor measuring body temperature sensor |
| Detection Range | 180 degree |
| Power Source | 110-130V/AC?? 220-240V/AC |
| Frequency | 50/60Hz Sensor measuring body temperature sensor |
Sensor measuring body temperature sensor
Sensor measuring body temperature sensor
NOTE:
1. Should be installed by electrician or experienced person.
2. Avoid installing it on the unrest object.
3. There should be no hindrance and moving objects in front of the detection windows to effect detection.
4. Avoid installing it near air temperature alteration zones such as air condition, central heating, etc.
5. Considering your safety, please do not open the cover when you find the hitch after installation.
6. If there is difference between instruction and the function the product has, please give priority to product and sorry not to inform you additionally.
SOME PROBLEM AND SOLVED WAY
Sensor measuring body temperature sensor
1. The load do not work:
a. Please check if the connection-wiring of power and load is correct.
b. Please check if the load is good.
c. Please check if the working light sets correspond to ambient light.
2. The sensitivity is poor:
a. Please check if there has hindered in front of the detection window to effect to receive the signal.
b. Please check if the ambient temperature is too high.
c. Please check if the induction signal source is in the detection fields.
d. Please check if the installation height corresponds to the height showed in the instruction.
e. Please check if the moving orientation is correct.
3.The sensor can not shut off the load automatically:
a. Please check if there is continual signal in the detection field.
b. Please check if the time delay is the longest.
c. Please check if the power corresponds to the instruction.
d. Please check if the temperature near the sensor changes obviously, such as air condition or central heating etc.
Sensor measuring body temperature sensor
Sensor measuring body temperature sensor
5, Market:
1. This product exported Mexico, the United States, Poland, Canada, England, and other countries.
2. We guarantee each product will be checked.
3. If there are bad products, we will promptly pay compensation to customers without any charge.
4. We also sell a lot of similar electronic products, varieties, good quality.
Sensor measuring body temperature sensor
Sensor measuring body temperature sensor

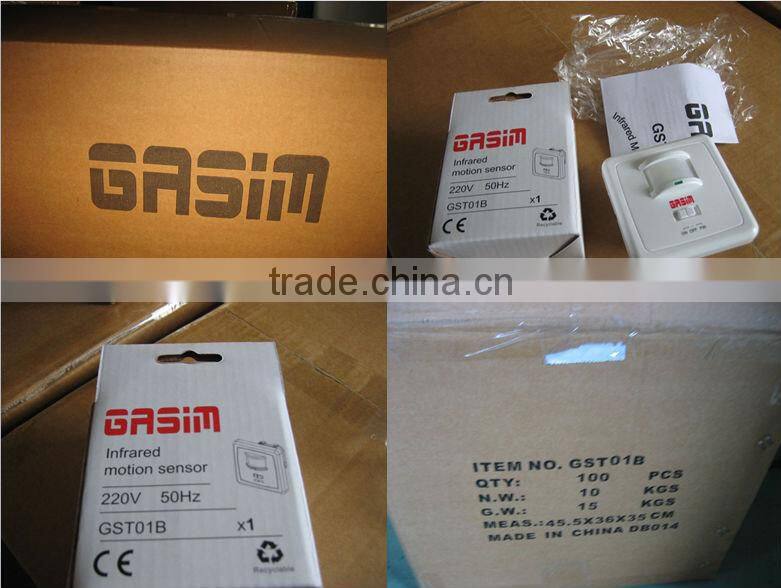

standard export packing for Sensor measuring body temperature sensor
Sensor measuring body temperature sensor
Sensor measuring body temperature sensor

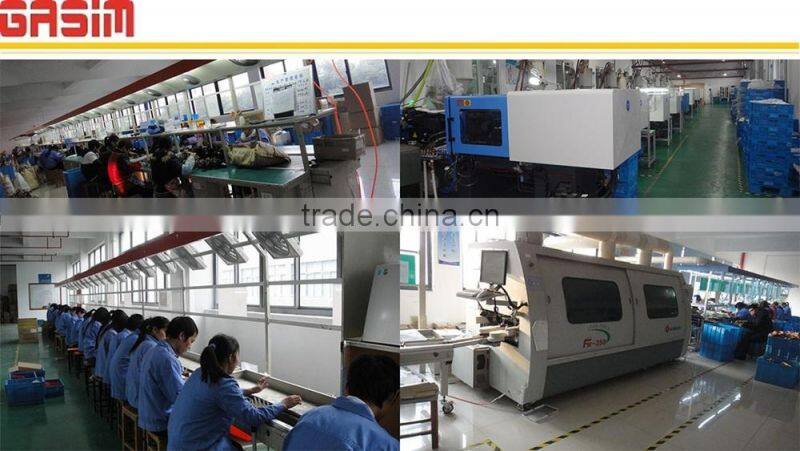

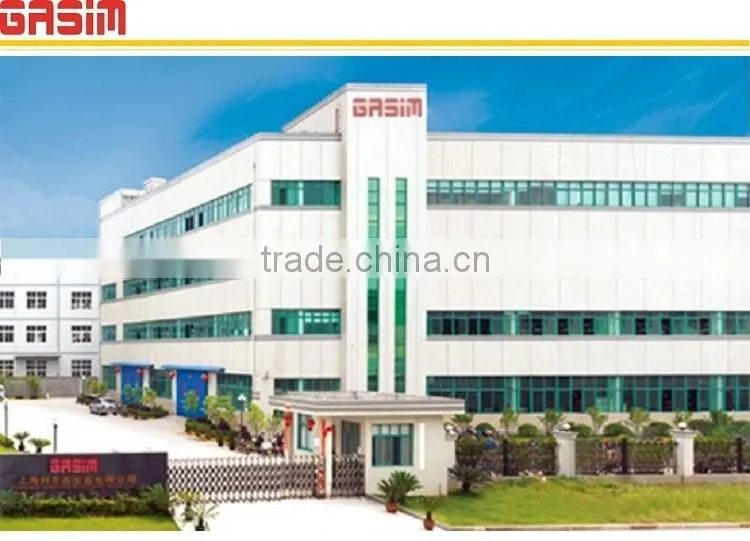

we are a manufacturer & exporter, we are sure that we can best support our customers with Sensor measuring body temperature sensor
Sensor measuring body temperature sensor
Sensor measuring body temperature sensor
The Sensor measuring body temperature sensor we professionally deal with are switching power supplies, sensors, relays, voltage stabilizers, AC contactors, circuit breakers, distribution boxes, industrial plugs & sockets and others.
(1)Warranty (24 months warranty)
1. The warranty starts from the delivery date from our factory;
2. During the warranty, any defective product will get repaired or replaced for free;
3. It is beyond the warranty as the products broken by the violence, the carelessness or repaired, altered without authorization.
(2)Lead Time
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Bulk orders will be delivered from our factory within 25 working days at most
(3)Shipment
1. By EMS, DHL, FedEx, TNT, UPS or other express.
2. By our forwarding agent (by air or by sea).
3. By your own forwarding agent.
4. By domestic forwarding agents to any city in China.
Sensor measuring body temperature sensor
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 5 days, mass production time needs 20-25 days for order less than 5000 pcs.
Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 200 pcs under neutral gift box; MOQ FOB is 1000pcs. MOQ for OEM is 2000PCS.
Q: 4. How do you ship the goods and how long does it take arrive?
A: for samples, we usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
For cargos, you can choose sea or airline service by your needs.
Q: 5. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, if the color and position are alright, we would make sampling first from silk print factory and take picture for your second confirmation before mass production.
Q: 6. Do you offer guarantee for the products?
A: Yes, we offer 3 years guarantee for the products.
Q: 7. Do you accept drop shipping?
A: Yes, it’s available.
