hot sell cylindrical fuse
- 200000 Piece / Pieces per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Shanghai, China | Brand Name: | GASIM | Model Number: | NH |
Usage: | Low Voltage | Breaking Capacity: | High | Safety Standards: | IEC |
Product Description
Specifications
cylindrical fuserated voltage :500V
rated breaking capacity:120kA
standard specifications:IEC 60629 EN 60629
Product introduction

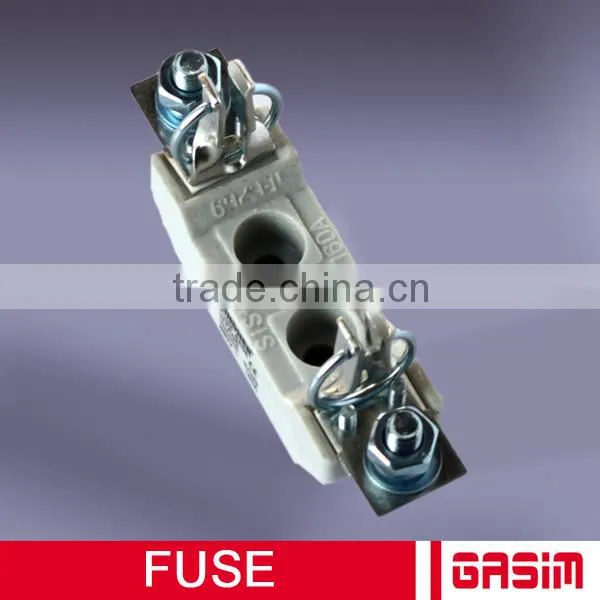

cylindrical fuse
NH low voltage H.RC cylindrical fuse features light in weight,small in size,low in power loss and high in breaking capacity.This product has been widely used in overload and short circuit protection of electric installation.This product conforms to IEC 60269 and EN 60629 standards with all of the world advanced level.
Product parametert
Type | NH00 | |
Rated current | A | 6,10,16,20,25,32,35,40,50,63,80,100,125,160 |
Rated voltage | V | 500 |
Rated breaking capacity | kA | 120 |
Rated power loss | W | 0.41,0.62,0.81,1.08,1.60,1.81,2.31,3.07,3.17,4.05,4.25,4.70,5.7,7 |
Weight | kg | 0.15 |
Standard specification | IEC 60269 EN 60269 | |
Class | Gg-gl |
Type | NH0 | |
Rated current | A | 16,20,25,32,35,40,50,63,80,100,125,160 |
Rated voltage | V | 500 |
Rated breaking capacity | kA | 120 |
Rated power loss | W | 0.67,0.89,1.14,1.65,1.94,2.50,3.32,3.56,4.30,4.5,4.6,6,7.3,7.6,9.6 |
Weight | kg | 0.2 |
Standard specification | IEC 60269 EN 60269 | |
Class | Gg-gl |
Type | NH1 | |
Rated current | A | 40,50,63,80,100,125,160,200,224,250, |
Rated voltage | V | 500 |
Rated breaking capacity | kA | 120 |
Rated power loss | W | 6.2,7.5,10.2,13,15.2,16.8,18.3 |
Weight | kg | 0.36 |
Standard specification | IEC 60269 EN 60269 | |
Class | Gg-gl |
Type | NH2 | |
Rated current | A | 125,200,224,250,315,355,400, |
Rated voltage | V | 500 |
Rated breaking capacity | kA | 120 |
Rated power loss | W | 9,11.5,15,16.6,18.4,21,19.2,24.5,26 |
Weight | kg | 0.65 |
Standard specification | IEC 60269 EN 60269 | |
Class | Gg-gl |
Type | NH3 | |
Rated current | A | 315,355,400,425,500,630 |
Rated voltage | V | 500 |
Rated breaking capacity | kA | 120 |
Rated power loss | W | 21.7,22.7,26.8,28.9,32,40.3 |
Weight | kg | 0.85 |
Standard specification | IEC 60269 EN 60269 | |
Class | Gg-gl |
Type | NH4 | |
Rated current | A | 630,800,1000,1250,1600 |
Rated voltage | V | 500 |
Rated breaking capacity | kA | 120 |
Rated power loss | W | 62,75 |
Weight | kg | 1.95 |
Standard specification | IEC 60269 EN 60269 | |
Class | Gg-gl |
Product show
standard export packing for cylindrical fuse
(1)Warranty ( 24 months warranty )
1. The warranty starts from the delivery date from our factory;
2. During the warranty, any defective product will get repaired or replaced for free ;
3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.
(2)Lead Time
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Bulk orders will be delivered from our factory within 25 working days at most
(3)Shippment
1. By EMS, DHL, FedEx, TNT, UPS or other express.
2. By our forwarding agent (by air or by sea).
3. By your own forwarding agent.
4. By domestic forwarding agents to any city in China
we are a manufacturer & exporter , we are sure that we can best support our customers with high quality products and the most competitive products .
Factory picture
Our markets
North America | No3 | Rated of buyer 12.5% |
South America | No4 | Rated of buyer 7.5% |
Europe | No2 | Rated of buyer 19.2% |
Asia | No1 | Rated of buyer 35.5% |
Africa | No5 | Rated of buyer 3.24% |
Certification :
Certified Picture | Certification Name | Certified By | Product Name & Model No. |
ISO9001:2000 | EACC, ANAB | Scope: Sales of Sales of electric appliances .For example: sensors, relays, voltage stabilizers, AC contactors circuit breakers, distribution boxes, industrial plugs & sockets,fuse and others . | |
CE | EPRE | Mini Circuit Breake&GSB6-63 and NT Low Voltage Fuse | |
ETL | ITS | Mini Circuit Breaker&GSL7-63 | |
GS | TUV | PIR CEILING LAMP&GSL3002B | |
SAA | SAA | Mini Circuit Breaker &N-7B | |
CE | EPRE | STANDALOE SENSOR&GSA001 |
