12v mini blade anl porcelain fuse holder
- 200000 Piece / Pieces per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Shanghai, China | Brand Name: | GASIM | Model Number: | STID&STI |
Usage: | Low Voltage | Breaking Capacity: | High | Safety Standards: | IEC |
Product Description
Specifications
anl fuse holderrated voltage :500/690V
rated breaking capacity:100kA
standard specifications:IEC 60629 NFC 63210
Product introduction
anl fuse holder
The fuses with fuse links having cylindrical contact caps are designed for protecting electrical distributing installations of rated voltage of 380 V AC,with rated current up to 125A against damage due to overload and short circuit current.
Fuse links with the striker are supplied for the purpose of protecting motors against motor single phasing operation when fitted in fuse isolators.
Product parameter
Type | STID-20(With lamp) | |
Rated current | A | 20 |
Rated voltage | V | 690 |
Weight | kg | 0.2, |
Poles | P | 1,1+N,2,3,3+N |
Standard specification | IEC 60269 NFC 63210 |
Type | STID-32(With lamp) | |
Rared current | A | 32 |
Rated voltage | V | 690 |
Poles | P | 1,1+N,2,2+N,3,3+N |
Weight | kg | 0.32 |
Standard specification | IEC 60269 NFC63210 |
Type | STID-63( With lamp) | |
Rated current | A | 63 |
Rated voltage | V | 690 |
Poles | P | 1,1+N,2,3,3+N |
Weight | kg | 0.5 |
Standard specification | IEC 60269 NFC63210 |
Type | STID-125( With lamp) | |
Rated current | A | 125 |
Rated voltage | V | 690 |
Poles | P | 1,1+N,2,3,3+N |
Weight | kg | 0.8 |
Standard specification | IEC 60269 NFC 63210 |
Type | STI-20( Without lamp) | |
Rated current | A | 20 |
Rated voltage | V | 690 |
Poles | P | 1,1+N,2,3,3+N |
Weight | kg | 0.2 |
Standard specification | IEC 60269 NFC 63210 |
Type | SIT-32( Without lamp) | |
Rated current | A | 32 |
Rated voltage | V | 690 |
Poles | P | 1,1+N,2,3,3+N |
Weight | kg | 0.32 |
Standard specification | IEC 60269 NFC63210 |
Type | SIT-63( Without lamp) | |
Rated current | A | 63 |
Rated voltage | V | 690 |
Poles | P | 1,1+N,2,3,3+N |
Weight | kg | 0.5 |
Standard specification | IEC 60269 NFC63210 |

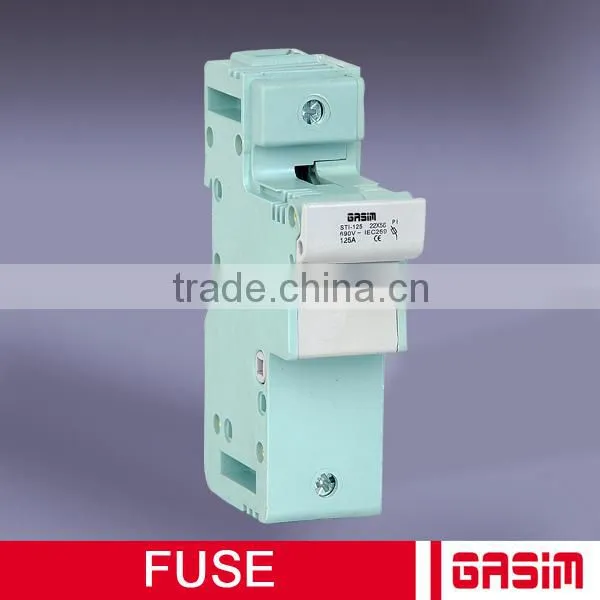

Type | SIT-125( Without lamp) | |
Rated current | A | 125 |
Rated voltage | V | 690 |
Poles | P | 1,1+N,2,3,3+N |
Weight | kg | 0.8 |
Standard specification | IEC 60269 NFC63210 |
Specification(Fuse link)
Dimension | Rated current(A) | Rated voltage(V) | L | Hamx | ØC |
mm | mm | ||||
8.5x31.5 gG-gl | 2,4,6,10,16,20 | 500 | 31.5± | 8.5 | 8.5±0.1 |
, | |||||
10x38 gG-gl | 2,4,6,10,16,20,5,32 | 500 | 33±0.6 | 10.5 | 10.3±0.1 |
14x51 gG-gl | 2,4,6,10,16,20,25,32,40,50,63 | 500 | 51± | 13.8 | 14.3±0.1 |
22x58 gG-gl | 10,16,20,5,32,40,50,63,80,100 | 500 | 58± | 16.2 | 22.2±0.1 |
30x58 gG-gl | 63,80,100,125 | 500 | 58± | 16.2 | 30±0.1 |
Product show
standard export packing for anl fuse holder
(1)Warranty ( 24 months warranty )
1. The warranty starts from the delivery date from our factory;
2. During the warranty, any defective product will get repaired or replaced for free ;
3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.
(2)Lead Time
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Bulk orders will be delivered from our factory within 25 working days at most
(3)Shippment
1. By EMS, DHL, FedEx, TNT, UPS or other express.
2. By our forwarding agent (by air or by sea).
3. By your own forwarding agent.
4. By domestic forwarding agents to any city in China
we are a manufacturer & exporter , we are sure that we can best support our customers with high quality products and the most competitive products .
Factory picture
Our markets
North America | No3 | Rated of buyer 12.5% |
South America | No4 | Rated of buyer 7.5% |
Europe | No2 | Rated of buyer 19.2% |
Asia | No1 | Rated of buyer 35.5% |
Africa | No5 | Rated of buyer 3.24% |
Certification :
Certified Picture | Certification Name | Certified By | Product Name & Model No. |
ISO9001:2000 | EACC, ANAB | Scope: Sales of Sales of electric appliances .For example: sensors, relays, voltage stabilizers, AC contactors circuit breakers, distribution boxes, industrial plugs & sockets,fuse and others . | |
CE | EPRE | Mini Circuit Breake&GSB6-63 and NT Low Voltage Fuse | |
ETL | ITS | Mini Circuit Breaker&GSL7-63 | |
GS | TUV | PIR CEILING LAMP&GSL3002B | |
SAA | SAA | Mini Circuit Breaker &N-7B | |
CE | EPRE | STANDALOE SENSOR&GSA001 |
