Specifications
LDPE Geo membrane Sheets1) Thickness:0.15-4.0mm
2) Eidth:1m-8m
3) Certificate:CE/ISO9001,14001
4) Long life,best price
LDPE Geo membrane Sheets :
1. Geomembrane specifications
1) Thickness : 0.15mm - 4.0mm.
2) Width : Within 8 m (1m-8m).
3) Length : 50m-100m/roll (as request).
4) Material : HDPE,( LDPE, LLDPE, PVC, EVA ).
5) Color : Black , white , red , blue , or as required.
6) Optional surface : Textued(one or two side) or smooth surface.
7) The biggest geomembrane liner manufacturer/factory in China for many years .
2. HDPE geomenbrane Features
Good mechanical properties, high tear strength, deformation and adaptable, puncture resistance, anti-aging, anti-ultraviolet-resistant, Anti oil and salt, pH, anti-corrosion, high temperature-resistant, non-toxic, long service life. water, drainage, seepage, the good effect of moisture, width, thickness of the full range of specifications and low cost, simple construction.
3. HDPE Geomembrane Applications
1) Environmental protection, sanitation (such as solid waste landfills, sewage treatment plants, power plants Chi-conditioning, industrial, hospital solid waste, etc.) .
2) Water (such as rivers, lakes and reservoirs of the anti-dam, plugging, reinforcement of the canal seepage, the vertical wall of the heart, slope protection, etc.).
3) Municipal Engineering (subway, on the ground floor of the building, planted roof, the roof garden of anti-seepage, sewage pipes lining, etc.).
4) Landscape (man-made lake, river, reservoir, golf courses reservoirs of the substrate, slope protection, green lawn of the waterproof moisture, etc.).
5) Petrochemical (chemical plants, oil refineries, gas storage tanks of the anti-chemical reaction tanks, sedimentation tanks of the lining, etc.).
6) Mining (washing and pool heap leaching, the ash-field, dissolved, precipitation, the yard, the tailings seepage substrates, etc.) .
4. HDPE geomembrane Technical Index
No. |
Item |
Test Value |
||||||
0.75mm |
1.0 mm |
1.25 mm |
1.5 mm |
2.0 mm |
2.5 mm |
3.0mm |
||
1 |
Minimum Density(g/cm³) |
0.939 |
||||||
|
2
|
Tensile Property |
|||||||
Strength at yield,N/mm |
11 |
15 |
18 |
22 |
29 |
37 |
44 |
|
Strength at break ,N/mm |
20 |
27 |
33 |
40 |
53 |
67 |
80 |
|
Elongation at yield,% |
12 |
|||||||
Elongation at break,% |
700 |
|||||||
3 |
Tear Resistance N |
93 |
125 |
156 |
187 |
249 |
311 |
374 |
4 |
Puncture Resistance N |
240 |
320 |
400 |
480 |
640 |
800 |
960 |
5 |
Stress Crack Resistance, hrs |
300 |
||||||
6 |
Carbon Black Content, % |
2.0-3.0 |
||||||
Carbon Black Dispersion |
1 or 2 |
|||||||
7 |
Standard OTI Min |
100 |
||||||
High Pressure OTI Min |
400 |
|||||||
8 |
Impact Cold Crack at -70°C |
Pass |
||||||
9 |
Water vapor permeability (g.cm/cm2 .s.Pa) |
≤1.0×10-13 |
||||||
10 |
Dimensional Stability (%) |
±2 |
||||||

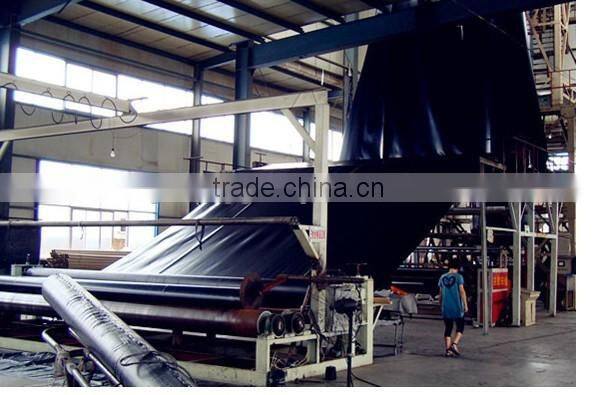

5. HDPE geomembrane Production lines
Sales manager : nana Ge , SKYPE : nana09092013
