Help CenterHot Sell 230V 4P Micro Circuit Breakers
Related Products
-
Hot Sell 4p C32n Mini Circuit Breaker McbUS$ 0.4 - 1MOQ: 1000 Pieces -
Hot Sell C32 Automatic Miniature Circuit Breaker/ Mcb Quality ChoiceUS$ 0.4 - 1MOQ: 1000 Pieces
-
Hot Sell Programmable C16 Miniature Circuit Breaker / McbUS$ 0.4 - 1MOQ: 1000 Pieces
-
3p Toko Mini Circuit Block BreakerUS$ 0.4 - 1MOQ: 1000 Pieces
-
63amp 2 Phase Miniature Circuit Breaker McbUS$ 0.4 - 1MOQ: 1000 Pieces
Specifications
micronumbers of poles1P 2P 3P 4P
rated breaking capacity:6kA
rated volage:230V;50/60HZ
micro
Product introduction

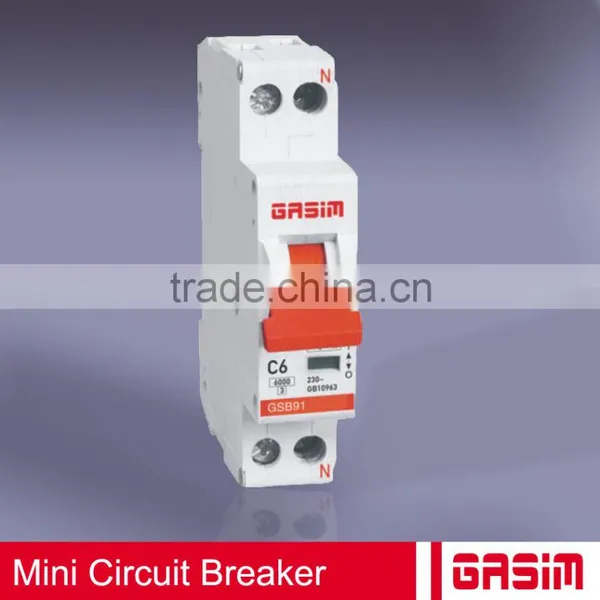

GSB91 micro circuit breaker is mainly used for protection against overload and short circuitunlder,rated voltage 230V,and rated current from 6A to 40A.Their high current limitation capability to realize the high selection.The products have high breaking capablity ,can reach 6KA.Also having accurate current tripping and setting.Free incoming-line direction of power supply.Small dimension and one modular quantity width .Different hand handle color indicates different rated current.
Product parametert
| Type | GSB91 |
| Number of poles | 1P 2P 3P 4P |
| Rated current(A) | 6 10 16 20 25 32 40 |
| Rated frequency | 50/60HZ |
| Rated voltage(V) | 230V |
| Rated breaking capcity(kA) | 6 |
| Max fuse than can be connectd to | 100A gl(>10KA) |
| Selection grade | 3 |
| Work enviromment temperature | -5 to +40°c |
| Case protection grade | IP40 |
| Electrical life | 8000 |
| The length of exposed plane | 45mm |
| Enclosure height | 80mm |
| Enclosure width | 17.5 mm(1P+N) |
| Moutily manner | The standard IEC 35mm rail |
| Terminal manner | Terminal connection of exaltation |
| Terminal block capacity | 1-16mm² |

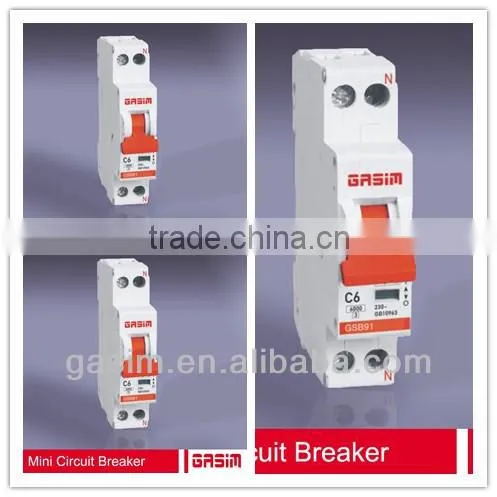

Product show
Product's advantage for micro
1.Our products have the guarantee period of 24 calendar months,that is a high quality and reliability;
2. The deliveries exactly in accordance with customer orders;
3. The fast transportation;
4. our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality.
5.GSB91 mini circuit breaker has high short-circuit breaking capacity,even can reach 6KA .
standard export packing for micro
(1)Warranty ( 24 months warranty )
1. The warranty starts from the delivery date from our factory;
2. During the warranty, any defective product will get repaired or replaced for free ;
3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.
(2)Lead Time
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Bulk orders will be delivered from our factory within 25 working days at most
(3)Shippment
1. By EMS, DHL, FedEx, TNT, UPS or other express.
2. By our forwarding agent (by air or by sea).
3. By your own forwarding agent.
4. By domestic forwarding agents to any city in China.
we are a manufacturer & exporter , we are sure that we can best support our customers with high quality products and perferential products.
Taking part in Canton fair
Our markets
| North America | No3 | Rated of buyer 12.5% |
| South America | No4 | Rated of buyer 7.5% |
| Europe | No2 | Rated of buyer 19.2% |
| Asia | No1 | Rated of buyer 35.5% |
| Africa | No5 | Rated of buyer 3.24% |
Certification :
| Certified Picture | Certification Name | Certified By | Product Name & Model No. |
|
ISO9001:2000 | EACC, ANAB | Scope: Sales of Sales of electric appliances .For example: sensors, relays, voltage stabilizers, AC contactors circuit breakers, distribution boxes, industrial plugs & sockets and others . |
|
|
CE |
EPRE |
Mini Circuit Breake&GSB6-63 |
|
|
ETL | ITS | Mini Circuit Breaker&GSL7-63 |
|
GS | TUV | PIR CEILING LAMP&GSL3002B |
|
SAA | SAA | Mini Circuit Breaker &N-7B |
|
CE | EPRE | STANDALOE SENSOR&GSA001 |
