Help CenterHot Sell 4p C32n Mini Circuit Breaker Mcb
Related Products
-
Hot Sell C32 Automatic Miniature Circuit Breaker/ Mcb Quality ChoiceUS$ 0.4 - 1MOQ: 1000 Pieces -
Hot Sell Programmable C16 Miniature Circuit Breaker / McbUS$ 0.4 - 1MOQ: 1000 Pieces
-
3p Toko Mini Circuit Block BreakerUS$ 0.4 - 1MOQ: 1000 Pieces
-
63amp 2 Phase Miniature Circuit Breaker McbUS$ 0.4 - 1MOQ: 1000 Pieces
-
Hot Sell 63a 4p Miniature Circuit Breaker McbUS$ 0.4 - 1MOQ: 1000 Pieces
Specifications
c32n circuit breakerrated voltage:230/400v
numbers of poles:1P 2P 3P 4P
rated breaking capacity: 6000 10000A
c32n circuit breaker
Product introduction
GSB7-63 c32n circuit breaker is mainly used for protection against overload and short circuitunlder,they used as main switch in the industral ,business or civill electric circuit.The rated voltage 230V/400V,and rated current from 1A to 63A.Their high current limitation capability to realize the high selection.They compliance with IEC/EN60898-1.They also can in switch panels,railway and marine application.
Product parametert
| Type | GSB7-63 |
| Number of poles | 1P 2P 3P 4P |
| Rated current(A) | 1 2 3 4 6 10 20 25 32 40 50 63 |
| Rated frequency | 50/60HZ |
| Rated voltage(V) | 230V/400V |
| Rated breaking capacity(A) | 6000 10000 |
| Rated impulse witstand voltge | 8000v |
| Themo-magnetic release characteristic | B C D |
| Electrical life | 6000 |
| Terminal connection type(°c) | Cable/U-type busbar /Pin-type busbar |
| Terminal size top/bottom for cable mm² | 25 |
| AWG | 18-3 |
| Connecting | From top to bottom |

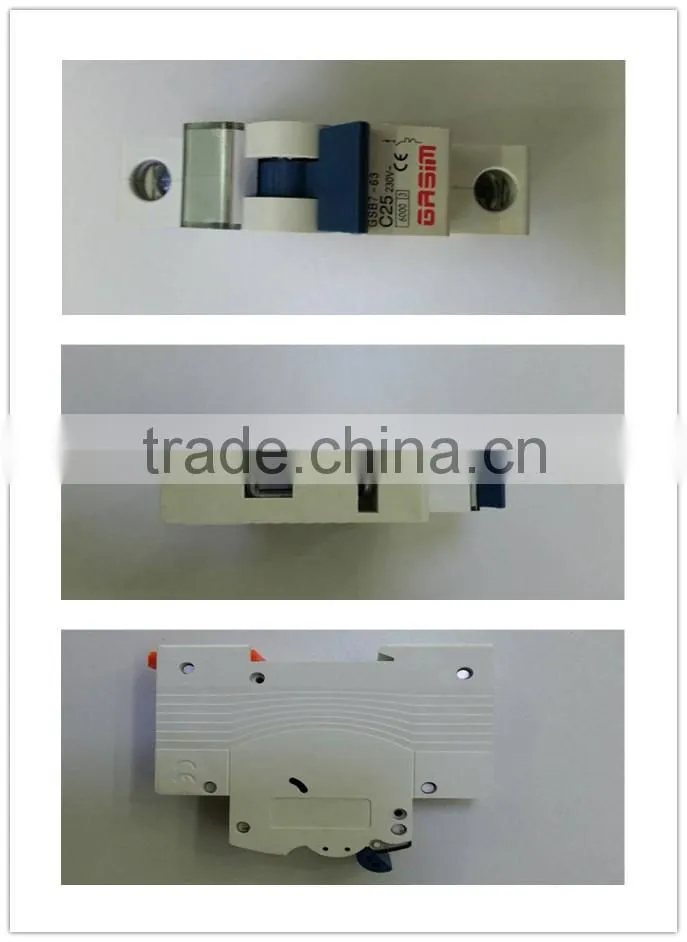

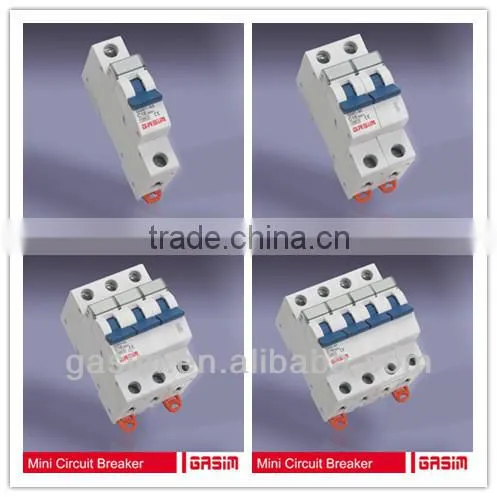

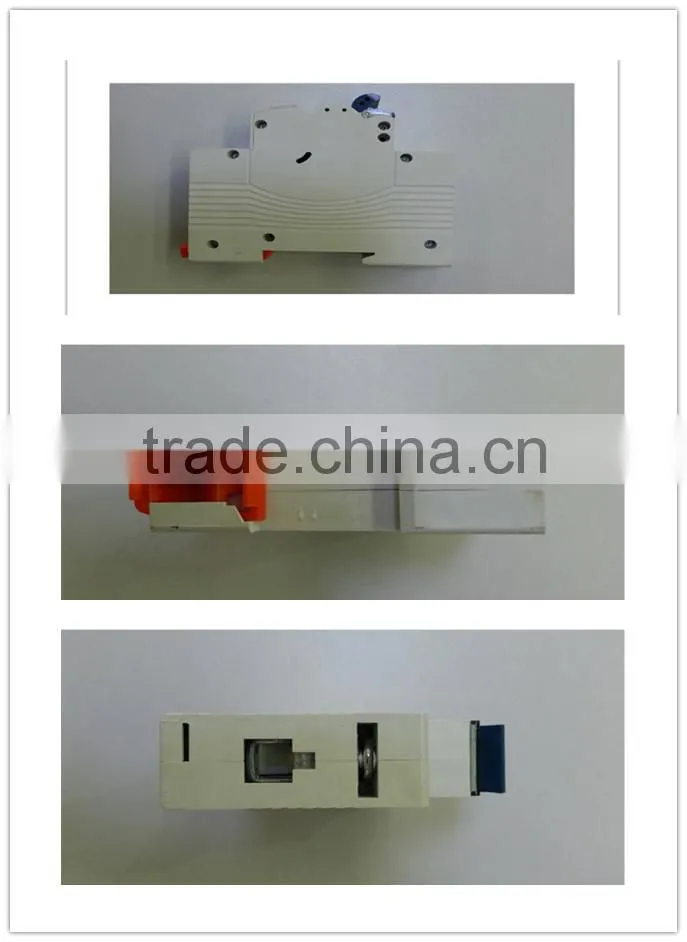

Product show
standard export packing for c32n circuit breaker
The products we professionally deal with are switching mini circuit breaker, having high quality.They also all compliance with IEC.Our products are adequate,can timely delivery,and our delivery is fast. The arrival of the goods within a week in China,and arrival of the goods within 30 days in a foreign country.
Our company with domestic and foreign many express companies to establish relations of cooperation,and high repulation in the line.
We provide two years guarantee for all of our products.

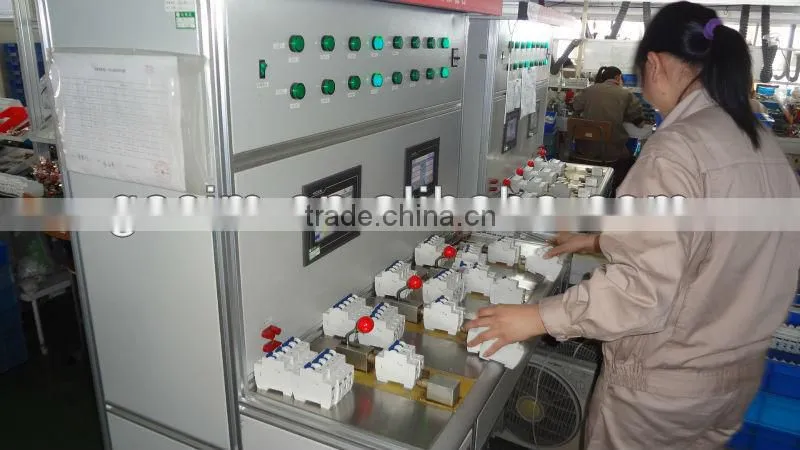

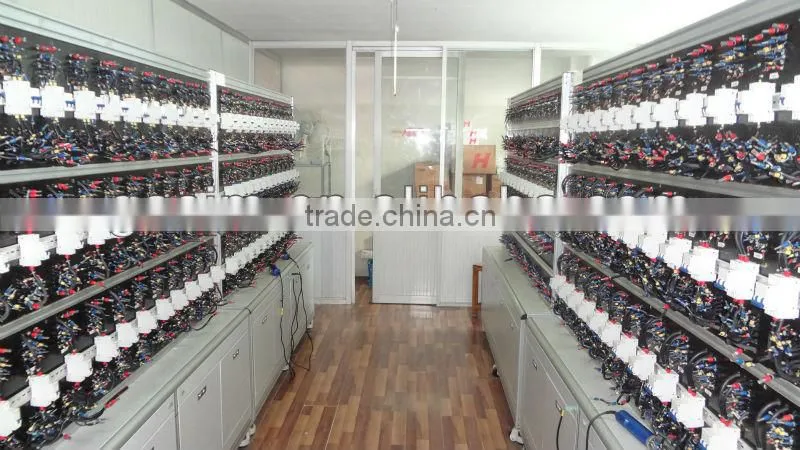

Our factory
we are a manufacturer & exporter , we are sure that we can best support our customers with high quality products and perferential products.
Taking part in Canton fair
Our markets
| North America | No3 | Rated of buyer 12.5% |
| South America | No4 | Rated of buyer 7.5% |
| Europe | No2 | Rated of buyer 19.2% |
| Asia | No1 | Rated of buyer 35.5% |
| Africa | No5 | Rated of buyer 3.24% |
Certification :
| Certified Picture | Certification Name | Certified By | Product Name & Model No. |
|
ISO9001:2000 | EACC, ANAB | Scope: Sales of Sales of electric appliances .For example: sensors, relays, voltage stabilizers, AC contactors circuit breakers, distribution boxes, industrial plugs & sockets and others . |
|
|
CE |
EPRE |
Mini Circuit Breake&GSB6-63 |
|
|
ETL | ITS | Mini Circuit Breaker&GSL7-63 |
|
GS | TUV | PIR CEILING LAMP&GSL3002B |
|
SAA | SAA | Mini Circuit Breaker &N-7B |
|
CE | EPRE | STANDALOE SENSOR&GSA001 |
