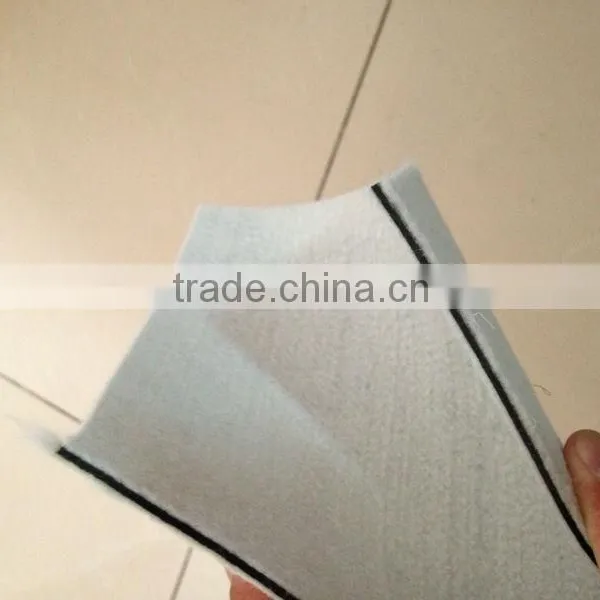

hdpe geomembrane with nonwoven geotextile
1. specifications
1) One layer geotextile and one layer membrane ; Weight of base geotextile : 100g/m2-1000gm2 ; Thickness of geomembrane :0.1mm-1.5mm .
2) Two layers geotextile and one layer membrane ; Weight of base geotextile : 80g/m2-600gm2 ; Thickness of geomembrane :0.2mm-1.5mm .
3) One layer geotextile and two layers membrane ; Weight of base geotextile : 100g/m2-1000gm2 ; Thickness of geomembrane :0.1mm-0.8mm .
4) Multi-layers : Weight of base geotextile : 100g/m2-1000gm2 ; Thickness of geomembrane :0.1mm-1.5mm .
5) Width : 1m-8m
6) Length : 50m-100m (or as your request)
2. Properties
Flexibility is good , except of a geotextile's isolation , drainage , reinforcement , protective functiona , it is also impermeable .
3. Usages
Widely used in dam , traffic tunnel , road, airport , drainage , housing , environmental protection and many other fields for waterproof pretextion , reinaforcement etc .
4. technical index
No. |
Item |
Value |
|||||||
2 |
Nominal breaking strength(MD/CD),KN/m |
5 |
7.5 |
10 |
12 |
14 |
16 |
18 |
20 |
3 |
Break Elongation,% |
30-100 |
|||||||
4 |
CBR Mullen Burst strength,KN |
1.1 |
1.5 |
1.9 |
2.2 |
2.5 |
2.8 |
3.0 |
3.2 |
Tear strength,KN |
0.15 |
0.25 |
0.32 |
0.40 |
0.48 |
0.56 |
0.62 |
0.70 |
|
6 |
Peel strength,N/cm |
6 |
|||||||
5. Production lines
