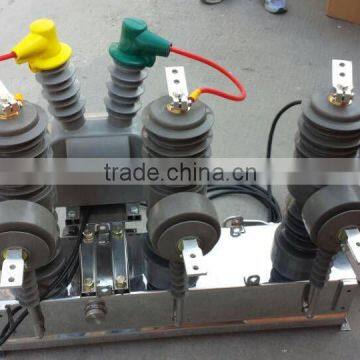

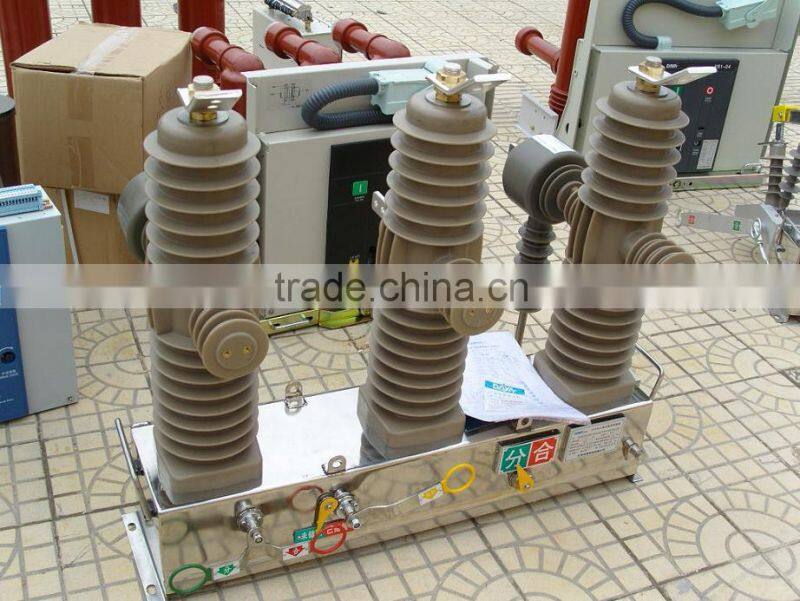

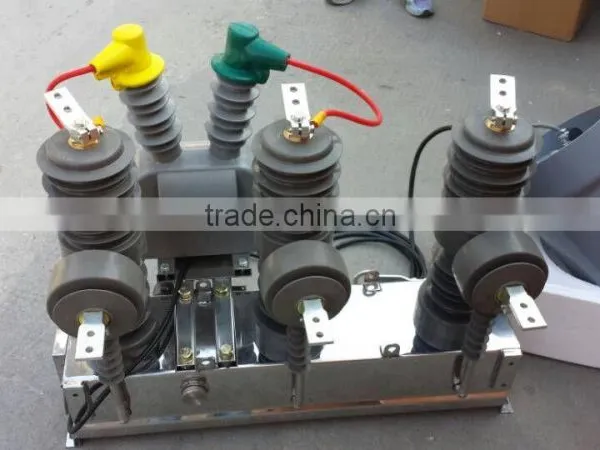

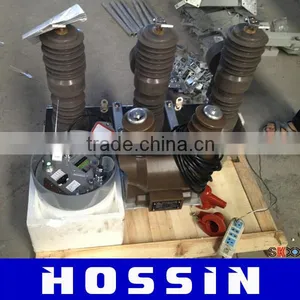

10KV 11KV 12KV 24KV 33KV outdoor HV High Voltage VCB automatic recloser

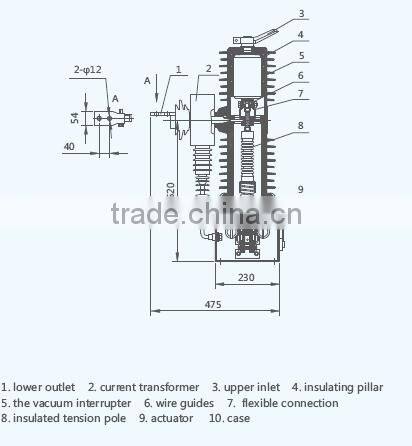

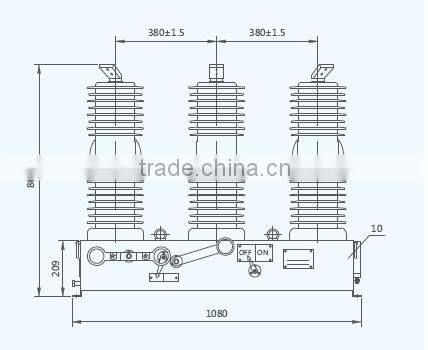

ZW32-24 type outdoor H.V. vacuum circuit breaker (Hereinafter referred to as the
circuit breaker) is outdoor distribution equipment with rated voltage 24KV, three
phase AC 50Hz. It is mainly used for breaking and closing the load current, overload
current and short circuit current of power system. Applied to substation and
industrial and mining enterprises in power system for protection and control use,
more suitable for rural power grid and the frequent operation place.
The installation instructions provided content of circuit breaker references, the using
condition, type and rated parameters, structure characteristics, working principle,
order information, and operation, installation, use, maintenance principle and method etc.
Working Conditions
1.Ambient air temperature:
The daily temperature variation: -40℃ ~+40℃ diurnal variation of temperature
less than 25℃;
2.Altitude: no more than 2000 meters
3.Wind speed is no more than 35m/s (equivalent to 700Pa on the surface of the
cylindrical);
4.Ice cover thickness no more than 10mm;
5.The intensity of sunshine not more than 1000W/m ²
6.Pollution grade no more than GB 5582 IV class
7.Seismic intensity does not exceed 8 class
8.No flammable, explosive, chemical corrosion and severe vibration place
9.If the conditions of use are in excess of the above provisions, shall be determined
by the user and the manufacturing plant.
No. |
Item |
Unit |
Parameters |
1 |
rated voltage |
kV |
24 |
2 |
rated frequency |
Hz |
50/60 |
3 |
rated current |
A |
630/1250/1600 |
4 |
rated short-circuit breaking current |
kA |
20/25/31.5 |
5 |
rated peak value withstand current(peak) |
kA |
50/63/80 |
6 |
rated short time withstand current |
kA |
20 |
7 |
rated short-circuit closing current (peak) |
kA |
50/63/80 |
8 |
mechanical life |
Times |
10000 |
9 |
rated short-circuit breaking current breaking number |
Times |
30 |
10 |
power frequency withstand voltages(wet) (dry) inter-phase ,earth, fracture |
kV |
65/79 |
11 |
Lightning impulse withstand voltage (peak) inter-phase ,earth, fracture |
kV |
125/145 |
12 |
Secondary circuit 1min power frequency voltages |
kV |
2 |
1.Over 20 years of manufacturing experience with good quality & stable product performance.
2. Hossin provides full line of MV-HV electrical products, including drop-out fuse, disconnector, surge arrester, vacuum circuit breaker, fuse, load switch, insulator etc.
3. Quick feedback, Timely quotation, Fast delivery
4. Complete set of testing machine to ensure product quality.
5. Hossin can customize non-standard product as per client’s requirement.
6. Hossin sells pressing parts& pressing mould at low price.
7. Hossin offers electrical installation & commission service.
