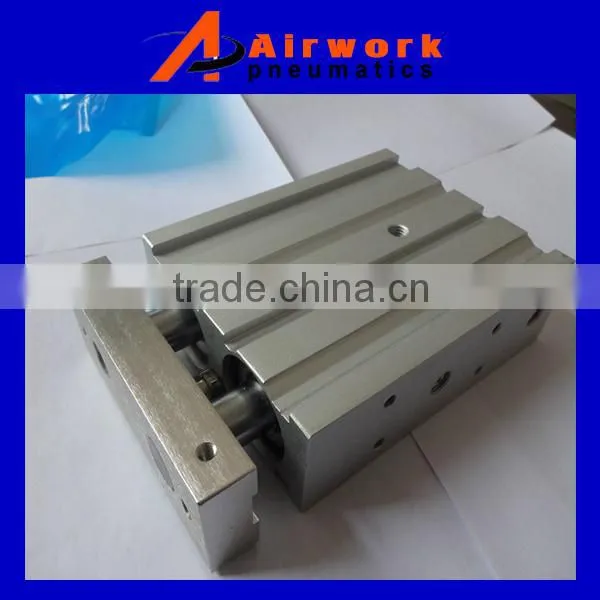

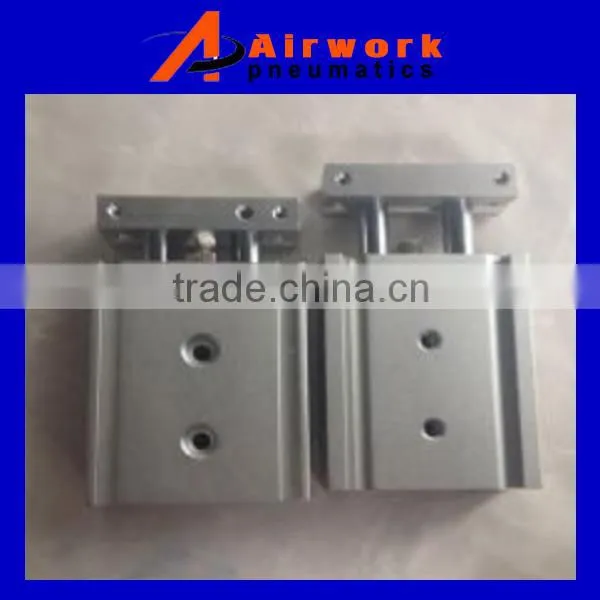

CXS standard cylinder standard Air cylinder pneumatic cylinder
Production characteristics
Not require lubrication
Taking oily powder smelting copper as bearing of axle
center, which makes adding lubrication oil onto piston rod
unnecessary.
Buffering
Besides fixed buffer, the cylinder terminal has adjustable
buffer, so that the cylinder enters into stably without impact
during commutating.
High temperature resisting quality
Able to adopt high temp resisting sealing material, so as to
o make cylinder work normally in case of 150 C (customer
needs to have it made to order).
Installation mode varied
Variety of installation modes provided for selection by
customer.
Magnetic property
The cylinder piston is equipped with a permanent magnet
that can trigger the magnetic switch of the cylinder to
detect the moving posittion of cylinder

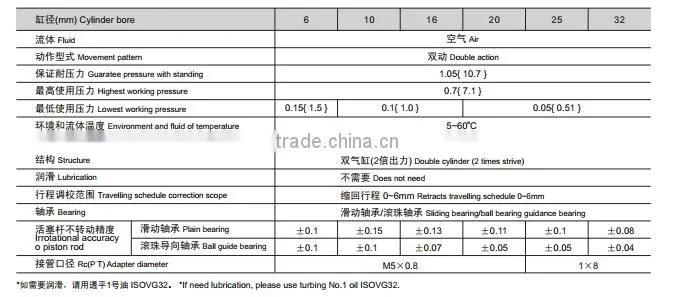

Specification
Ordering Code

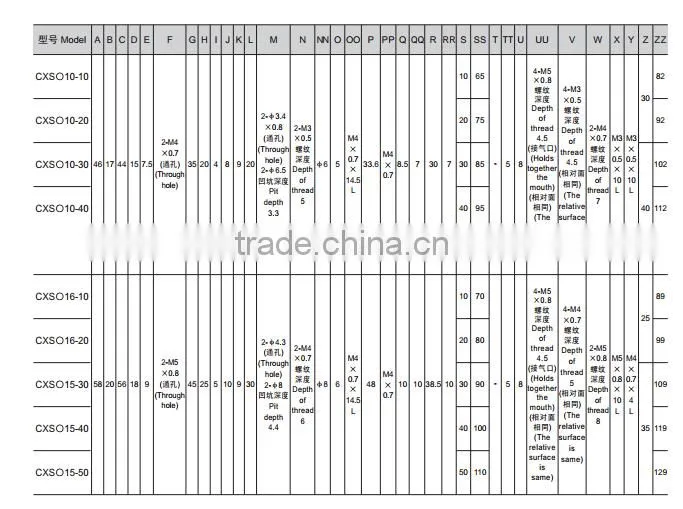

Basic size
