Home > Electrical & Electronics > Switch > Other Switches > 15KV-36KV FZRN21-24KV FZRN21-35KV FZRN21-40.5KV 33kv Indoor HV Vacuum Switches

15KV-36KV FZRN21-24KV FZRN21-35KV FZRN21-40.5KV 33kv Indoor HV Vacuum Switches

Name: 15KV-36KV FZRN21-24KV FZRN21-35KV FZRN21-40.5KV 33kv Indoor HV Vacuum Switches
Brand: HOSSIN
SKU: 101631053
Availability: InStock

15KV-36KV FZRN21-24KV FZRN21-35KV FZRN21-40.5KV 33kv Indoor HV Vacuum Switches thumbnail-1

15KV-36KV FZRN21-24KV FZRN21-35KV FZRN21-40.5KV 33kv Indoor HV Vacuum Switches thumbnail-2

15KV-36KV FZRN21-24KV FZRN21-35KV FZRN21-40.5KV 33kv Indoor HV Vacuum Switches photo-1

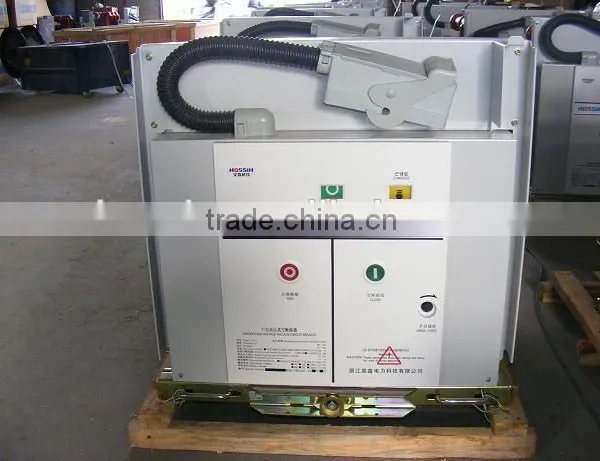

15KV-36KV FZRN21-24KV FZRN21-35KV FZRN21-40.5KV 33kv Indoor HV Vacuum Switches photo-2

US$ 70 - 10,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

HOSSIN

Model Number:

FZRN-12 FZRN-24 FZRN-40.5

Contact Supplier Request Quote Chat Now

Yueqing Hossin Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name HOSSIN

Model Number FZRN-12 FZRN-24 FZRN-40.5

Max. Current 630A

Max. Voltage 15KV-40.5KV

15KV-36KV FZRN21-24KV FZRN21-35KV FZRN21-40.5KV 33kv indoor HV Vacuum Switches

No	Item		Unit	Value
1	Rated voltage		kV	12
2	Rated frequency		Hz	50
3	Rated current		A	630	125
4	Rated insulation level	1min power frequency withstand voltage	kV	Arc-quenching chamber fracture 48
		(effective value)		Earth , phase 42, insulating fracture 48
		Lightning impulse withstand voltage (peak)		Earth , phase 75, insulating fracture 85
5	Rated dynamic current (peak)		kA	50
6	4S thermal current		kA	20
7	Rated power load breaking current		A	630
8	Rated closed-loop breaking current		A	630
9	Rated cable charge breaking current		A	10
10	Rated breaking no-load transformer capacity		KVA	1250
11	Rated breaking AC current		A	3150
12	Rated short-circuit closed current		kA	50
13	Rated current breaking times		times	2000
14	Mechanical life		times	10000
15	Permitted wear-thickness of vacuum arc-quenching chamber contact		mm	2
16	Manual operating torque		Nm	>200

Our Advantages
(1)Over 20 years of manufacturing experience with good quality & stable product performance.
(2)Hossin provides full line of MV-HV electrical products, including drop-out fuse, disconnector, surge arrester, vacuum circuit breaker, fuse, load switch, insulator etc.
(3)Quick feedback, Timely quotation, Fast delivery
(4)Complete set of testing machine to ensure product quality.
(5)Hossin can customize non-standard product as per client’s requirement.
(6)Hossin sells pressing parts& pressing mould at low price.
(7)Hossin offers electrical installation & commission service.
