Polymer 132kv 110KV Surge Arrester Silicone Rubber Arrester

Name: Polymer 132kv 110KV Surge Arrester Silicone Rubber Arrester
Brand: HOSSIN
SKU: 101630477
Availability: InStock

Polymer 132kv 110KV Surge Arrester Silicone Rubber Arrester thumbnail-1

Polymer 132kv 110KV Surge Arrester Silicone Rubber Arrester thumbnail-2

Polymer 132kv 110KV Surge Arrester Silicone Rubber Arrester photo-1

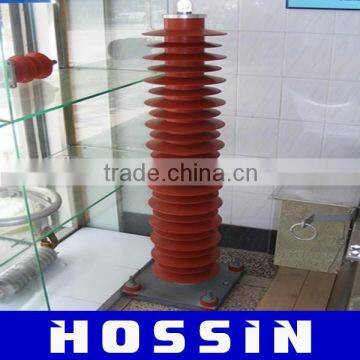

Polymer 132kv 110KV Surge Arrester Silicone Rubber Arrester photo-2

US$ 500 - 999,999 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

HOSSIN

Model Number:

110KV 145KV 126KV 220KV

Contact Supplier Request Quote Chat Now

Yueqing Hossin Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name HOSSIN

Model Number 110KV 145KV 126KV 220KV

Polymer 132kv 110KV surge arrester Silicone rubber arrester

Product Overviews

The zinc oxide arrester is the most advanced over-voltage protector in the world, Due to make the risistor disc of core componet mainly adopt zine oxide arrester. Compared with the conventional silicon carbide arrester, this presciption of the product improves gr-eatly the volt-Ampere characterisics of the resistor disc and increased through-current capability at over-voltage so as to dring a rad-ical changes for the characteristics of the arresters.

Under the circumstance of normal operating voltage, the current through the arrester is just on microampere degree, When suff-ered from over-voltage, the arrester's excellent nonlinear characteristics will make the current through the
arrester incrase to several thousand amperse, while the arrester will be under the circulating state and release over-voltage energy so as to protecting the power transmission equipments against the demage caused by th over-voltage.

Working Conditions

1.The ambient air temperatures is no higher than +40°C,nolower than -40°C;
2.The altitude above sea level dose not exceed 1000-2000m(the plateau ares should be indicated when order);
3.AC systen frequency is 50Hz or 60Hz;
4.Power i frequency voltage brought to bear on arrester for a long time does not exceed arrester's continuous operation voltage;
5.Maximum wind speed does not exceed 35m/s;
6.The earthquake intensity does not exceed 7 degrees;
7.The filthy area should be given clear indication.

Specification

The zinc oxide arrester applies to protect the electrical equimpent in AC power system against the damage resulted from atmospheres over-voltage and operational over-voltage.

The technical performance of the product is conformit to GB11032-2000, IEC60099- 4,IEEE.C62.11 standard thchnic requirements.

Type	Rated Voltage KV(rms)	MCOV KV(rms)	Current impulse Residual Voltage			2ms rectangular current impusle withstand KV(crest)	4/10μs Hight current i mpulse withstand KV(crest)
Type	Rated Voltage KV(rms)	MCOV KV(rms)	1/4 μs Lighting current impulse KV(crest)	8/20 μs Lighting current impulse KV(crest)	30/60μs Switching current impulse KV(crest)	2ms rectangular current impusle withstand KV(crest)	4/10μs Hight current i mpulse withstand KV(crest)
HY5W-3	3	2.55	11.3	9	8.9	150	65
HY5W-6	6	5.1	22.6	18	10.8	150	65
HY5W-9	9	7.65	33.7	27	23.8	150	65
HY5W-10	10	8.4	36	30	23	150	65
HY5W-11	11	9.4	40	33	30	150	65
HY5W-12	12	10.2	42.2	36	27	150	65
HY5W-15	15	12.7	51	45	38.5	150	65
HY5W-18	18	15.3	61.5	54	46.2	150	65
HY5W-21	21	17	71.8	63	54.2	150	65
HY5W-24	24	19.5	62	72	62	150	65
HY5W-27	27	22	92	81	69.8	150	65
HY5W-30	30	24.4	102	90	79	150	65
HY5W-33	33	27.5	112	99	86.7	150	65
HY5W-36	36	29	123	108	92.4	150	65
HY10W-3	3	2.55	11.3	9	8.9	250	100
HY10W-6	6	5.1	22.6	18	10.8	250	100
HY10W-9	9	7.65	33.7	27	23.8	250	100
HY10W-10	10	8.4	36	30	23	250	100
HY10W-11	11	9.4	40	33	30	250	100
HY10W-12	12	10.2	42.2	36	27	250	100
HY10W-15	15	12.7	51	45	38.5	250	100
HY10W-18	18	15.3	61.5	54	46.2	250	100
HY10W-21	21	17	71.8	63	54.2	250	100
HY10W-24	24	19.5	62	72	62	250	100
HY10W-27	27	22	92	81	69.8	250	100
HY10W-30	30	24.4	102	90	79	250	100
HY10W-33	33	27.5	112	99	86.7	250	100
HY10W-36	36	29	123	108	92.4	250	100
