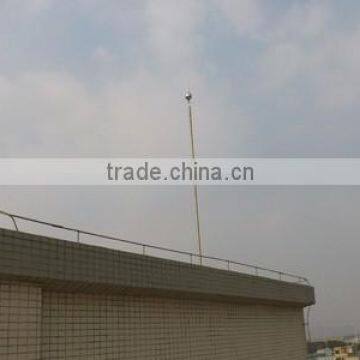

Early Streamer Emission lightning rod SATELIT + ESE2500, Lightning arrester, Lightning conductor
The role of the lightning conductors is to capture lightning to flow it into the ground by down conductors.
Simple rod, with sharp, steel points, derived from earlier designs.
They provide protection for small structures.
While Early Streamer Emission (ESE), a development of simple rod, but
in which the efficiency is enhanced by using a device generated High voltage pulses to create a corona/effect. This reduces meeting time between the upward and the downward leaders and makes designs suitable for much larger structures.
Features:
1. Superior performance:
2. Offer a wider protection range than ordinary simple rod under the same conditions(altitude)
3. More accurate lightning, reducing the probability of lightning hitting non- lightning rod body
4. Lower flash voltage than simple rod
5. Safe and reliable: no radioactive elements, stainless steel, corrosion resistance, wind resistance
6. Maintenance-free: Passive, no power, no energy-consuming element
Simple installation: light weight, without the need of install shielded coaxial cable
7. Attractive appearance
Application:
Large public facilities (universities, hospitals, sports arenas, gas stations, highways, government offices, office buildings), buildings (high-rise residential, villas, farms, grain), military installations (radar stations, barracks, missile sites, military camps warehouse ), historic buildings, industrial facilities (factories and mines, dangerous goods warehouse, substation), telecommunication (communication base stations, radio tower, microwave stations)
Model |
ESE Time |
ESE2500 |
25 microsecond |
ESE4500 |
45 microsecond |
ESE6000 |
60 microsecond |
The radius of protection (Rp) classified by level of protection | ||||||||||
ESE Lightning Rod |
height of the lightning rod tip above the area to protect(m) |
|||||||||
2 |
3 |
4 |
5 |
6 |
10 |
15 |
20 |
45 |
60 |
|
Level 1 lightning protection building | ||||||||||
ESE2500 |
20 |
29 |
39 |
49 |
50 |
51 |
53 |
55 |
|
|
ESE4500 |
28 |
42 |
57 |
70 |
71 |
72 |
73 |
75 |
|
|
ESE6000 |
35 |
52 |
69 |
86 |
87 |
88 |
89 |
90 |
|
|
Level 2 lightning protection building | ||||||||||
ESE2500 |
23 |
34 |
46 |
57 |
59 |
61 |
63 |
68 |
70 |
|
ESE4500 |
32 |
48 |
65 |
81 |
82 |
83 |
85 |
89 |
90 |
|
ESE6000 |
39 |
58 |
78 |
97 |
98 |
99 |
101 |
104 |
105 |
|
Level 3 lightning protection building | ||||||||||
ESE2500 |
26 |
39 |
52 |
65 |
66 |
69 |
72 |
79 |
84 |
85 |
ESE4500 |
36 |
54 |
72 |
89 |
91 |
92 |
95 |
101 |
104 |
105 |
ESE6000 |
43 |
64 |
85 |
107 |
108 |
109 |
111 |
116 |
119 |
120 |
With Rp= radius of protection
H=height of the Satelit TM+G2 tip above the area to protect
-20m in level 1 (severe protection)
-30m in level 2 (reinforced protection)
-45m in level 3 (average protection)
-60m in level 4 (standard protection)
