Specifications
318D Die board laser cutting machine special for die maker cut die board, 18mm plywood, also can cut acrylic, PVC, Metal sheet.

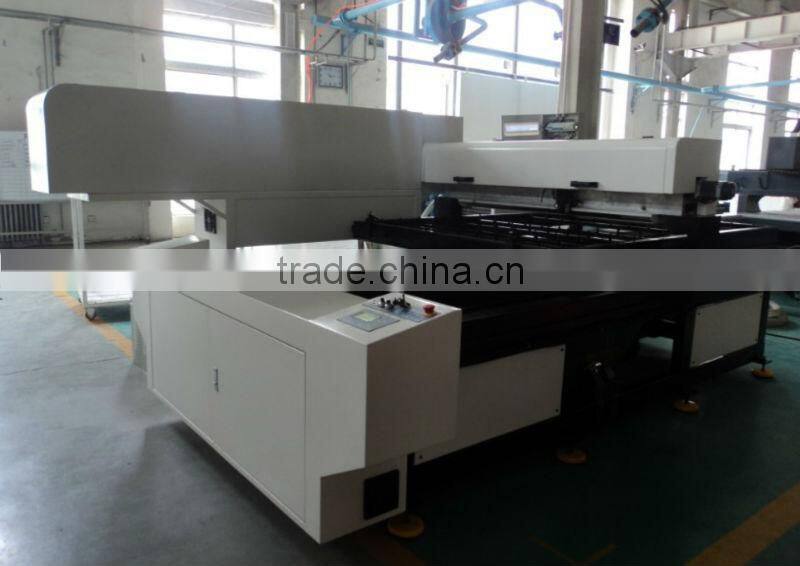

418CD/318D Die board laser cutting machine
Model: 418CD/318D

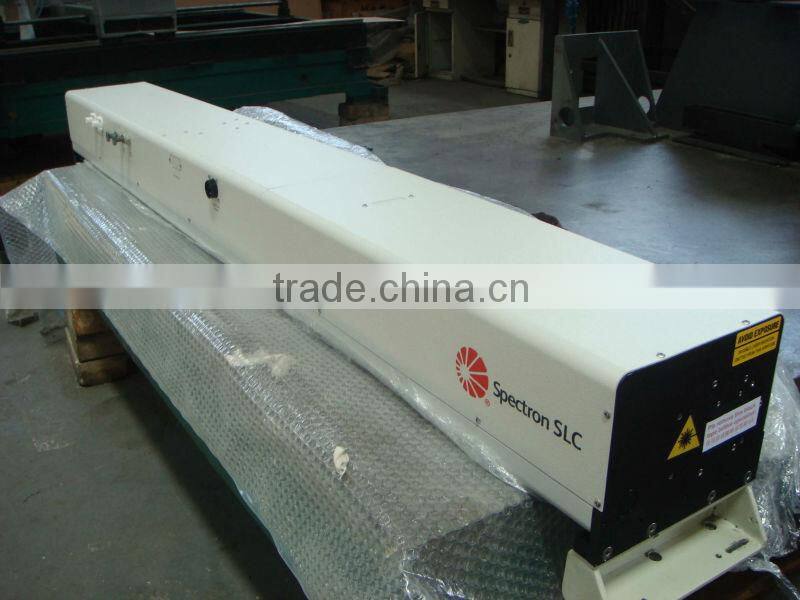

Laser Source: 400W Chinese laser /300W UK GSI laser
Worktable Size: 1250mm*1850mm

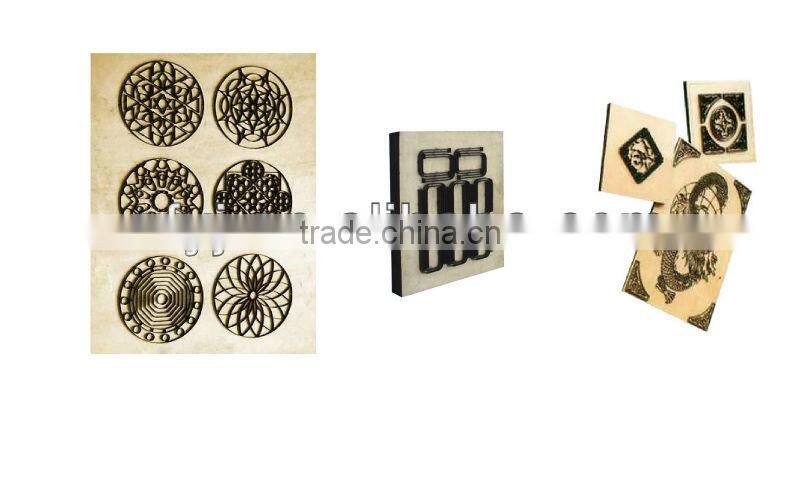

Cutting Capacity: Die-board (plywood) 18-20mm, MDF, Acrylic, Thin metal sheet.
1. Characteristics
lMachine chooses high quality 400W DC excited CO2 laser tube or 300W UK GSI tube.
lStrict lathe bed heat treatment process and scientific machine tools assemble ensure
machine excellent performance and longevity.
l3 axles servo drive system and ballscrew & guide rail transmission systemmake sure
the best cutting accuracy.
lSpecial optical path compensation technology and protection system ensure laser cutting kept
consistency in the whole working area.
lSpecial laser dedicated cooling system, effectively extending the life of laser working.
lIndependent pumping smoke exhaust system makes the equipment achieved an unexpected
effect in fumes discharging.
lOpen can use, no start machine fare, low consumption
2. Parameters
No. |
Name |
Specification |
1 |
Model |
418CD/318D |
2 |
Laser output power |
400W / 300W |
3 |
X-axis travel-length |
1250mm |
4 |
Y-axis travel-length |
1850mm |
5 |
Positioning Precision |
±0.05mm/m |
6 |
Max. speed of positioning |
10m/min |
7 |
Driving system |
3 Axial imported servo |
8 |
Transmission system |
Ball screw & Linear guide |
9 |
Controlling system |
Off-line control card/NC |
10 |
Optical system |
Mixed-optical |
11 |
Moving structure |
Gantry |
12 |
Overall dimensions (L×W×H) |
3500mm×2200mm×1300mm |
13 |
Weight |
1500KG |
14 |
Power supply |
220V /50HZ/30A |
Die-board laser cutting machine and Auto bender machine catalogue | |||
Cat. |
Model |
Laser source |
Worktable size |
1 |
412CD |
400W Chinese laser tube |
1250x1250mm |
2 |
418CD |
1250x1850mm |
|
3 |
425CD |
1250x2500mm |
|
4 |
312D |
300W UK GSI laser tube |
1250x1250mm |
5 |
318D |
1250x1850mm |
|
6 |
325D |
1250x2500mm |
|
7 |
309D |
300W UK GSI laser tube |
900X600mm |
8 |
310D |
1000x1000mm |
|
9 |
1018D |
1000W Axial fast flow generator |
1250x1850mm |
10 |
1025D |
1250x2500mm |
|
11 |
1518D |
1500W Axial fast flow generator |
1250x1850mm |
12 |
1525D |
1250x2500mm |
|
13 |
Die cutting rules Auto bender machine |
||
