Help Center1.5MM Stainless Laser Cutting Machine
Related Products
-
1212 1225 150W 260W 1250X1250MM 1250X2500MM Metal & Non-metal Laser CutterUS$ 10,000 - 20,000MOQ: 1 Set -
Laser Cutting MachineNegotiableMOQ: 1 Set
-
LA POWER Metal & Non Metal Multifunctional Laser Cutting MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
400W Synrad RF Laser 1250X2500mm Metal Laser Cutting MachineNegotiableMOQ: 1 Set
-
400W 1250X2500mm Metal Laser Cutting MachineNegotiableMOQ: 1 Set
SLCM-1325 Specification
Item |
Specificaiton |
Qty. |
Remarks |
Processing length |
X-1250mm,Y-2500mm,Z-60mm |
1 Set |
|
Laser source |
260W |
1 Set |
|
|
Ball screw transmission system
|
Positioning Precision ±0.05mm
|
3 Set |
X/Y/Z axle from Taiwan |
Servo motor driving system |
|
3 Set |
X/Y/Z from Japan |
Auto following system |
Metal cutting special auto following system |
1 Set |
Automatically adapts to uneven surface |
Integration control panel |
Air/E-stop/Test/Start/Pause etc switch integration |
1 Set |
Directly control lathe bed movement |
Mirrors |
Reflect mirror and Focus lens |
1 Set |
Can directly wiping clean and replace easy |
Chiller |
Low noise, low consumption, comprehensive monitoring function |
1 Set |
Special water cooling system for laser |
Control system |
Off-line control unit and professional laser operating software |
1 Set |
proprietary intellectual property |
smoke exhaust system |
Down smoke exhausting |
1 Set |
Powerful smoke exhausting |
Tools with machine |
Commonly used and laser adjust tools |
1 Set |
|
|
Blanking collector
|
Collect cutting blanking/drawer |
1 Pcs |
Locates under Lathe bed |
Operating manual |
|
1 Set |
|
Cables |
|
8m |
|
Smoke exhaust pipe |
|
20m |
|
Remark: Product configuration maybe change slightly according to the product improvement, accurate configuration please consults sales man

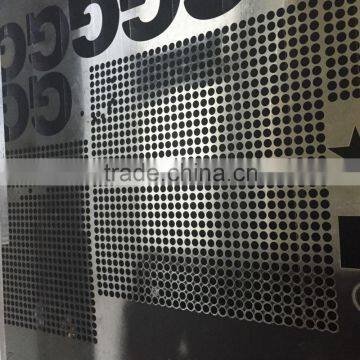

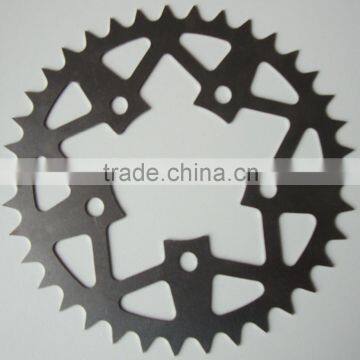

Machine cutting ability:
Materials types |
Thickness |
Cutting speed |
Auxiliary gas |
Mild steel |
2mm |
1.2m/min |
Oxygen |
Mild steel |
1.5mm |
1.8m/min |
Oxygen |
Stainless steel |
1mm |
4.6m/min |
Oxygen |
Stainless steel |
1.5mm |
1.8m/min |
Oxygen |
Stainless steel |
2 mm |
1.2 m/min |
Oxygen |

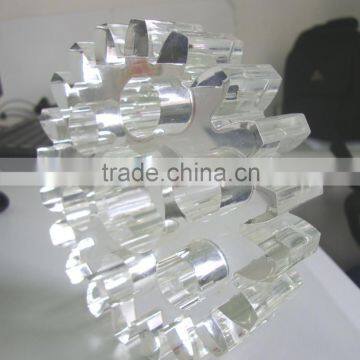

Acrylic |
10mm |
0.6m/min |
Compressed air |
Acrylic |
20mm |
0.12m/min |
Compressed air |
MDF |
12mm |
0.6 m/min |
Compressed air |
Plywood |
18mm |
0.3 m/min |
Compressed air |
Optional parts
LSCM-1313 Optional Parts
Item |
Specification |
Qty. |
Remarks |
Computer |
Not less P4/256Mb/Windows |
1 Set |
|
centrifugal blower |
2.2KW/Pipe connection mouth diameter 200mm |
1Set |
|
Air compressor |
Air volume of 0.8 m3, pressure 8 kg/min |
1 Set |
|
Products characters and Technical parameters
SLCM Products characters
- Ø International industrial machine lathe manufacturing level
- Ø Motor, Ball screw, Guide rail and key components all are imported, make sure the products reliability.
- Ø 260W DC excited laser tube, Low running cost, working without any gas consumption
- Ø High precision ball screw driving system, with Japan's servo motor, ensures the cutting accuracy.
- Ø Non-contact auto following system, automatically adapt to metal sheet uneven surface, make sure cutting effect in whole working area.
- Ø Powerful smoke exhausting system, protect laser path no pollution
- Ø Ball screw, guide rail and other important movement part all smoke prevented design, protect machine lathe accuracy.
- Ø Special optical path processing technology ensure laser cutting kept consistency in the whole working area
l Completely machine warranty is one year(Not including optical parts and consumable parts)
