Specifications

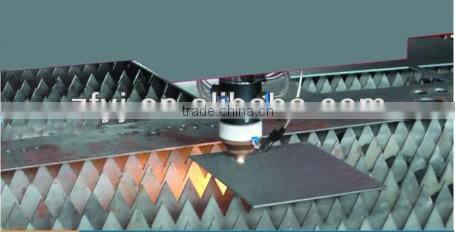

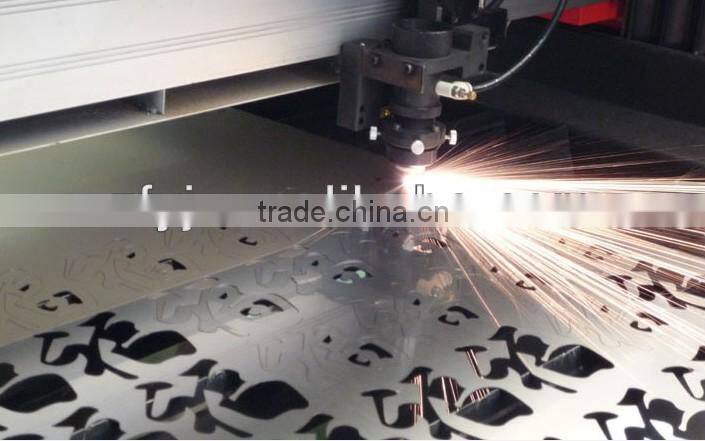

425M Metal laser cutting machine special for mild steel, stainless steel sheet cutting, machine choose imported RF laser tube.
425M Metal laser cutting machine
Model: 425M
Laser Source: 400W RF Synrad or JK Fiber laser
Worktable Size: 1250mm*2500mm
Cutting Capacity: Thin metal sheet. Acrylic, MDF,PVC.
1. Characteristics
lMachine chooses high quality 400W RF Synrad or JK Fiber laser.
lStrict lathe bed heat treatment process and scientific machine tools assemble ensure
machine excellent performance and longevity.
l3 axles servo drive system and ballscrew & guide rail transmission systemmake sure
the best cutting accuracy.
lSpecial optical path compensation technology and protection system ensure laser cutting kept
consistency in the whole working area.
lSpecial laser dedicated cooling system, effectively extending the life of laser working.
lOpen can use, no start machine fare, low consumption
lUn-touched automatic focusing system ensure high quality precision cutting
2. Parameters
No. |
Name |
Specification |
1 |
Model |
425M |
2 |
Laser Source |
400W RF Synrad or JK Fiber laser |
3 |
Working Area |
1250mmx2500mm |
4 |
Machine Structure |
Gantry |
5 |
Optical System |
Semi-flying optics |
6 |
Control System |
Off-line Motion control card |
7 |
Driving System |
Imported servo driving system |
8 |
Transmission System |
Ball screw and Linear guide |
9 |
Acceptable File Format |
Dxf.Ai. |
10 |
Overall Dimension |
4250mm×1650mm×1400mm |
11 |
Weight |
1800KG |
12 |
Power Supply |
220V/50(60)HZ/30A |
3. Firestar F400 Specifications
No. |
Name |
Specification |
1 |
Output Power |
400W |
2 |
Mode Quality |
M²<1.2 ± 0.1 |
3 |
Ellipticity |
<1.2 |
4 |
Rise Time |
<150µsec |
5 |
Beam Diameter |
4.5mm |
6 |
Beam Divergence (full angle) |
4.0mR |
7 |
Wavelength |
10.2-10.7µm |
8 |
Power Stability: cold start (guaranteed): after 2 minutes (typical): |
±7% ±5% |
9 |
Polarization |
Random |
10 |
Cooling |
Water |
11 |
Heat Load (max) |
8000W |
12 |
Flow Rate (18-22°C) |
4.0 GPM, <60PSI |
13 |
Input Voltage / Current |
96 VDC / 72A |
14 |
Dimensions, laser head (in) |
51.0 x 15.2 x 7.3 |
15 |
(mm) |
1295 x 386 x 185 |
16 |
Weight |
170 lbs / 77.1 kg |
