Home > Electrical & Electronics > Switch > Other Switches > 11KV 24KV 36KV JN15 EK6 Grounding Switch High-voltage Earthing Switches

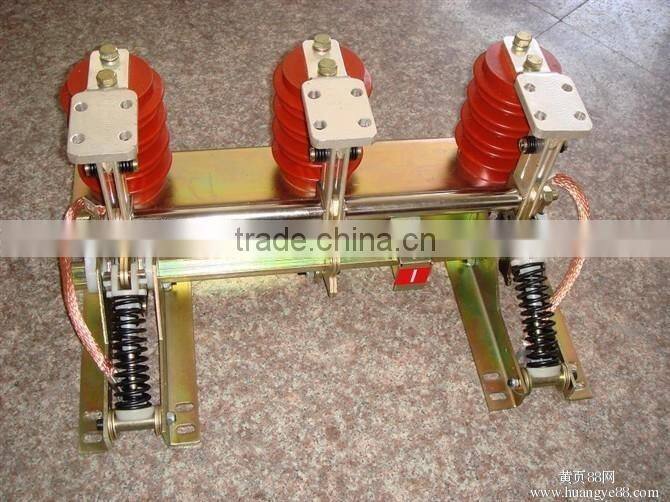

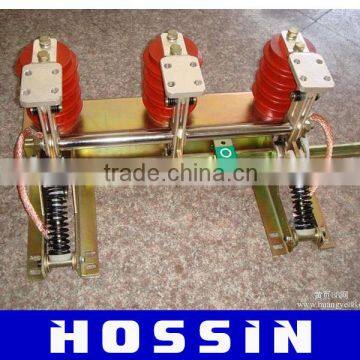

11KV 24KV 36KV JN15 EK6 Grounding Switch High-voltage Earthing Switches
US$ 10 - 50
MOQ: 1 Fluid Ounce
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
hossin
Model Number:
JN15 EK6
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Grounding Switch Full Set of AccessoriesUS$ 10 - 50MOQ: 1 Piece -
JLS-10 Current&Voltage Combined Transformer Metering BoxUS$ 300 - 500MOQ: 1 Set
-
JLSZW-6, 10 Outdoor HV Electric Measuring Tank CT&PTUS$ 300 - 500MOQ: 1 Set
-
JLSZW-6, 10 Current&Voltage Combined Transformer Metering Box CT&PT TransformerUS$ 300 - 500MOQ: 1 Set
-
JLS-10 Current&Voltage Combined Transformer Metering Box CT&PT TransformerUS$ 300 - 500MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
hossin
Model Number
JN15 EK6
Max. Current
400A 630A 3150A 4000A
Max. Voltage
12kV
Grounding switch High-voltage earthing switches 10KV 11KV 12KV 20KV 24KV 33KV 36KV 40.5KV
Product Overviews
The Earthing switch applies to power system of rating below 12kV/40.5kV, and AC 50Hz/60Hz. It is suitable for various types HV switchgear for earthing protection.The holistic earthing switch consists of basis , supporting insulator, main axis, main blade,fast spring,fixed and moving contact. Additional electronic display is also available according to the user's requirment.
Working Conditions
1) Altitude: ≤ 1000m
2)Ambient temperature:-25 ℃ to +40 ℃
3)Relative humidity: daily average ≤ 95%, monthly average ≤ 90%
4)Earthquake intensity: ≤ 8 degree

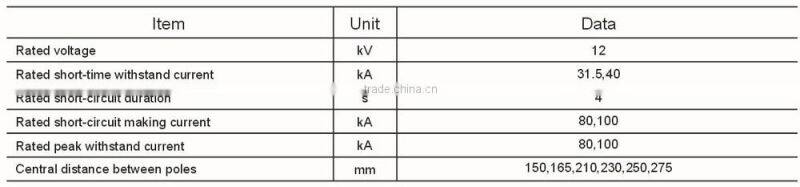

Specification

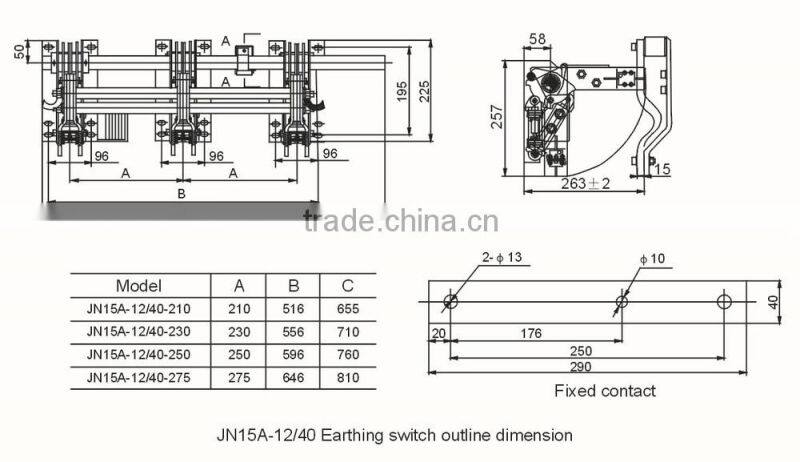

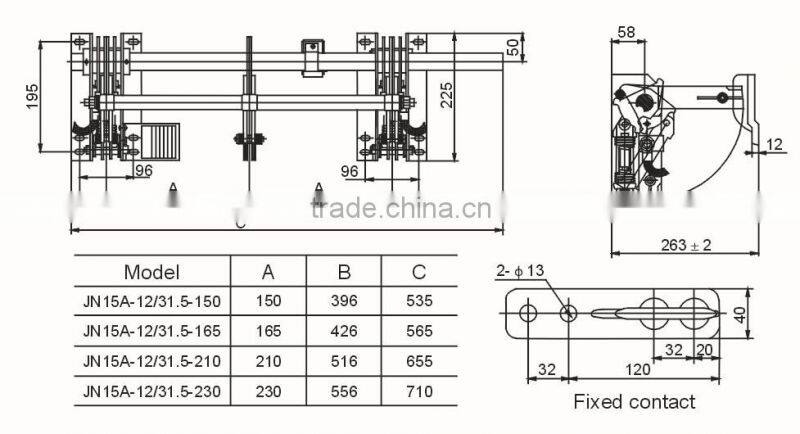

Outline Drawing
