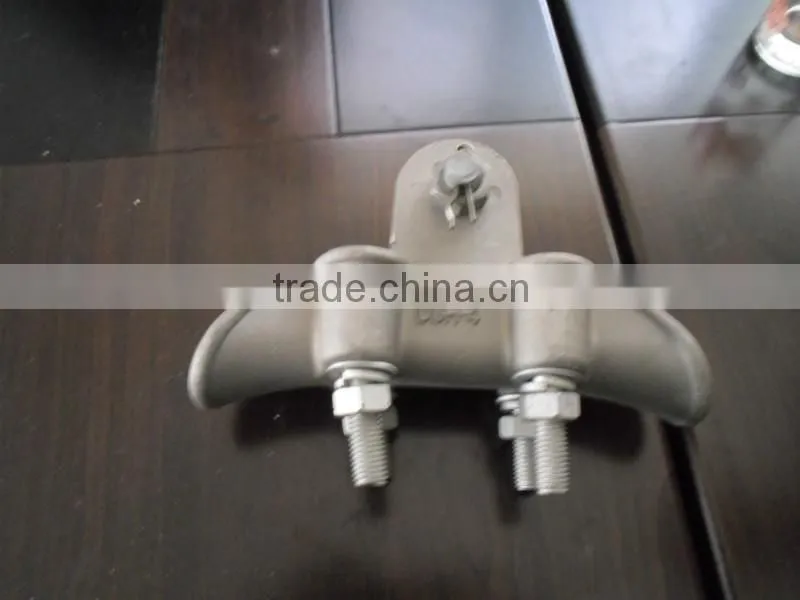

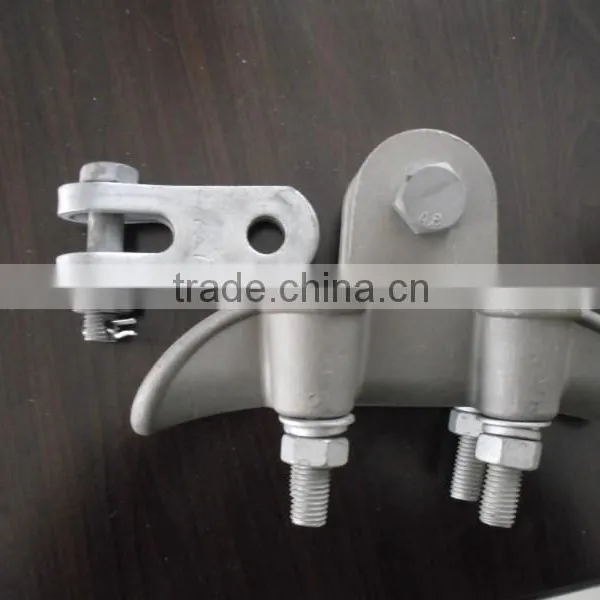

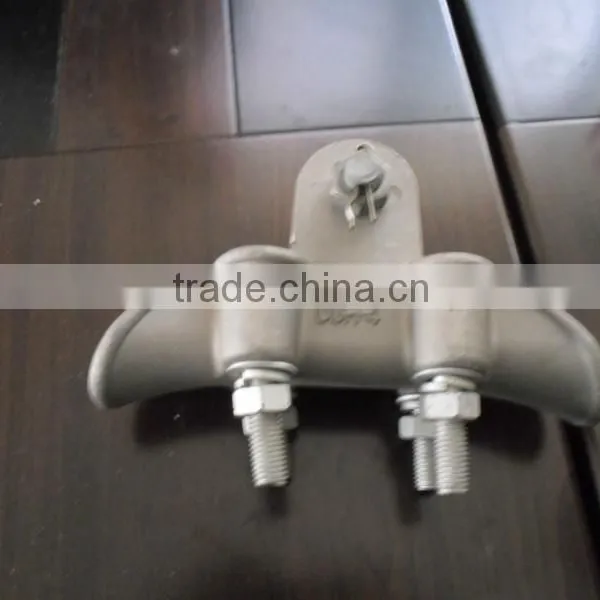

XGH-2 XGH-3 XGH-4 XGH-5 Aluminium-Alloy Suspension Clamp
US$ 11 - 17
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HOSSIN
Model Number:
XGH-2 XGH-3 XGH-4 XGH-5
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NXG Insulation Strain Clamp(wedge Type)NegotiableMOQ: 10 Pieces -
NELJ Series Wedge Type Aluminium Alloy Tensile Resistant Strain Clamp Wire ClipNegotiableMOQ: 10 Pieces
-
NJJ Series Wedge Type Insulation Strain ClampNegotiableMOQ: 10 Pieces
-
NLL Series Aluminium Alloy Wedge Type Strain Clamp and Insulation CoverNegotiableMOQ: 10 Pieces
-
NXJ Series Aluminium Alloy Wedge Type Strain ClampNegotiableMOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
HOSSIN
Model Number
XGH-2 XGH-3 XGH-4 XGH-5
Material
Aluminium
Structure
Suspension Clamp
Standard or Nonstandard
Standard
XGH-2 XGH-3 XGH-4 XGH-5 Suspension clamps are mainly used on overhead power lines and substations.They hang the conductor and ground wire to the insulator strings or hang the ground wire to the tower arms through link fittings.The assemblies are usually made out of malleable iron and aluminum alloy.When the suspension clamps are installed on AAC or ACSR, the conductor should be wound by aluminum tapes or performed armour rods for protecting.
XGH Aluminium-Alloy Clamp (Envelope Type);
(1) Material: Aluminium-Alloy;
(2) Size: XGH-2~XGH-5;
(3) The clamp body and keepers are aluminium-alloy, cotter-pin is stainless steel, the other parts are hot-DIP galvanized steel.
(1) Material: Aluminium-Alloy;
(2) Size: XGH-2~XGH-5;
(3) The clamp body and keepers are aluminium-alloy, cotter-pin is stainless steel, the other parts are hot-DIP galvanized steel.
| Catalog No. | Applicable Conductor(mm 2 ) | Dimension(mm) | Rated failure load(kN) | Weight (kg) | ||||
| H | C | D | R | L | ||||
| XGH-2 | 5.1-12.5 | 52.5 | 25 | 16 | 18 | 166 | 40 | 1 |
| XGH-3 | 12.4-17.0 | 50.5 | 23 | 16 | 11.5 | 200 | 40 | 1.5 |
| XGH-4 | 19.0-23.5 | 50.5 | 27 | 16 | 13.5 | 225 | 40 | 2.3 |
| XGH-5 | 24.2-28.0 | 70 | 32 | 16 | 16 | 260 | 60 | 4.4 |
