GW5 Outdoor 33KV 36KV isolators disconnect switch,High-voltage Isolator Switch
Isoation Switch
1.90% exportation
2.good quality
3.reasonable price
Summary of GW5-40.5/72.5/126/145 Outdoor HV Disconnect Switch:
GW5-40.5/7 2.5/126/1 45 outdoor high voltage disconnect switch is used to make or break high voltage circuit in rated voltage 40.5kV, 72.5kV, 126/145kV, AC 50/60Hz system. It is able to open and close small capacitance and inductive current. This disconnect switch accords with standards: IEC62271-103 High voltage switches. GB1985: AC High voltage disconnect switch and earthing switch and IEC 60694 & GB/T11022: Common technical requirements of HV switchgear and control equipment.

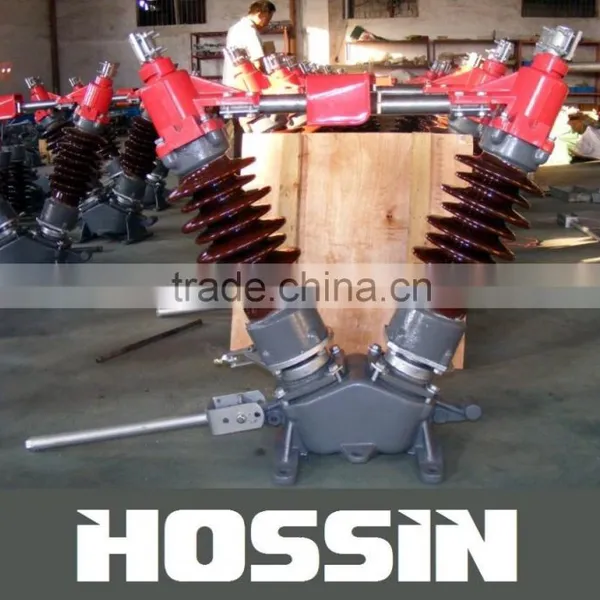

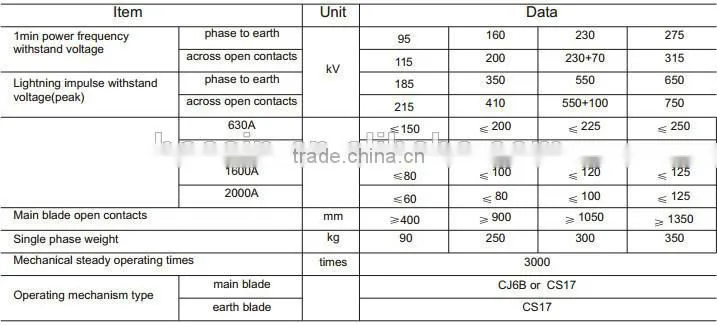

Technical Specification of GW5-40.5/72.5/126/145 Outdoor HV Disconnect Switch:

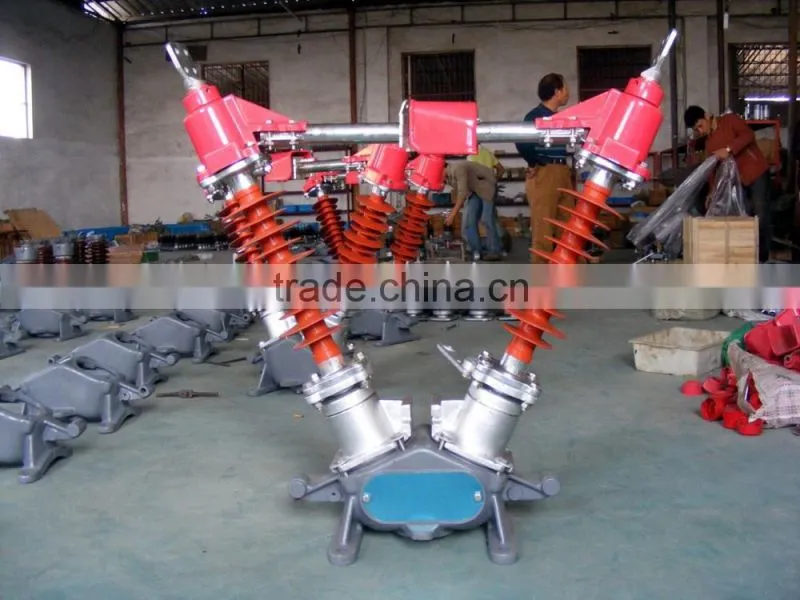

Structure of GW5-40.5/72.5/126/145 Outdoor HV Disconnect Switch:
Disconnect switch is make up of three single phase, V type for each phase, symmetrical angle is 50 , disconnect switch is made of pedestal, post insulator and electric part. For disconnecter with earth switch, it also have male and female contact, blade, driving parts and interlock plate. Main blade with CJ6 motor or CS17 manual operating mechanism, earth blade can be match with CS17 manual operating mechanism. There are different installation method contain obverse, side, diagonal and reversal, etc. also it can be used for outdoor and indoor, the installation method can be according to the user’s requirement.
Summary of GW5-40.5/72.5/126/145 Outdoor HV Disconnect Switch:
GW5-40.5/7 2.5/126/1 45 outdoor high voltage disconnect switch is used to make or break high voltage circuit in rated voltage 40.5kV, 72.5kV, 126/145kV, AC 50/60Hz system. It is able to open and close small capacitance and inductive current. This disconnect switch accords with standards: IEC62271-103 High voltage switches. GB1985: AC High voltage disconnect switch and earthing switch and IEC 60694 & GB/T11022: Common technical requirements of HV switchgear and control equipment.
Structure of GW5-40.5/72.5/126/145 Outdoor HV Disconnect Switch:
Disconnect switch is make up of three single phase, V type for each phase, symmetrical angle is 50 , disconnect switch is made of pedestal, post insulator and electric part. For disconnecter with earth switch, it also have male and female contact, blade, driving parts and interlock plate. Main blade with CJ6 motor or CS17 manual operating mechanism, earth blade can be match with CS17 manual operating mechanism. There are different installation method contain obverse, side, diagonal and reversal, etc. also it can be used for outdoor and indoor, the installation method can be according to the user’s requirement.

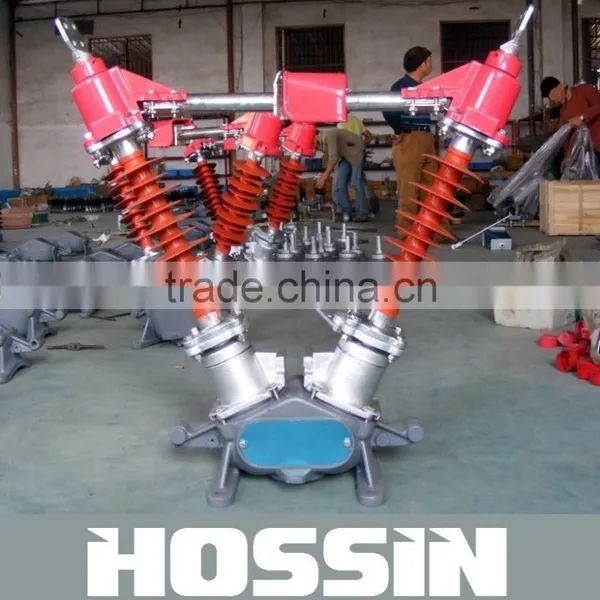

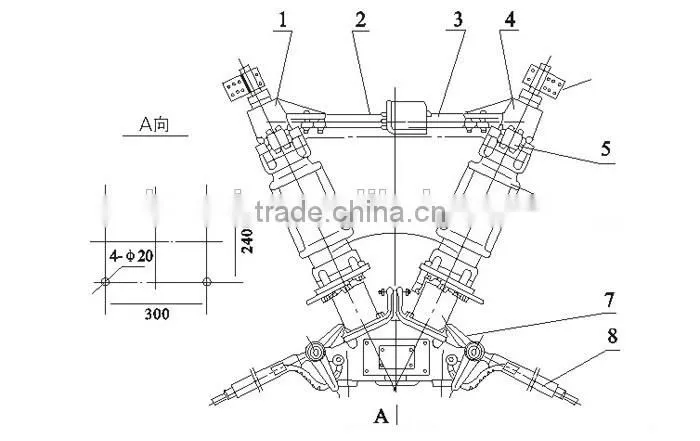

. Drawing
| Item | Unit | Data | |||
| Rated voltage | KV | 40.5 | 72.5 | 126 | 145 |
| Rated current | A | 630 | 1250 | 1600 | 2000 |
| Rated peak withstand current | KV | 63 80 100 | |||
| 4s short-time withstand current | 25 31.5 40 | ||||
| Rated short-time withstand time | s | ||||
| Rated power frequency | HZ | 50/60 | |||
