Help Center11kv Gang Isolator
US$ 8 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
hossin
Model Number:
GW1 GW4 GW5 GW7 GW8 GW10 GW12 GW13 GW14 GN1 GN2 GN22 GN19 GN6 GN8 GN27
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10KV 11KV 12KV 15KV 24KV 33KV 35KV 36K 40.5KV HGW9 Disconnector / High Voltage Isolation SwitchUS$ 8 - 1,000MOQ: 1 Piece -
15kv Disconnector GW9-15 High Voltage Disconnector SwitchUS$ 8 - 1,000MOQ: 1 Piece
-
HGW9 Outdoor High Voltage Disconnector SwitchUS$ 8 - 1,000MOQ: 1 Piece
-
GN30-12 Type Rotary Indoor High-Voltage Isolating Switch Disconnect SwitchUS$ 100 - 200MOQ: 1 Piece
-
Disconnector Isolator Switch GN22-12C GN22-10C GN22US$ 1,700 - 7,000MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
hossin
Model Number
GW1 GW4 GW5 GW7 GW8 GW10 GW12 GW13 GW14 GN1 GN2 GN22 GN19 GN6 GN8 GN27
Max. Current
200A 400A 630A 1000A 1250A 1600A 2000A 3150A 4000A
Max. Voltage
0.4KV 0.5KV 9KV 11KV 12KV 15KV 20KV 21KV 24KV 33KV 36K 40.5KV 33KV

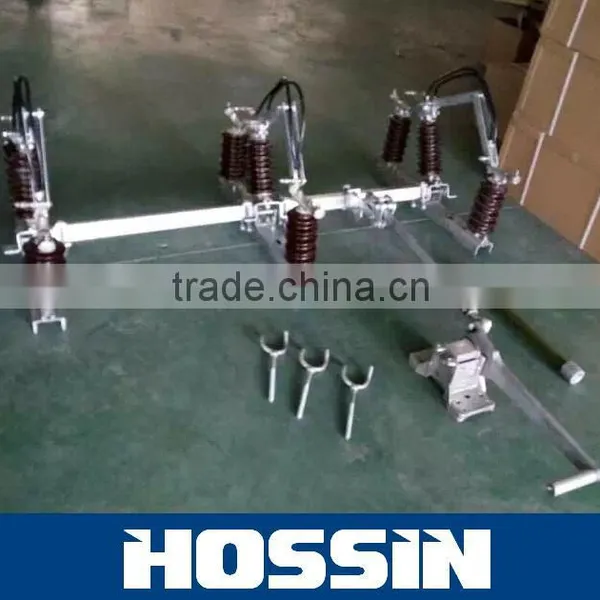

11kv gang isolator
Product Overviews
Outdoor AC Gang isolator switch 11kv/400A-33kv/600A used in 3 phase AC
50/60Hz power circuit, it is used as switching on and switching off at the
voltage with no load. It apply to IEC standard. IEC60964: 1996, IEC62271-102:
2002.
Working Conditions
Altitude:1000 to 3000m.
Ambient temperature:-30 celsius to +40celsius
The relative humidity of air:monthly humidity not more than 90%,daily humidity
not more than 95%.
Wind pressure:not more than 700Pa( wind speed is 34m/s).
Amplitude:earthquake degree 8
Environmental pollution degree:degree III
Specification
| Type | Rated voltage (KV) | Rated current (A) | 4s heat steady e.c.A | Shock voltage (A) |
Impulse withstand voltage (KV) |
Power-frequency withstand voltage(KV) |
| RH-B | 11 | 400 | 12500 | 31500 | 95 | 42 |
| RH-B | 33 | 600 | 12500 | 31500 | 195 | 80 |

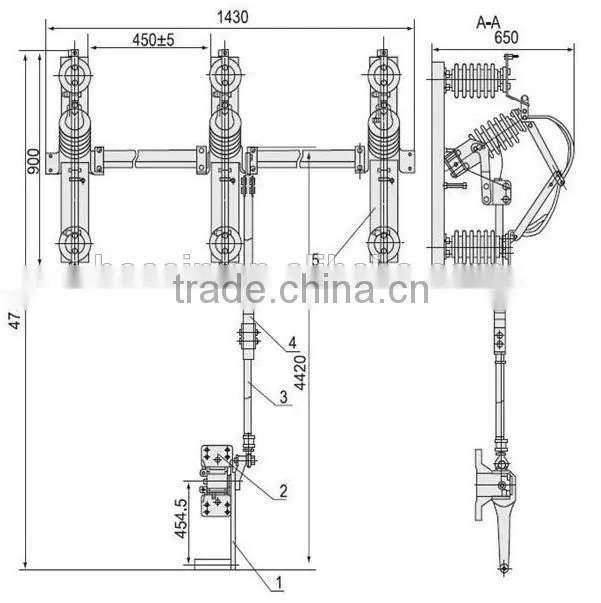

Outline Drawing
