Help CenterAuditorium Wall and Ceiling Perforated Acoustic Panel
Related Products
-
Acoustic Ceiling Sound Absorb Panel Acoustic Ceiling BoardUS$ 8 - 30MOQ: 100 Square Meters -
Acoustic Wooden Wall Panels for Interior Decoration Supplier's ChoiceUS$ 8 - 30MOQ: 500 Square Meters
-
Auditorium Popular Acoustic Wooden Wall Panel Supplier's ChoiceUS$ 8 - 50MOQ: 50 Square Meters
-
Churhc Hot Sale Sound Absorb Wall PanelUS$ 8 - 30MOQ: 100 Square Meters
-
Interior Wall Panels Widely Used in Meeting Room DecorationUS$ 7 - 30MOQ: 300 Square Meters

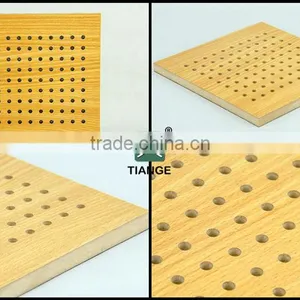

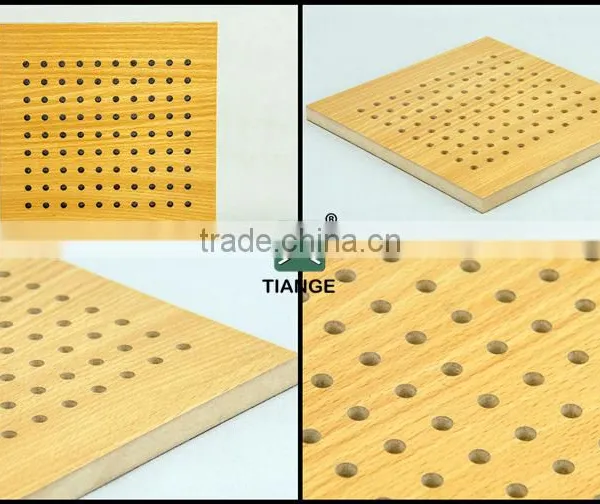

Perforated acoustic panel : Tiange perforated acoustic panel used high density mold- proof, fireproof, enviromental eco-pine wood as base material, processed by full automatic computer controled equipment. Be made to multihole structures product, not only have good sound absorbing effect, but also looks great on visual.
Model type |
E16/6,E32/6,V32/6,E35/1.5-10,V32/3-10 |
Size6 |
600*600,1200*600,2400*1200mm |
Thickness |
12,15,18mm |

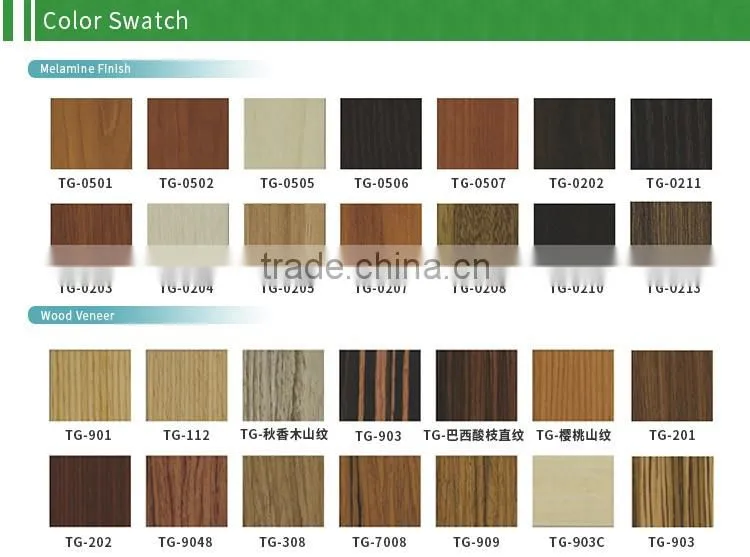

Finish |
melamine, veneer, metal finish, acrylic, PU leather, |
paint |
UV,PU painting |

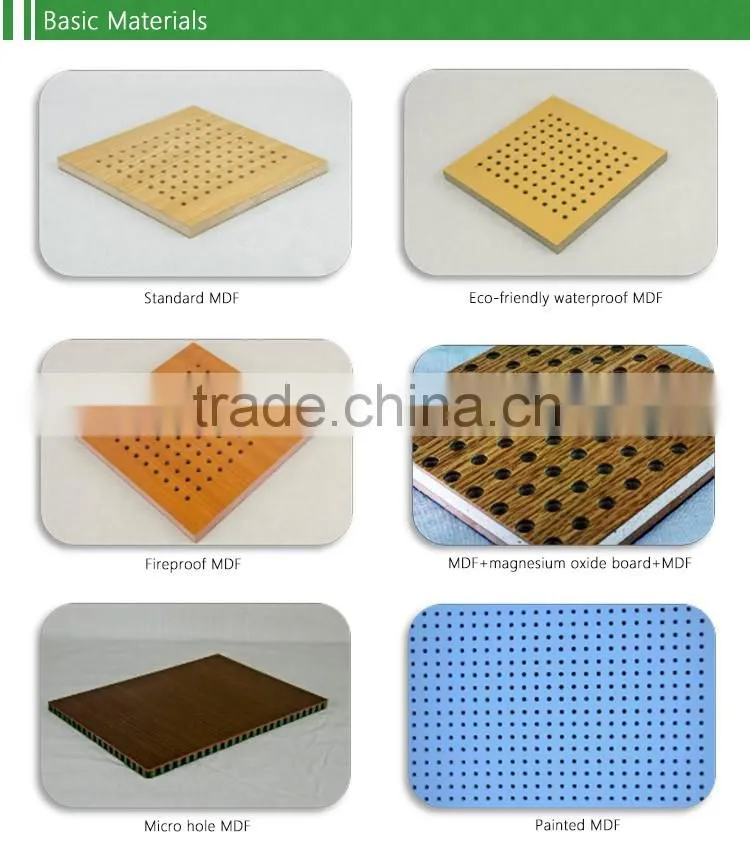

Base material |
Standard MDF, Eco-pine wood MDF, Fireproof MDF, Moistureproof MDF, Magnesium Composited MDF |
MDF density |
680kg/cubic meter |
Backside finish |
acoustic felt, woven fabric |
Fireproof grade |
GB8624 2012 A,B1,B2,B3 |
Eco-protection grade |
E0,E1 |

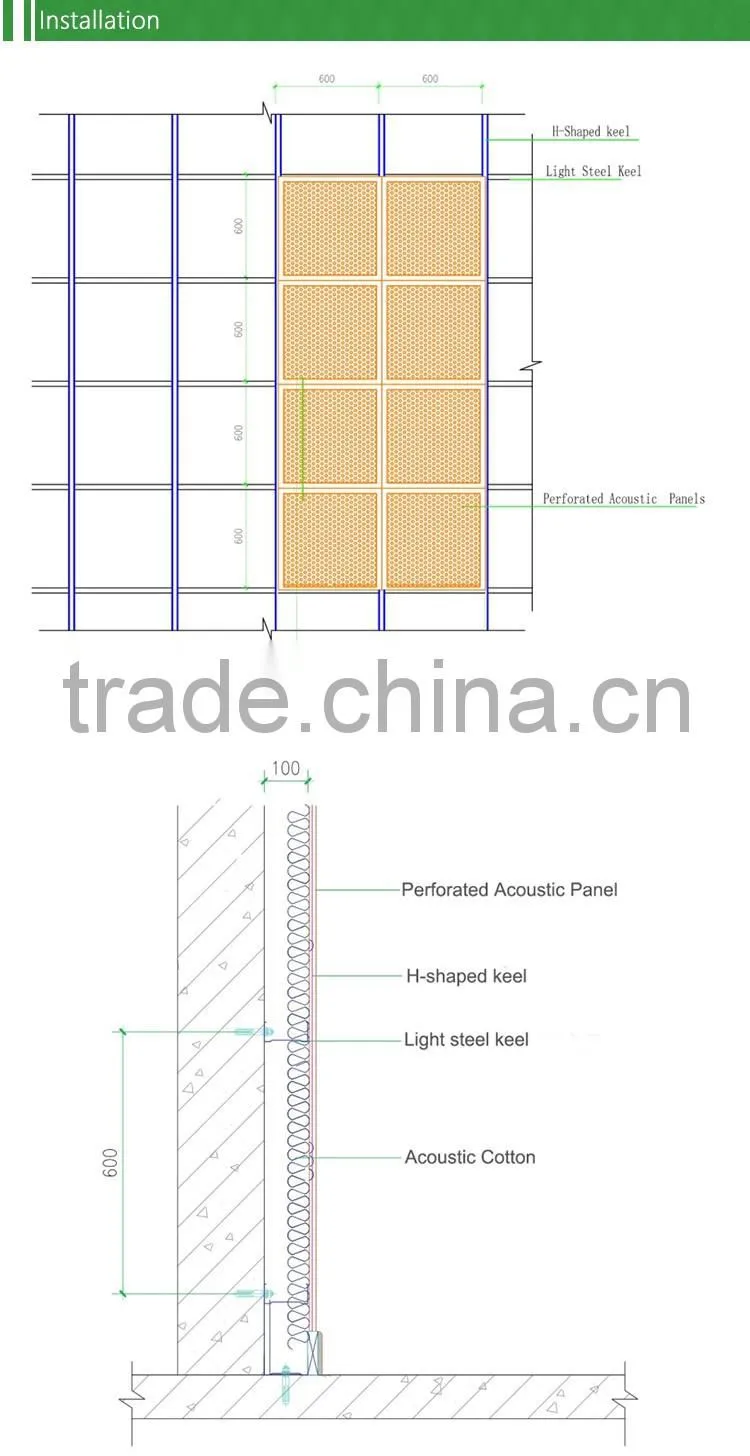

Installation |
aluminum keel and clips, wood frame, gun nail |
Backside hole diameter |
10 mm |
Depth of groove |
7mm |
Veneer type thickness |
0.3,0.6mm |
Veneer texture |
Mountain texture, straight line |
Veneer tree species |
Maple, cherry, Oak, teak, walnut, ashtree, sabelli, birch, |
Certification |
BV,CE,SGS,ISO9001-2008, |
Test report |
Eco protection, sound absorption, flame retardant |

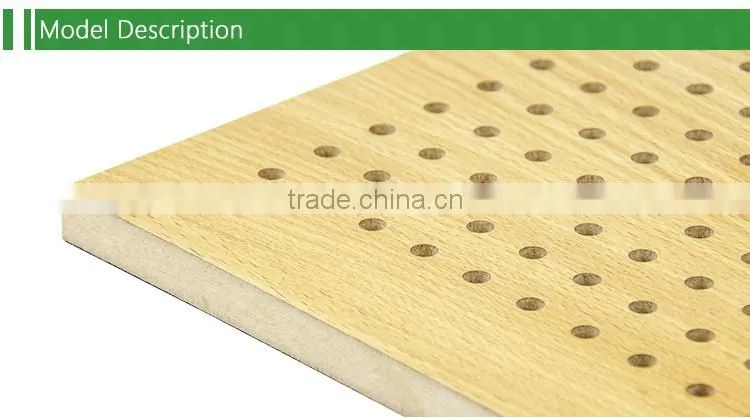

1 > Perforated acoustic panel is a kind of resonance absorption material with holes through on the
quality MDF board.
2 > It has strong selection on the sound spectrum and particular great performance on the middle
and low frequency.
3 > If filled with the acoustic cotton at the back side space of the acoustic panel, it has better performance
on the middle and high frequency.

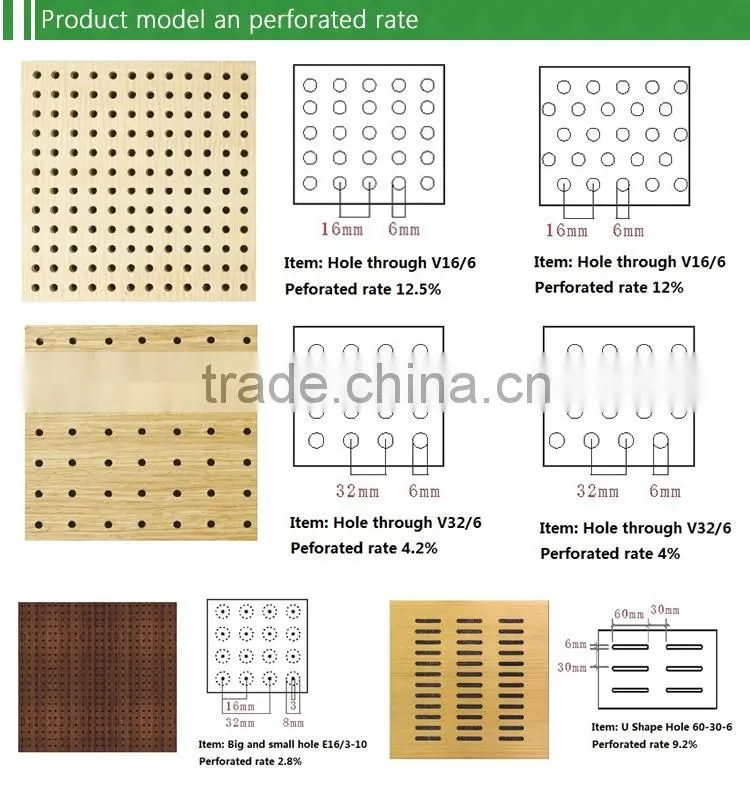

4 >The holes diameter and pitch can be custom made.
5 > Strong impact resistance, excellent decorate performance, elegant color, especially work for wooden
construction.
| PRODUCT SIZE | |
| width | 600mm 1200mm 1220mm |
| length | 800mm 1200mm 2440mm 2400mm |
| thickness | 12mm 15mm 18mm |
|
allowance : width ±1mm , length ±1mm , thickness ±0.2mm | |
Send inquiry soon>>
1 > The perforated acoustic panel is made of high quality MDF board.
2 > according to the customer’s acoustic and decoration requirement, our MDF board can equipped with
outstanding environmental, flame retardant and waterproof function, even can with various colors and
finish choices.
3 > Compared with the grooved acoustic panel, the perforated panel has better impact resistance.
4 > Our perforated acoustic panel’s highest fire retardant grade can reach A2(GB) grade, and the best
environmental protection can reach E1(GB) grade.
Send inquiry soon>>

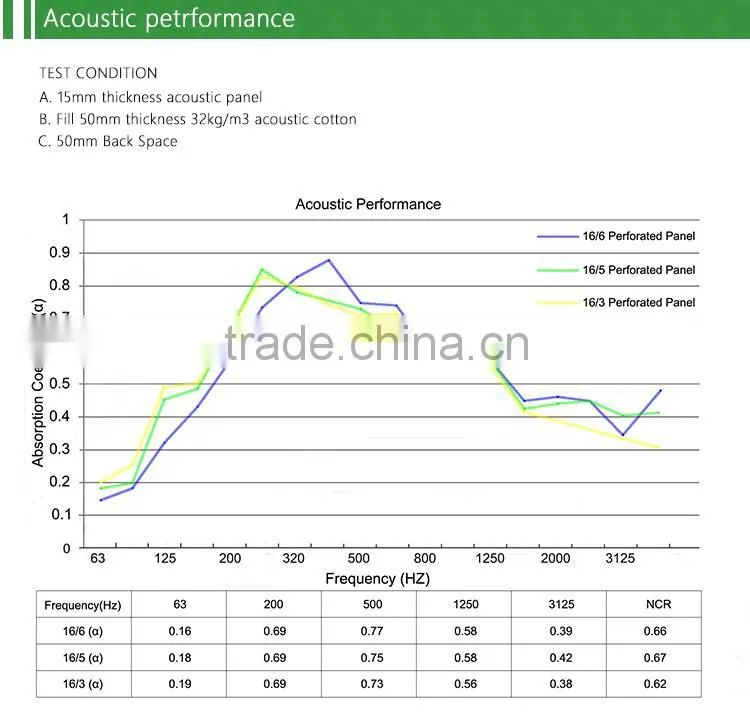

Acoustic absorption is usually defined in terms of an absorption coefficient (usually denoted by the Greek letter alpha, α),
defined as the ratio of absorbed to incident sound energy from a single interaction between a sound wave and a certain
material.
Absorption coefficients range from 0 to 1 and vary with frequency,
α=0 means that the material absorbs no sound and reflects all sound energy incident on it.
α=1 means that the material absorbs all sound energy incident on it and reflects none.
Absorption coefficients of 0 and 1 are ideal values that do not exist in reality because all materials reflect and absorb some sound.
In general, materials having absorption coefficients less than 0.15 are considered to be reflective and those having absorption coefficients greater than 0.4 are considered to be absorptive.
As you can see our Testing report show that our products have a very good performance in a large range of application.
Send inquiry soon>>
Send inquiry soon>>
Send inquiry soon>>
Send inquiry soon>>
Contact us soon>>
