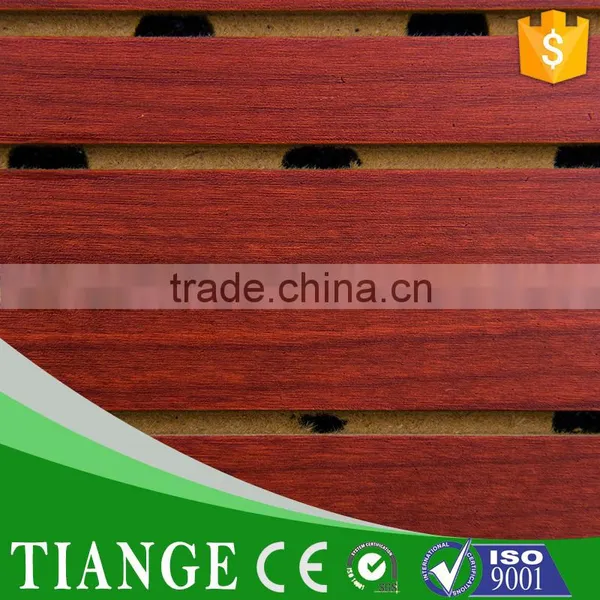

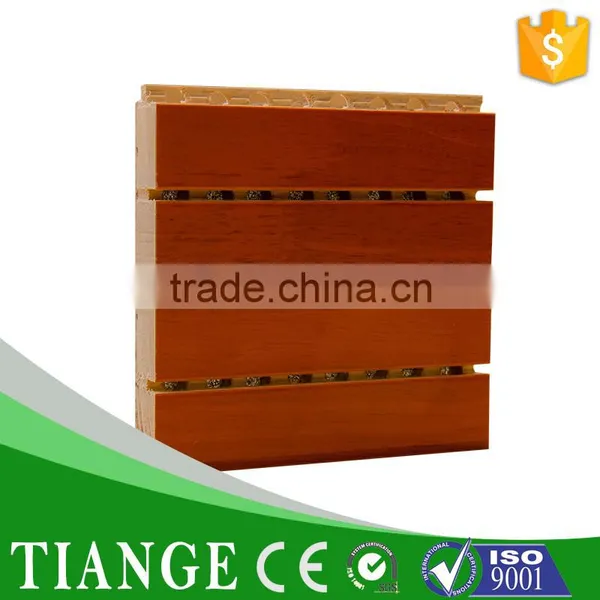

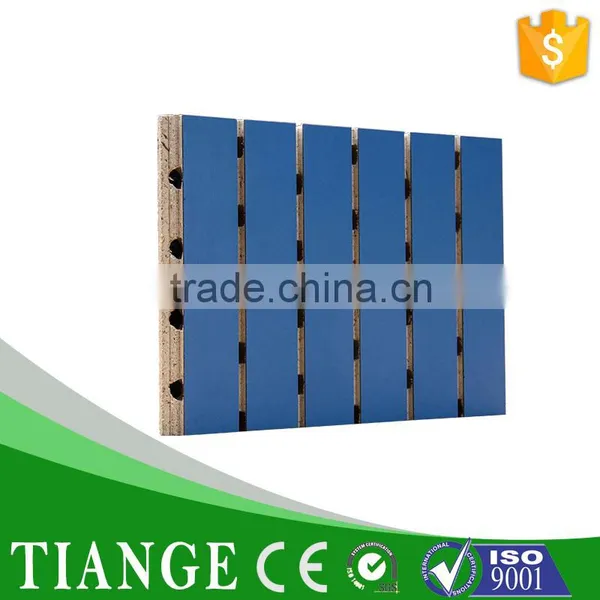

1> Grooved acoustic wall panels is a kind of slit resonance absorption material which is made from high density
panel with grooves on the surface and perforated holes at the back side.
2> It has strong selection on the sound spectrum and particular great performance on the middle and
low frequency.
3> It has better sound absorption effect on medium and high frequency if there is sound absorption cotton
filled at the back side cavity..
4> The design can be custom made

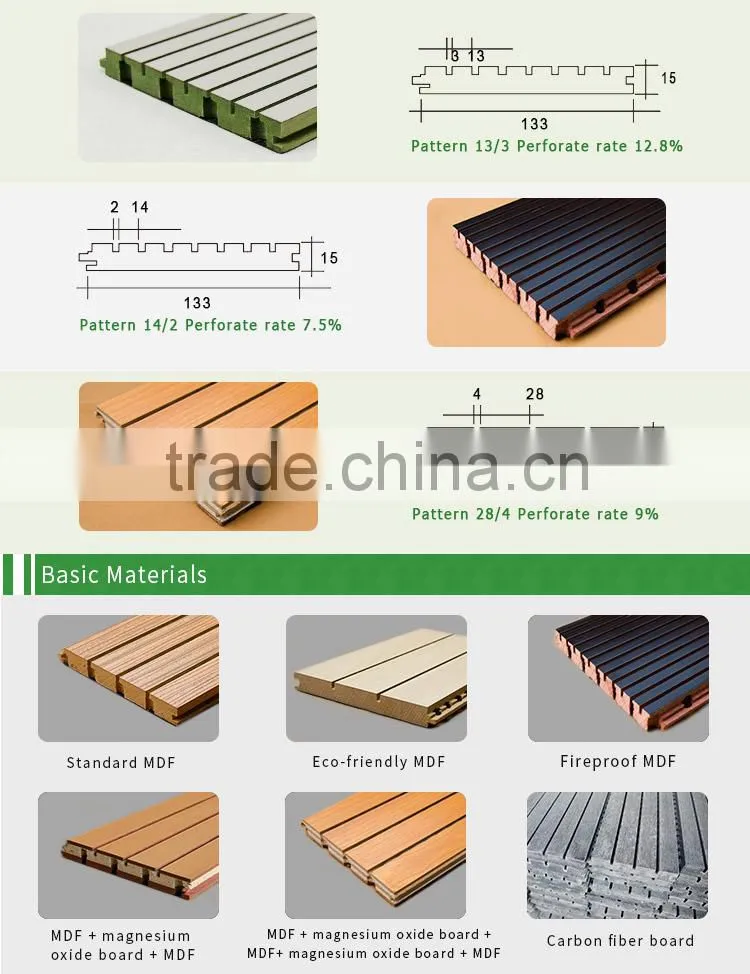

5> How to calculate the perforated rate:
1) When the hole line up in square P=0.785*(D/B)m2
2) When the hole line up in Equilateral triangle
P=0.907*(D/B)m2
P ----- Perforated rate(%)
D ----- Diameter of the hole
B ----- Distance between two center of the holes
Grooved Acoustic wall panels Descrition

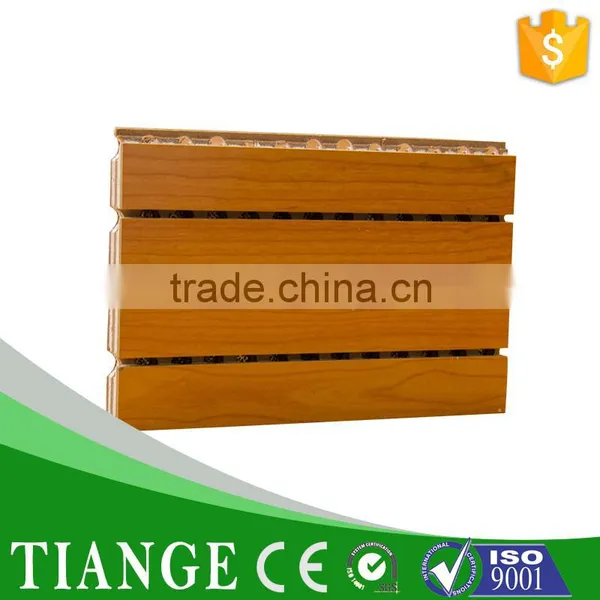

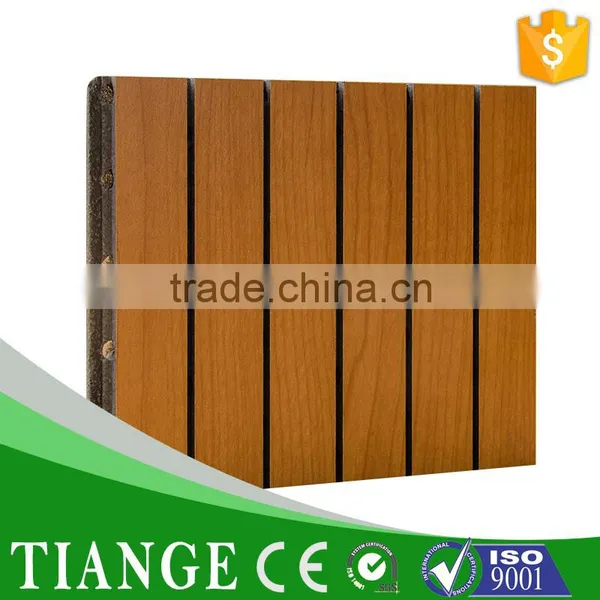

1> The grooved acoustic wall panels is made of high quality MDF board.
2> According to the customer’s acoustic and decoration requirement, our MDF board can equipped with
outstanding environmental, flame retardant and waterproof function, even can with various colors and
finish choices.
3> Our grooved acoustic wall panels highest fire retardant grade can reach A2(GB) grade, and the best environmental
protection can reach E1(GB) grade.
4> Grooved wood acoustic wall panels structures’ finish including: Melamine, Natural veneer, Anti-fire plate, Paint,
Metal sheet, Artificial veneer and leather etc.
5> Acoustic tissue including: The black color and attached at the back side of acoustic wall panels tissue, has fire retardant
and sound absorption function.
| PRODUCT SIZE | |
| width | 133mm 197mm |
| length | 2440mm |
| thickness | 12mm 15mm 18mm |
|
allowance : width ±1mm , length ±2mm , thickness ±0.2mm | |
Send inquiry soon>>
Acoustic absorption is usually defined in terms of an absorption coefficient (usually denoted by the Greek letter alpha, α),
defined as the ratio of absorbed to incident sound energy from a single interaction between a sound wave and a certain
material.
Absorption coefficients range from 0 to 1 and vary with frequency,
α=0 means that the material absorbs no sound and reflects all sound energy incident on it.
α=1 means that the material absorbs all sound energy incident on it and reflects none.
Absorption coefficients of 0 and 1 are ideal values that do not exist in reality because all materials reflect and absorb some sound.
In general, materials having absorption coefficients less than 0.15 are considered to be reflective and those having absorption coefficients greater than 0.4 are considered to be absorptive.

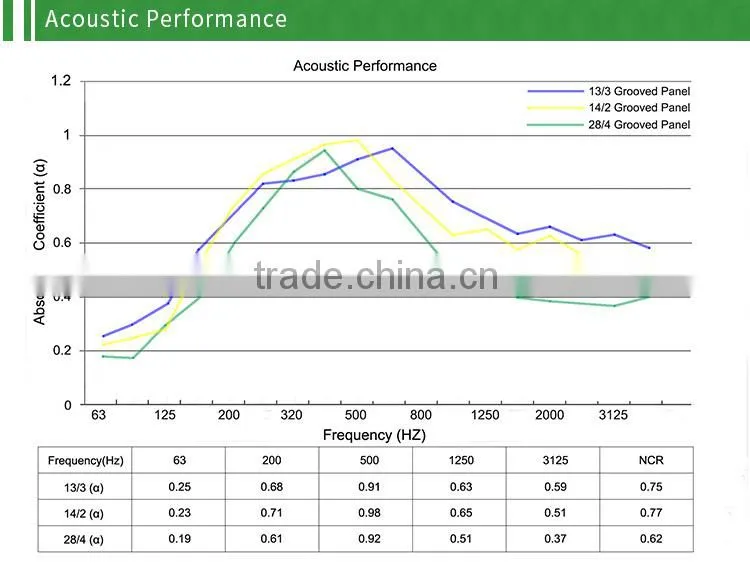

As you can see our Testing report show that our acoustic wall panels have a very good performance in a large range of application.
