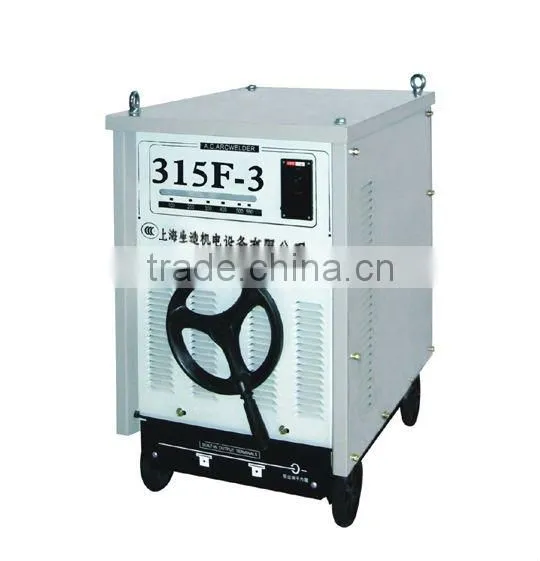

BX1-315F-3 Moving Iron & Magnetic AC Arc Welding Machine

Name: BX1-315F-3 Moving Iron & Magnetic AC Arc Welding Machine
Brand: shengzao
SKU: 101607987
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanxi, China

Brand Name:

shengzao

Shanghai Shengzao Mechanical Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanxi, China

Brand Name shengzao

Model Number BX1-315F-3

Arc Current 315A

Pulse Frequency 50HZ

Rated Duty Cycle 35%

Motor Type AC Motor

Dimensions 610*450*680mm

Usage welding all low carbon steel metal components.

Voltage 220V

Certification CE CCC

Warranty 1 Year

After-sales Service Provided Overseas service center available

BX1-200F-3, BX1-250F-3, BX1-300F-3, BX1-315F-3, BX1-400F-3, BX1-500F-3, BX1-630F-3 moving iron & magnetic AC Arc welding machine

Characteristics & Applications:

Single manual operated AC arc welding machine.
Applicable for 2.5mm-8.0mm diameter coated electrode, and welding all low carbon steel metal components.
With good welding property, compact welding structure, wide adjusting current range.
It is the most widely used energy saving AC arc welder, which is widely used in architecture, metallurgy, chemistry, mechanical, ship-building and other industries.

Model	200F-3	250F-3	300F-3	315F-3	400F-3	500F-3	630F-3
Primary voltage (V), Phase, Frequency	1 Phase, 380V, 50HZ
Secondary no-load voltage(V)	62V	65V	76V			78V	78V
Rated working voltage(V)	28V	30V	32V	33V	36V	40V	44V
Rated welding current (A)	200A	250A	300A	315A	400A	500A	630A
Current adjusting range (A)	40-200A	50-260A	60-320A	63-330A	80-420A	95-550A	120-650A
Rated Duty cycle	35%
Cooling Model	Forced air cooling
Rated input capacity (KVA)	12.5KVA	16KVA	23KVA	24KVA	33KVA	42KVA	52.5KVA
Welding electrode(mm)	2.5-4mm	2.5-5mm	2.5-6mm	2.5-6mm	2.5-6mm	3.2-8mm	3.2-8mm
Efficiency%	80%	83%	80%	84%	84%	86%	86%
Power factor	0.55	0.55	0.52	0.53	0.53	0.52	0.53
Weight (KG)	58KG	65KG	70KG	72KG	84KG	93KG	118KG
Overall dimension (MM)	610450680mm					670510760mm
