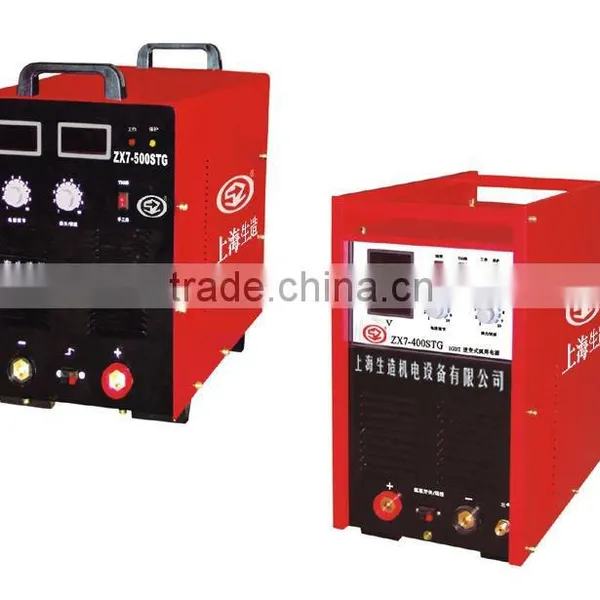

ZX7-400S, ZX7-500S IGBT Inverter Manual Arc Welding Machine

Name: ZX7-400S, ZX7-500S IGBT Inverter Manual Arc Welding Machine
Brand: shengzao
SKU: 101607965
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

shengzao

Shanghai Shengzao Mechanical Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name shengzao

Model Number ZX7-400S, ZX7-500S

Arc Current 29.3A

Pulse Frequency 50HZ

Rated Duty Cycle 35%

Motor Type AC Motor

Dimensions 570*320*460mm

Usage Welding carbon steel, low alloy steel,stainless steel, high alloy stee

Certification CCC

ZX7-160S, ZX7-200S, ZX7-250S, ZX7-315S, ZX7-400S, ZX7-500S, ZX7-630S

IGBT inverter manual arc welding machine

Characteristics and application:

Application: 1. Welding carbon steel, low alloy steel.

2. Welding stainless steel, high alloy steel, copper, silver, molybdenum, titanium and other metals.

Characteristics:

Ideal static external characteristics and good dynamic property.
Ensure high stability of welding current under electric fluctuation and adjustment of arc length.
Self-control ability of electric arc. Soft electric arc.

Model	ZX7-160S	ZX7-200S	ZX7-250S	ZX7-315S	ZX7-400	ZX7-500	ZX7-630
Power Voltage	AC 220V±15%, 50/60HZ		AC.(3 Phase) 380V ±10% 50Hz
Rated input power	7.3KVA	9KVA	9.9KVA	12.4KVA	19.3KVA	25KVA	31KVA
No-load output voltage	57V		77V
Output Current Adjusting Range	10-160A	10-200A	20-250A	20-315A	20-400A	20-500A	30-630A
Rated Duty cycle	35%
Rated input current	33A	41.3A	15A	18.8A	29.3A	38A	47A
Efficiency	85%	85%	85%	85%	85%	85%	85%
Power factor	0.95	0.95	0.95	0.95	0.95	0.95	0.95
Weight	5kg	6kg	21kg	22kg	27kg	37kg	45kg
Overall dimension	380185290mm		570320460mm			600360490mm	670400610mm
Welding electrode diameter	1.6-3.2mm		2.0-4.0mm	2.0-5.0mm	2.0-6mm	2.0-7.0mm	2.0-8mm
Gas Flow (L/min)	25L/min
