Specifications
1.vacuum forming machine is suitable for forming PP, PS, PVC,PET,HIPS and etc.2.Forming boxes,trays,lids,bowls and etc.
HY-710/1200 vacuum forming machine
I. Introduction of Machine
HY-710/1200 vacuum forming machine is controlled by micro PLC, infrared control the temperature by up oven. Match with hydraulic cutting machine, so that it can do feeding, heating, forming automatically and cutting on a second station.
II. Application Area:
It is suitable to for PP, HIPS, PS, PVC and PET plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.

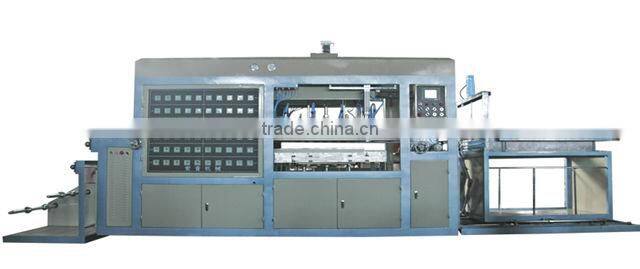

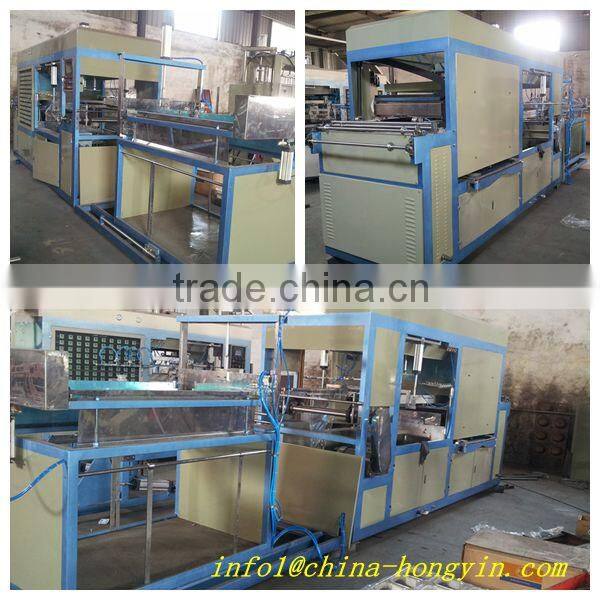

III. Machine Picture
l Automatic flexible vacuum bed:
Flexible width |
450-710 mm |
Bed length |
1200mm |
1. HY-710/1200 vacuum forming machine parameter
Model |
HY-710/1200 |
Forming length |
660-1200mm/ (can change) |
Sheet width |
610-760mm (can change) |
Forming height |
0-165mm(height) |
Production speed |
200-600times/hour(depend on the shape of product and thickness of sheet) |
Mould-up times |
1 or 2 times(free to install) |
Mould-up move |
Electromotion |
Eject-die |
Shake to mould-down |
Electric furnace rating power |
30 KW (largestest) |
Tempering device |
60 independent electronics non pole adjust(one control one) |
Motor power |
Whole machine 2.25 KW |
Vacuum pump power |
3.0 KW |
Cooling-water machine power |
3.37 KW |
Power |
380V 50HZ three phases |
Air compressor |
15KW/20HP (remarked by customer) |
Overall diameter |
(L)6600*(W)1450*(H)2800mm/260*59*110in |
2. HY-710/1200 vacuum forming machine and other related auxiliary machine
the main forming machine need an alone cutting machine to finished cutting edge .
Auxiliary Equipment of Vacuum Forming Machine
No. |
Name |
Pictures |
Parameter |
||||
1 |
HY-25N |
|
Cutting force |
25Tons |
|||
Stroke Adjustment |
10-90mm |
||||||
Table Area |
1600x600mm |
||||||
Power Supply |
380V,50/60HZ |
||||||
Motor Power |
2.2kw |
||||||
Packing Size |
2.2x1x1.7mm |
||||||
Weight |
1600Kg |
||||||
Hydraulic oil 46# |
80Liters |
||||||
2 |
LG-3/8 screw air compressor |
|
Capacity: 3 m³/min |
||||
Working Pressure:0.8Mpa | |||||||
Motor Power:18.5kw | |||||||
Dimension :1.42*0.85*1.1m | |||||||
weight:600kg | |||||||
Usage: air supply | |||||||
3 |
SFL-03F air cooling chiller |
|
Cooling capacity 50HZ |
||||
28541 Btu/h |
8.36 KW |
7188 Kcal/h |
2.4 USRT |
||||
compressor power: 2.5kw | |||||||
Water pump:0.5HP` | |||||||
Weight :150kg | |||||||
Dimension :1.1*0.6*1.25m | |||||||
Usage: cooling the recycling water to control moulds temp. | |||||||
4 |
Air tank |
|
capacity: 1 m³ |
||||
Dimension :1.05*1.05*2.4m | |||||||
Usage: air storage | |||||||
5 |
1.5T Hydraulic Lifter |
|
Capacity :1.5T |
||||
Max height :1.6m | |||||||
Dimension :1.38*0.8*2.0m | |||||||
Weight : 350kg | |||||||
Usage: This machine just be used for unload the sheet roll and change the moulds. | |||||||

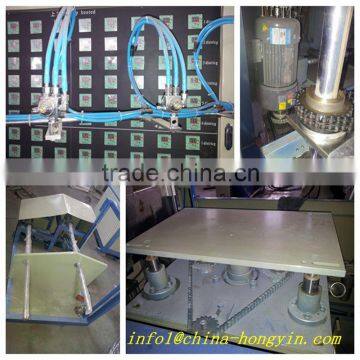

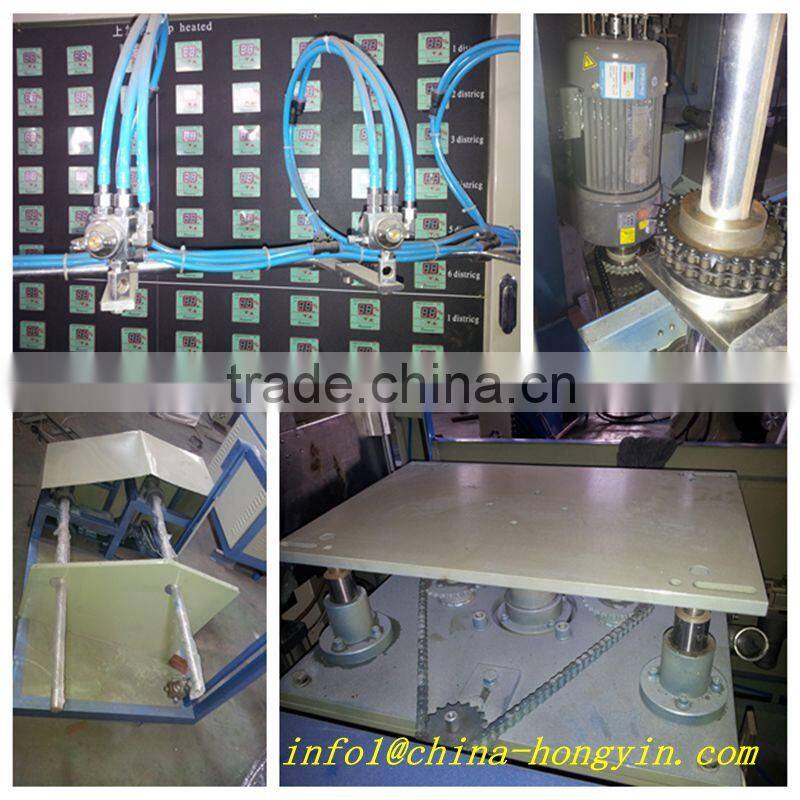

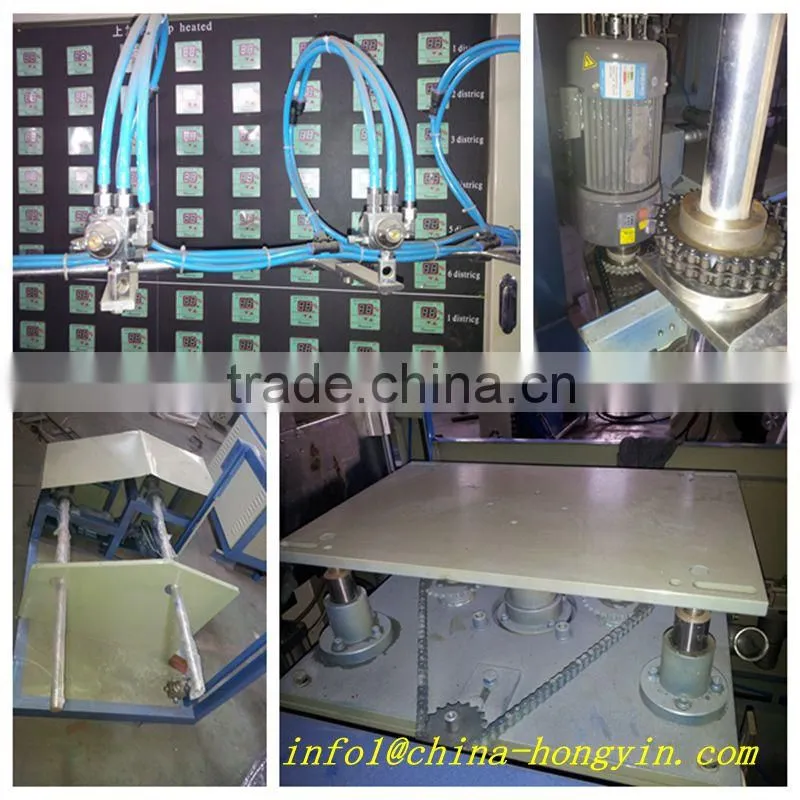

3. The details picture of vacuum forming machine

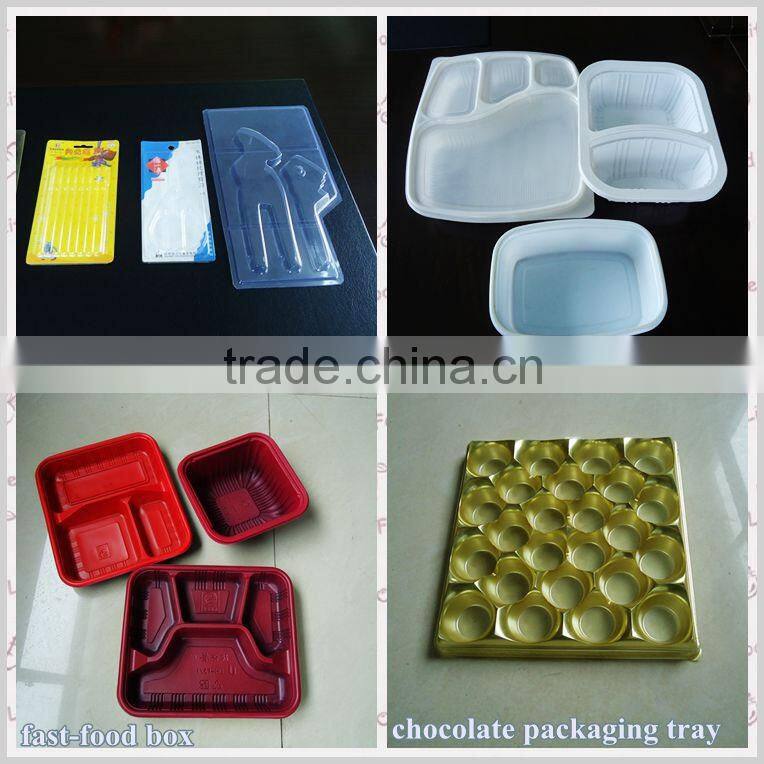

4. HY-710/1200 vacuum forming machine products samples
Packaging & Shipping
IV. About the wooden packing of plastic forming machine.
Above this part need 20 feet container to packaging.
Our Services
IV. About Ruian Hongyin Machinery Factory Service.
1. Purchase Service
Ruian Hongyin Company have a professional and efficiency working team. If you are new on the printing and packing area, Some samples of your products could be shown to us will be appreciated, we will give you specialized suggestion of whole work.
2. Installation Service:
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training, cost for return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.
3. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.
Company Information
About the Ruian Hongyin machinery Factory
Hongyin factory founded in 1985, Ruian Hongyin Machinery Factory is a manufacturer of plastic production and processing machinery.
Our factory currently covers an area of 8, 000 square meters of land, 5, 000 square meters of which are utilized by workshops.
The products we have done:
Automatic plastic BOPS thermoforming machine, semi-automatic plastic forming machine, plastic vacuum forming machine, In line cutting machine, cup forming machine, sheet extruder, three sides folding machine, sealing machine, cooling tower packing forming machine, laminating machine, EPE foamed film production line, etc.
Export market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe.
Welcome to vist our products, if you are interested in which machine please feel free and contact us .
