Ruian hongyin factory high speed plastic vacuum forming machine

Specifications

1.vacuum forming machine is suitable for forming PP, PS, PVC,PET,HIPS and etc.
2.Forming boxes,trays,lids,bowls and etc.

HY-710/1200 vacuum forming machine



I. Introduction of Machine
HY-710/1200 vacuum forming machine is controlled by micro PLC, infrared control the temperature by up oven. Match with hydraulic cutting machine, so that it can do feeding, heating, forming automatically and cutting on a second station.



II. Application Area:
It is suitable to for PP, HIPS, PS, PVC and PET plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.

III. Machine Picture







l  Automatic flexible vacuum bed:

Flexible width

450-710 mm

Bed length

1200mm



1. HY-710/1200 vacuum forming machine parameter



Model	HY-710/1200
Forming length	660-1200mm/ (can change)
Sheet width	610-760mm (can change)
Forming height	0-165mm(height)
Production speed	200-600times/hour(depend on the shape of product and thickness of sheet)
Mould-up times	1 or 2 times(free to install)
Mould-up move	Electromotion
Eject-die	Shake to mould-down
Electric furnace rating power	30 KW (largestest)
Tempering device	60 independent electronics non pole adjust(one control one)
Motor power	Whole machine 2.25 KW
Vacuum pump power	3.0 KW
Cooling-water machine power	3.37 KW
Power	380V 50HZ three phases
Air compressor	15KW/20HP (remarked by customer)
Overall diameter	(L)6600*(W)1450*(H)2800mm/260*59*110in



2. HY-710/1200 vacuum forming machine and other related auxiliary machine
the main forming machine need an alone cutting machine to finished cutting edge .

Auxiliary Equipment of Vacuum Forming Machine

No.	Name	Pictures	Parameter
1	HY-25N		Cutting force		25Tons
			Stroke Adjustment		10-90mm
			Table Area		1600x600mm
			Power Supply		380V,50/60HZ
			Motor Power		2.2kw
			Packing Size		2.2x1x1.7mm
			Weight		1600Kg
			Hydraulic oil 46#		80Liters
2	LG-3/8 screw air compressor		Capacity: 3 m³/min
			Working Pressure:0.8Mpa
			Motor Power:18.5kw
			Dimension :1.42*0.85*1.1m
			weight:600kg
			Usage: air supply
3	SFL-03F air cooling chiller		Cooling capacity 50HZ
			28541 Btu/h	8.36 KW		7188 Kcal/h	2.4 USRT
			compressor power: 2.5kw
			Water pump:0.5HP`
			Weight :150kg
			Dimension :1.1*0.6*1.25m
			Usage: cooling the recycling water to control moulds temp.
4	Air tank		capacity: 1 m³
			Dimension :1.05*1.05*2.4m
			Usage: air storage
5	1.5T Hydraulic Lifter		Capacity :1.5T
			Max height :1.6m
			Dimension :1.38*0.8*2.0m
			Weight : 350kg
			Usage: This machine just be used for unload the sheet roll and change the moulds.

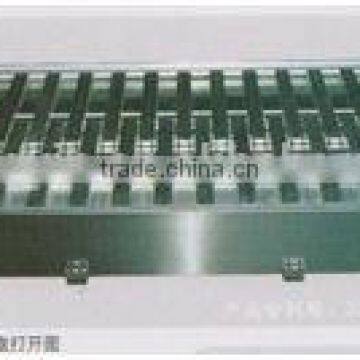

3. The details picture of vacuum forming machine

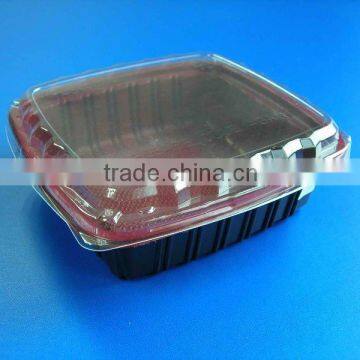

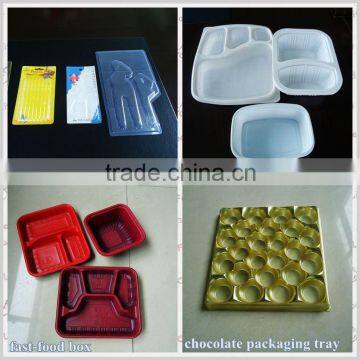

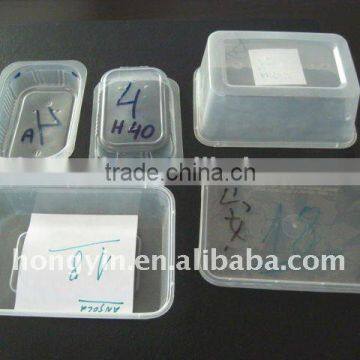

4. HY-710/1200 vacuum forming machine products samples





Packaging & Shipping



IV. About the wooden packing of plastic forming machine.

Above this part need 20 feet container to packaging.











Our Services

  IV. About Ruian Hongyin Machinery Factory Service.
1. Purchase Service
Ruian Hongyin Company have a professional and efficiency working team. If you are new on the printing and packing area, Some samples of your products could be shown to us will be appreciated, we will give you specialized suggestion of whole work.

2. Installation Service:
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training, cost for return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.

3. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.
