Specifications
1. Sensor : 2X CMOS Sensor .2. Display : 2.7 inch TFT LCD Panel or TV Out TV Out .
3. Video Size : 1280 x 480 30FPS .
Vehicle Car DVR Blackbox camera is more and more popular device for your car security, it likes the plane blackbox, it can record all things inside or outside of you car.

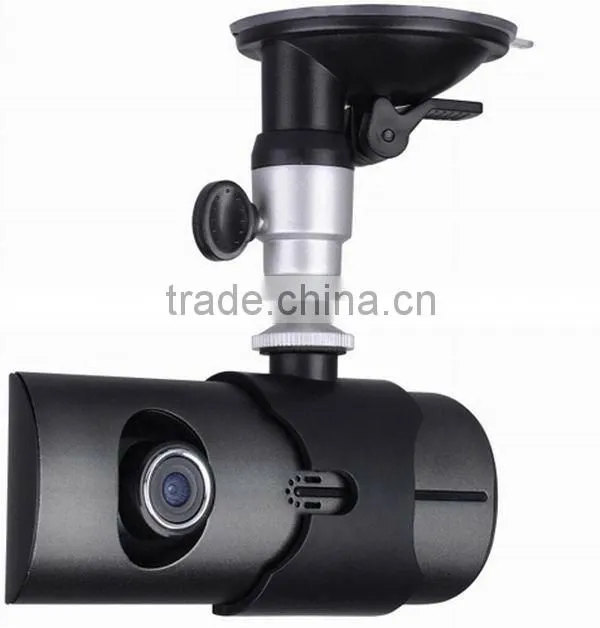

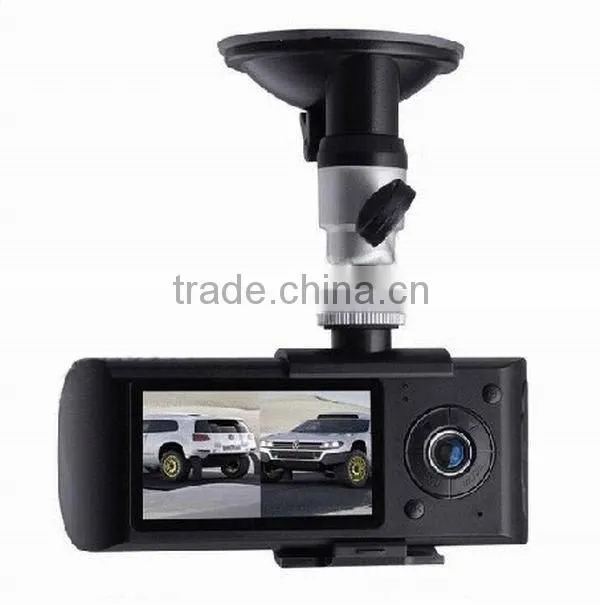

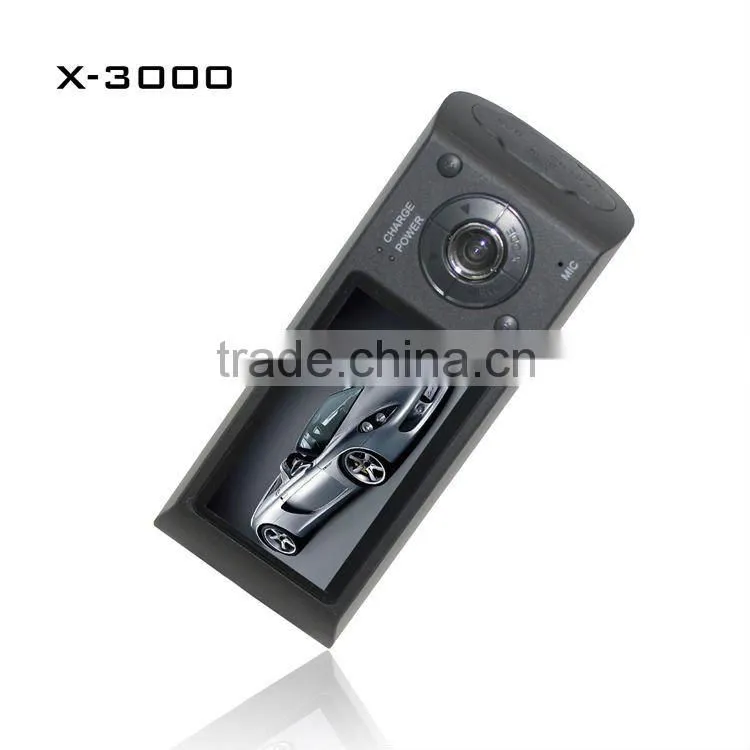

X3000 Mini Car DVR:
More Details Features
Dual Lens Video: can be connected to two CMOS Sensor, an application can monitor the vehicle dynamics, a monitor inside the vehicle
Uninterrupted continuous recording: general commercial products exist between the files in the file and about 0.5 to 3 seconds range time difference, this product uses proprietary file formats to reach without a break, missed seconds of continuous recording, make sure not to miss any important pictures.
Auto Loop recording: When the memory card is full will automatically overwrite the oldest video began circulating recording to ensure that the memory card is the latest of the latest movie, you do not have to worry about the memory card is full of problems.
Proprietary file systems: the use of proprietary file systems to access the SD card, compared to the general use of the SD card FAT file system is more efficient to use the SD card, SD card to reduce the number of writes to the SD card to extend the service life of .
Lock button to ensure that critical moment of the image is not overwritten disappear: encountered a critical moment, you can press the Lock button, from the press before and after 60 seconds of the saved image will be locked away and will not be overwritten.
Easy installation: no need to complicated settings, just to the initial installation date and time set, then the engine will start automatically after recording, turn off automatically stop recording. You can totally do not need to worry about how to use it to go.
Video playback feature: the screen itself has a need to watch the video recorded just can immediately switch to playback mode playback.
MJPG video format: film, each frame is independent and complete the real image, there is no H.264 or MPEG4 calculated prediction of the screen, so the image can provide the most convincing evidence.
Support GPS module: supports GPS module, when the GPS positioning to have, in addition to the use of GPS for time correction, the video will be put in latitude and longitude coordinates provided by GPS with a record of driving speed, with the application of PC-exclusive Player can playback the film program at the same time in the GPS information will be displayed, while Google Map link to display the vehicle location on a Google Map.
GPS Function:
Once per second when recording GPS Module will take the message, if a normal orientation to GPS time, GPS will be provided by latitude, longitude, date, time, speed and other information recorded in the use of Player playback information images can be presented, while the link to Google map latitude and longitude information corresponding map showing the location of this part may refer Player User Guide mentioned Google map feature.
Support G Sensor: supports G Sensor (gravity sensor), the G Sensor recording will be provided by the X, Y, Z axis information be recorded, use the Player to playback the movie will be shown G Sensor of the information, provide users with more travel information. G Sensor recording will provide a record of information in XYZ, and then use the Player will playback at the time of the XYZ axis of the film information displayed.
SYSTEM SPECIFICATIONS
| Two Channels Car Video Recorder With GPS | |||||||||
| Two Channels with GPS and G-Sensor | |||||||||
| Color | Black | ||||||||
| Video Resolution | CH2:1280*480(30fps) CH1: 640*480 (30fps) | ||||||||
| Photo Resolution | No | ||||||||
| Image Sensor | 2M CMOS Sensor,1/4''light-sensing surface area | ||||||||
| Lens | 140 degree for front camera and 120 degree for back camera ultra wide angle lens | ||||||||
| Display screen | 2.7 inch 16:9 TFT LCD | ||||||||
| Video Format | AVI | ||||||||
| Compression Type | MJPG | ||||||||
| Photo Format | No | ||||||||
| G-Sensor | Support | ||||||||
| Recording medium | ExternalHigh Speed(Above Class4) Micro SD Card, up to 32GB | ||||||||
| Data Transfer | No | ||||||||
| Zoom | No | ||||||||
| GPS With Google Map | Yes | ||||||||
| Optional OSD Language | Support Simplified Chinese/Traditional Chinese/Japanese/Korean/Russian/German/English | ||||||||
| Cycle Recording | No Options | ||||||||
| Seamless Recording | Support | ||||||||
| Microphone/speaker | Built-in | ||||||||
| TV Output | NTSC/PAL | ||||||||
| Motion Detect | Support | ||||||||
| Battery Capacity | 500mAH/3.7V Polymer Li-ion battery | ||||||||
| Audio or Mute | Support | ||||||||
| Webcam | No | ||||||||
| Battery Charging Time | 2-3Hours | ||||||||
| Product Weight | Around 100g | ||||||||
| Product Size | 125mm*45mm*30mm | ||||||||

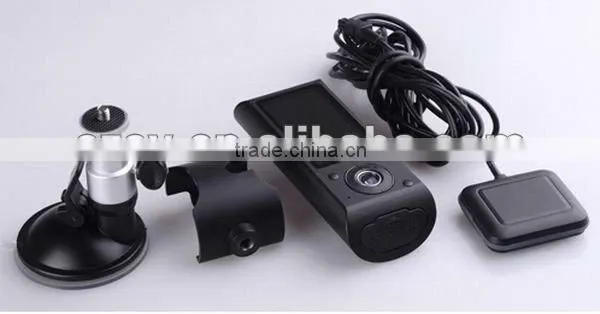

| Accessories | User Manual,Warranty Card,GPS Antenna,Glue Sticker, Car Charger, Mount Bracket | ||||||||
Steps :
The Car DVR is a specialized camera, so the video resolution and the frame is the most important.Two years ago, most car blackbox are 640x480 piexl at 10-20FPS, now in 2012 most new released car camera can record 720P or 1080P HD videos at 20-30fps, so, the video is more clearly and Smoot, And of course the price is a little expensive too.If your budget is more than US$80.00,maybe you can consider to get a HD car dvr.
Second factor to consider is the number of the cameras, Most car dvr only has one camera which only record the thing in front of your car.If you want to record the thing inside of your car, you can choose a dual camera car dvr blackbox, then one camera record in front of you car and another camera record things inside of your card .
Third is the night vision function, there are two kinds of night vision functions in car dvr, LED night vision and infrared IR night vison. IR night vision will be better but price will a little expensive.
Last ismiscellaneous function to consider, such as GPS logger, G-sensor. For somebody ,the two functions is very important too. For the GPS Logger function, it can record all the GPS information to the memory card, use the special software, you can track the path of travel for your vehicle. Built-in gravity sensor G-Sensor can record the gravity sensing information. Using random specialized software, you can see the video at computer, at the same time read the gravity sensing data to trace accident and abnormal circumstance occurred in the running process.
