H.V. HRC Current Limiting Fuse/high Voltage Fuse for Transformer

H.V. HRC Current Limiting Fuse/high Voltage Fuse for Transformer thumbnail-1
H.V. HRC Current Limiting Fuse/high Voltage Fuse for Transformer photo-1
Negotiable MOQ: 4 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
HLK
Model Number:
XRNP 3.6~40.5KV 0.2~4A
Contact Supplier Request Quote Chat Now
Sichuan Hongli Electrical Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name HLK
Model Number XRNP 3.6~40.5KV 0.2~4A
Usage High Voltage
Breaking Capacity Other, High, 50KA-63KA
Safety Standards IEC

 Product  introduction

              This product can be used in indoor system of AC 50HZ and rated voltage of 3.6—40.5KV to protect the voltage muntual-inductor from overloading and circuit brak.(Tested by Nation high-voltage quality Supervising and Testing Center ,in accordancek of GB15166.2 and IEC282-1).



Typical applications



           Products can be used to protect the voltage muntual-inductor from overloading and circuit brak.

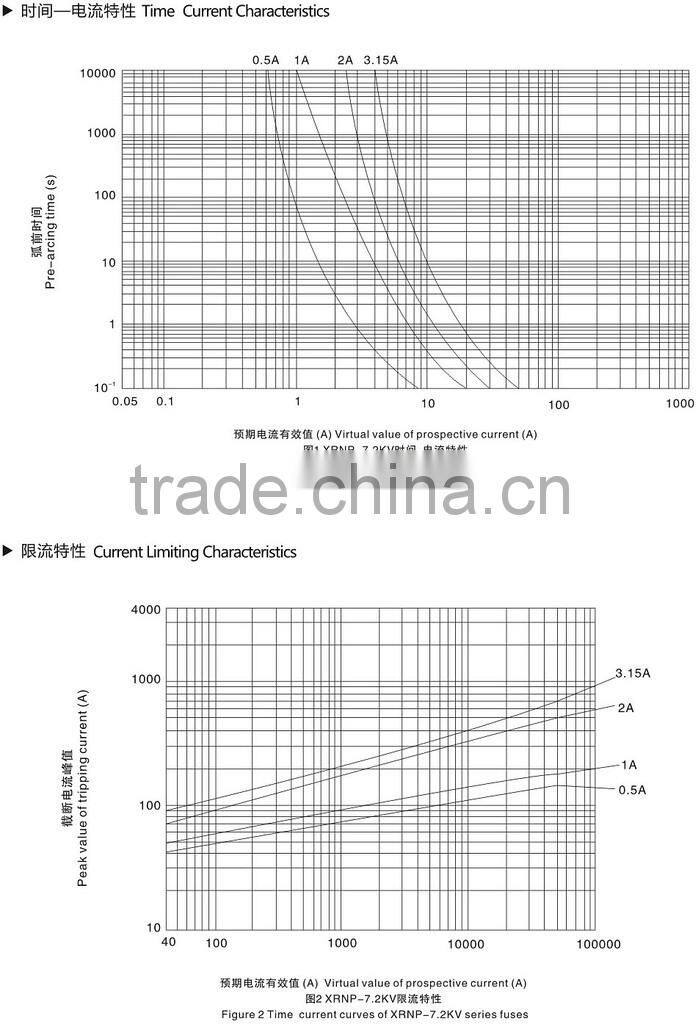

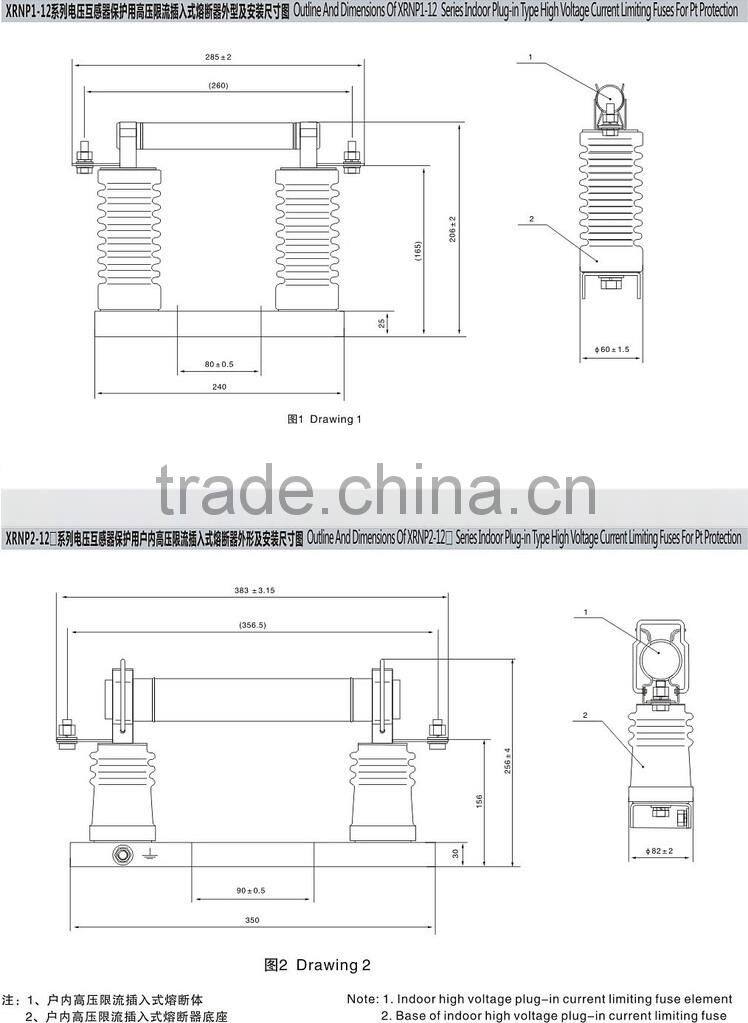

Specifications



H.V. HRC current limiting fuse/high voltage fuse for transformerH.V. HRC current limiting fuse/high voltage fuse for transformer

H.V. HRC current limiting fuse/high voltage fuse for transformer



XRNP1 3.6/40.5Kv(d=φ25mm)

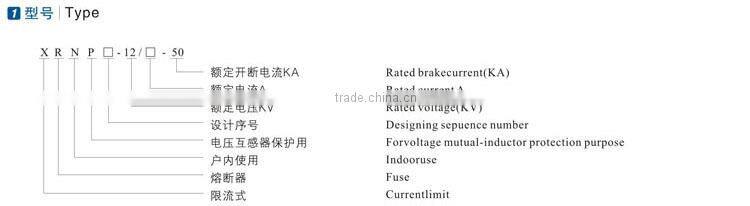

Model

Rated voltage(KV)

Rated current(A)

Length L(mm)

Rated breaking current(KA)

XRNP1

3.6

7.2

12

0.2

195

50

0.3

0.5

1

2

3.15

4

XRNP1

24

0.2

354

0.3

0.5

1

2

3.15

XRNP1

40.5

0.2

465

0.3

0.5

1

2

3.15



XRNP2 3.6/40.5Kv(d=φ51mm)

Model

Rated voltage(KV)

Rated current(A)

Length L(mm)

Rated breaking current(KA)

XRNP2

3.6

7.2

12

0.5

192

50

1

2

3.15

5

7.5

10

XRNP2

24

0.5

367

1

2

3.15

5

7.5

XRNP2

40.5

0.5

442

1

2

3.15

5

H.V. HRC current limiting fuse/high voltage fuse for transformer



Shipping Term



1.We arrange shipment within three working days after confirming buyer's payment.

2.We usually ship via Global express company: UPS/DHL/TNT/EMS/Fedex.if you have better express service comapny, Pls tell us then. We'll choose your preferred ways. For the Countries & Regions where EMS cannot deliver,pls choose other shipping ways.

3.We are not responsible for any accidents, delays or other issues that are the responsibility of the express company.



            If you have any question, please free contact us via E-mail or Trademanager !
