Help CenterFJL-660PC II Double-Layer Plastic Sheet Co-Extrusion Machine
Related Products
-
LY PP SHEET EXTRUSION LINE(Thin Sheet)NegotiableMOQ: 1 Unit -
Mono-layer Flow Cating Film Extrusion LineUS$ 50,000 - 60,000MOQ: 1 Set
-
FJLB Series Plastic Sheet Production LineUS$ 1 - 2MOQ: 1 Set
-
FJL-660PC 110 Plastic Sheet ExtruderNegotiableMOQ: 1 Set
-
FJL-Mono-layer PP/PS Sheet Extrusion LineNegotiableMOQ: 1 Set
Specifications

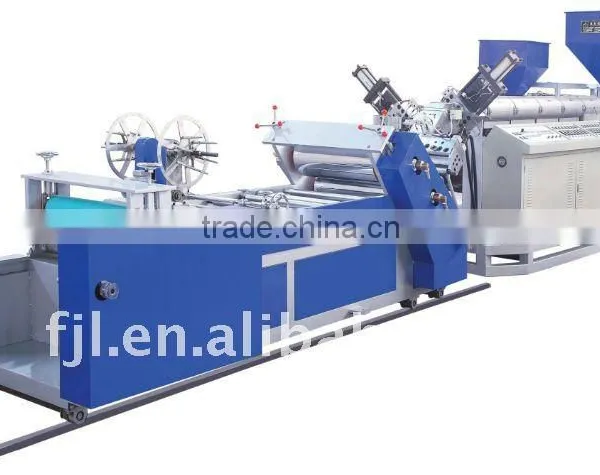

FJL-660PC II Double-Layer Plastic Sheet Co-Extrusion Machine can make double layer PP/PS sheet from 0.3-2mm.I. QUANTITY: ONE SET
II. MAIN PARAMETERS:
1. Processed Material: PP/PS Granule/Powder
2. Width of finished product after slitted: 660mm
3. Thickness of the finished product: 0.3-2.0mm
4. Output capacity of extruder: 145-210Kg/h
5. Power Supply: 3-Phase, 380V, 50HZ
6. Installed Power Capacity: 120KW
7. Overall Dimension: 12.5*2.0*2.2m
8. Approx.Weight: 7 Ton
9. Machine frame: use square steel
III.Configuration and specification:
1. Main Extruder: one
a. Hard-tooth Gearbox: one
The body of the gearbox is made from high quality alloy steel. The teeth deal with grinding and peeling eventually, which provides different characteristics of damping, antifriction, low-noise, long using period etc.
b. The screw
Material: high quality nitrided steel-38CrMoAlA
Nitration depth: 0.4-0.7mm, hardness≥940HV, fragility is 2 grades.
c. Barrels
Material: high quality nitrided steel-38CrMoAlA
Nitration depth: 0.4-0.7mm, hardness≥940HV, fragility is 2 grades.
d. Heating zones: 4 zones
e. The electric heater is made of stainless steel. Every electric heater has a specially designed tunnel for heat radiating.
f. Main motor power: 45KW, 6-gear, FC; rotary speed: 980r/min
g. AC motor with an inverter control
h. Screw diameter: 110mm
i. L/D: 32:1
NO.1 Auxiliary Extruder
j. Hard-tooth Gearbox: one
The body of the gearbox is made from cast steel. The teeth deal with grinding and peeling eventually, which provides different characteristics of damping, antifriction, low-noise, long using period etc.
k. The screw
Material: high quality nitrided steel-38CrMoAlA
Nitration depth: 0.4-0.7mm, hardness≥940HV, fragility is 2 grades.
l. Barrels
Material: high quality nitrided steel-38CrMoAlA
Nitration depth: 0.4-0.7mm, hardness≥940HV, fragility is 2 grades.
m. Heating zones: 4 zones
n. The electric heater is made of stainless steel. Every electric heater has a specially designed tunnel for heat radiating.
o. Main motor power: 30KW, 6-gear, FC; rotary speed: 980r/min
p. AC motor with an inverter control
q. Screw diameter: 80mm
r. L/D: 28:1
2. Automatic fast screen changer with double-sieve: one set
a. Its special internal structure provides a excellent seal effect
b. The parts of Screen Changer consisting the mould are made of alloy steel, which experienced heat treatment strictly.
c. Control style: complete hydraulic pressure
d. Pressure adjuster: one
e. Motor Power: 2.2KW
3. Co-extrusion Divider: with AB structure
4. Die-Head
a. Material: super heat resistance alloy steel
b. Structure: T-shaped, Clothes bracket flow channel, polished inner mold surface.
c. The flows are plated chrome. And the flow surface is polished until it like mirror.
d. The outlets of the mould can be adjusted with the adjustable screws slightly.
e. There are 3 heating zones in the mould and 2 heating zones on the connections
f. The heat means: heating inside by bar heaters
g. The effective width of the die head:750mm
5. Calender roll stack: one
a. Structure: the three-rollers calender lay on the round with 45° slantways,
b. Roll number: 3
c. Diameter of roll: 350mm
d. Roll length: 770mm
e. Wall thickness of the roll: ≥25mm
f. Roll surface treatment: 14 grade super treatment of mirror polishing.
g. Water Heating Equipment: one set
h. Media: water
i. The three rollers are controlled by one motor (6-gear, 3.7kw, FC) with reducer. The rotary speed of the rollers will be synchronized adjusted
j. Self-lock style forward and backward movement system of the calender, which is controlled by 3-phase induction Motor(Output: 1HP, 750W)
k. Roller Temperature Controller: one set
6. Air cooling stand: one
a. Number of the transmission rollers: 7
b. Diameter of the rollers: 55mm*7pieces; 110mm*1piece
c. Roller length: 740mm
d. Roller surface treatment: plated chrome and half-mirror polishing
7. Trimming unit: one
Slitting knife: 2pcs
8. Haul off unit: one
a. Haul off steel roller: one
Diameter of the roller:180mm
Length of the roller: 740mm
Surface treatment: plated chrome and half-mirror polishing
b. Haul off rubber roller: one
Diameter of the roller:180mm
Length of the roller: 740mm
Surface treatment: coated erosion resistance, heat resistance and friction resistance rubber and polished.
c. Motor: One unit (6-gear, 2.2kw, FC)
d. AC motor with an inverter
9. Two-shaft Rewinder:
l Shaft number: two
l 3" winding shaft,
l Control by a high-grade torque motor
10. Waste sheet rewinder(one set)
11. Electronic Control Cabinet: one set
