Specifications
Egg tray forming machine can be used for forming disposable fast-food containers, instant noodle bowls, western dinner plate etcAutomatic Vacuum Forming Machine

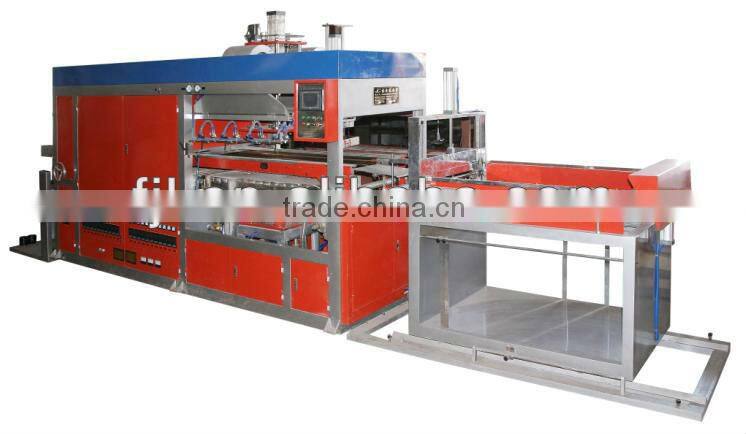

FJL-700/1200ZK-B egg tray forming machine is suitable for processing those reeling sheets including PVC, PS, PSP, PP, PET, PP etc. Under various specifications, it can be used for the forming of disposable fast-food containers, instant noodle bowls, western dinner plates, food coverings (such as sugar boxes, cake boxes and ice cream cups etc. ), articles of daily use, hardware coverings, children's toys and trays for raising seedlings of rice, vegetables and other plantations.
CHARACTER OF CONSTRUCTION:
1. The machine is combined with pneumatic, mechanical and electric drive to achieve automatic continuous process of feeding sheet, moulding, demoulding, section cutting and stacking. PLC control system makes the machine working more reliably.
2. Equipped with a feeding device of a precision retarding electric machine, and geared by a double-lined needle-point chain, this machine can achieve both accuracy and stability during high-speed operations, what is more, it is also easy to make quick adjustments so as to make good use of the plastic sheets to reduce waste.
3. Equipped with a unique divided temperature control system and a precision infrared ceramic heater, this machine can get the most stable and even temperature, and at the same time achieve electricity saving.
4. This machine also possesses some special features: It can be manually pre-started, the switch console can be moved up and down according to needs, it can achieve a delaying vacuum state or a vacuum state for a second time, and it can be put on patterns for a second time, also it can draw off patterns through shaking. All these special features can help to accelerate the forming speed and ensure the quality of the products.
5. The major electronic devices and pneumatic components are manufactured abroad, which can ensure the stability, safety and durability of this machine.

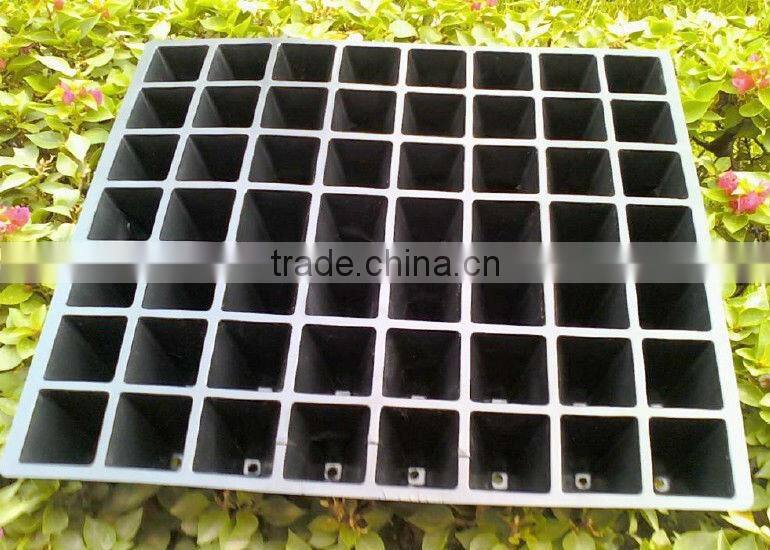

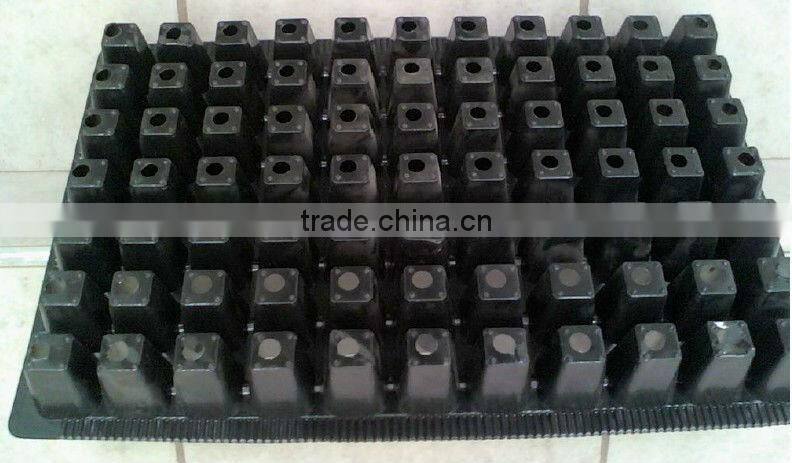

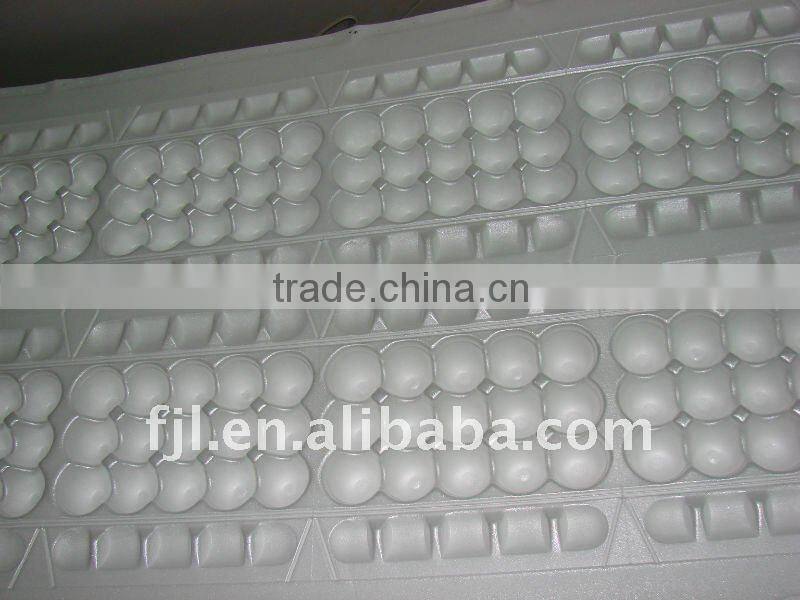

Samples of products:
Main Technical Parameter:
| Model | FJL-700/1200 ZK-B |
| Approximate Forming Area | 700 x 1200 mm |
| Moulds / min approx. during production |
3-12 |
| Approx. Sheet width required for feeding. | 510~ 740mm |
| Mode of cutting arrangement. | Off-mould. |
| Sheet thickness Range. |
0.1 1.2 mm |
| Material | PP,PS,PVC,PET |
| Max. Draw depth | Negative Mould ≤ 180 mm |
| Positive Mould ≤ 200mm | |
| Heating arrangement | Top + bottom heating with IR Ceramic Heater |
| Total Heating Power | 40KW |
| Temperature Controller & Thermocouple. | PID K-Type |
| Type of Mould | Multi cavity Multi row. |
| Dimensions | 7.8mX1.4 mX 2.2m |
| Weight | 3.2T |
