Specifications
plastic pots forming machine1.PLC controlled
2.big forming area
3.full automatic
4.delivery time: 40working days
FJL-700/1200ZK-B plastic pots forming machine
USAGE:
FJL-700/1200ZK-B Vacuum Forming Maching is suitable for processing those reeling sheets including PVC, PS, PSP, PP, PET, PP etc. Under various specifications, it can be used for the forming of disposable fast-food containers, instant noodle bowls, western dinner plates, food coverings (such as sugar boxes, cake boxes and ice cream cups etc. ), articles of daily use, hardware coverings, children's toys and trays for raising seedlings of rice, vegetables and other plantations.
CHARACTER OF CONSTRUCTION:
1. The machine is combined with pneumatic, mechanical and electric drive to achieve automatic continuous process of feeding sheet, moulding, demoulding, section cutting and stacking. PLC control system makes the machine working more reliably.
2. Equipped with a feeding device of a precision retarding electric machine, and geared by a double-lined needle-point chain, this machine can achieve both accuracy and stability during high-speed operations, what is more, it is also easy to make quick adjustments so as to make good use of the plastic sheets to reduce waste.

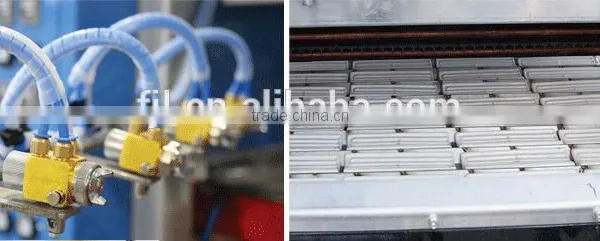

3. Equipped with a unique divided temperature control system and a precision infrared ceramic heater, this machine can get the most stable and even temperature, and at the same time achieve electricity saving.
4. This machine also possesses some special features: It can be manually pre-started, the switch console can be moved up and down according to needs, it can achieve a delaying vacuum state or a vacuum state for a second time, and it can be put on patterns for a second time, also it can draw off patterns through shaking. All these special features can help to accelerate the forming speed and ensure the quality of the products.
5. The major electronic devices and pneumatic components are manufactured abroad, which can ensure the stability, safety and durability of this machine.

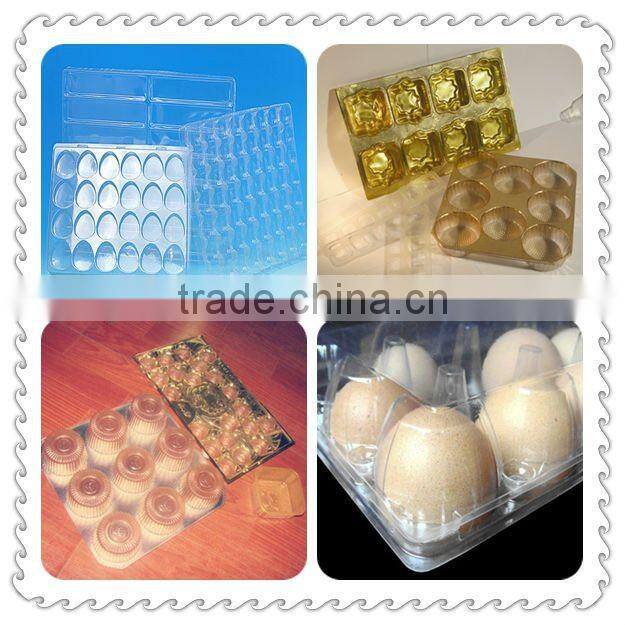

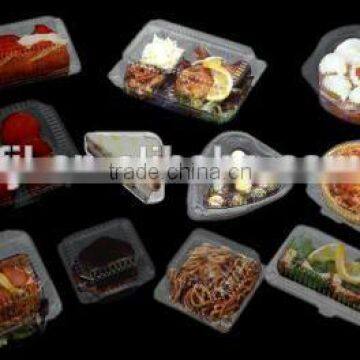

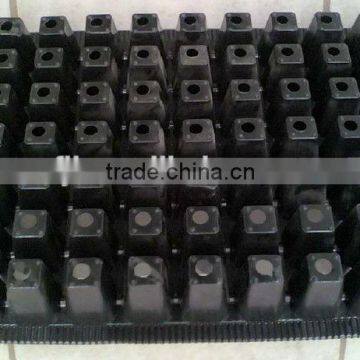

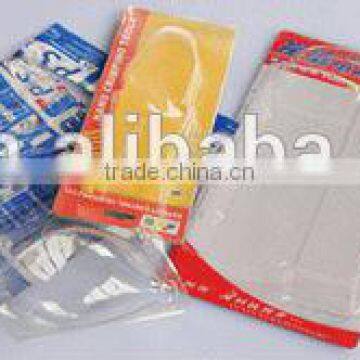

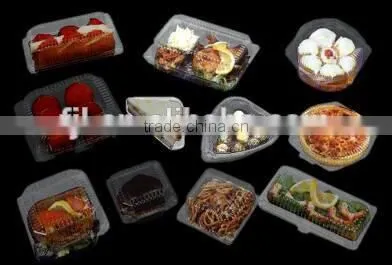

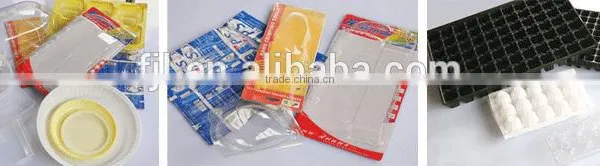

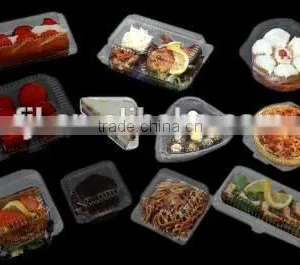

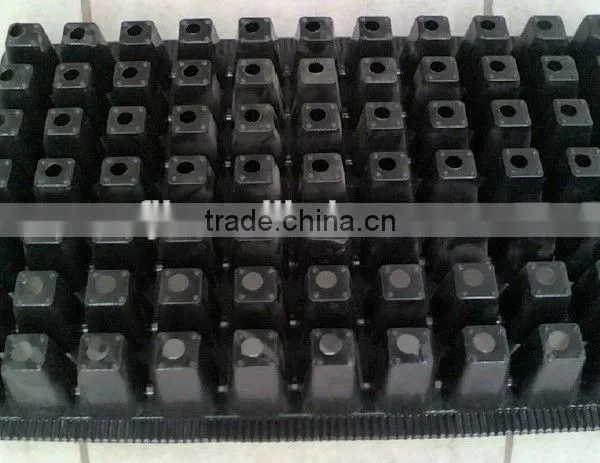

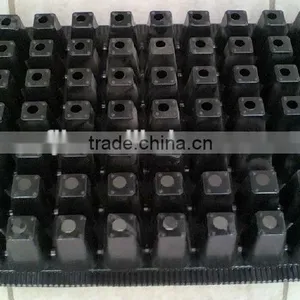

Samples of Products:
Main Technical Parameter:
Model |
FJL-700/1200ZK-A |
FJL-700/1200ZK-B |
Sheet Width |
510-740mm |
|
Sheet Thickness |
0.1-1.2mm |
|
Forming Length |
700-1200mm |
|
Forming Width |
480-700mm |
|
Max.forming Depth |
Negative Mould≤180mm |
Positive Mould≤200mm |
Sheet Material |
PP.PS.HIPS.PET.PVC |
|
Running Speed |
3-12Moulds/Min |
|
Mode of cutting arrangement |
Off Mould |
|
Heater arrangement |
Top Heating With IR Ceramic Heater |
Top+Bottom Heating With IR Ceramic Heater |
Heating Power |
20KW |
35KW |
Vacuum Ration |
100m3/h |
|
Air Consumptions |
1.2m3/h |
|
Water Consumptions |
0.6-0.8m3/h |
|
Dimension |
7.8*1.4*2.2m |
|
Weight(T) |
3 |
3.2 |
Power Supply |
380V/50HZ Three phase four wires |
|
THE AUXILIARY EQUIPMENTS

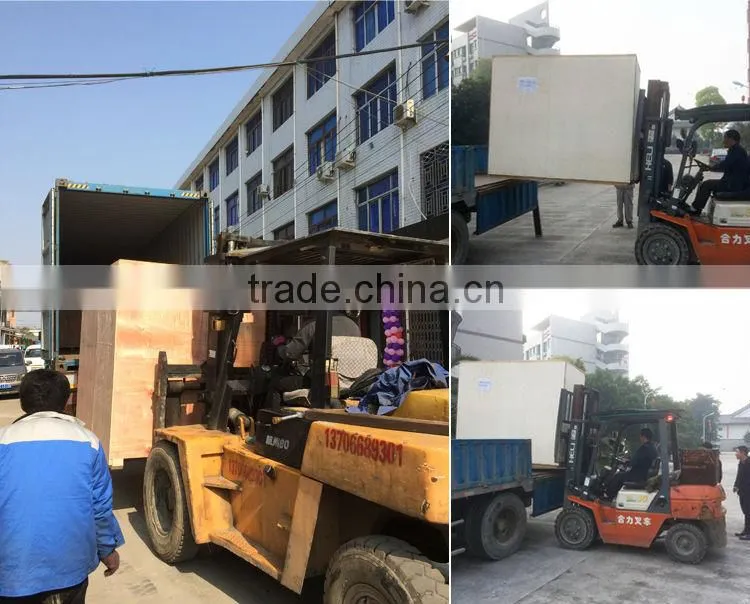

WOODEN CASE
Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is “Credit by Quality, Market by Service”.
We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.
machine adjustment and installation
we can send technicians go to customers' country for mahchine adjustment and installation
gaurantee time and after-sale
one year guarantee time, after one year , we have professional after-sales department providing best service if any problems.
Payment term: 30% as down payment by T/T; 70% by T/T before delivery and after inspection;
Delivery time: Within 40 working days since the date of receiving down payment
