Help CenterSZ-750 II Plastic Cup Thermoforming Machine( Automatic Servomotor Control)
Related Products
-
FJL-660SB-D Plastic Cup Making MachineUS$ 28,000 - 30,000MOQ: 1 Set -
FJL-660SB Plastic Bowls Making Thermoforming MachineUS$ 22,000 - 25,000MOQ: 1 Set
-
FJL-660SB-1 Cold Drinking Cups Making Thermoforming MachineUS$ 22,000 - 25,000MOQ: 1 Set
-
FJL-660SB-L Plastic Lid Making Thermoforming MachineUS$ 22,000 - 25,000MOQ: 1 Set
-
Flowerpot Making MachineUS$ 30,000 - 35,000MOQ: 1 Set
Specifications

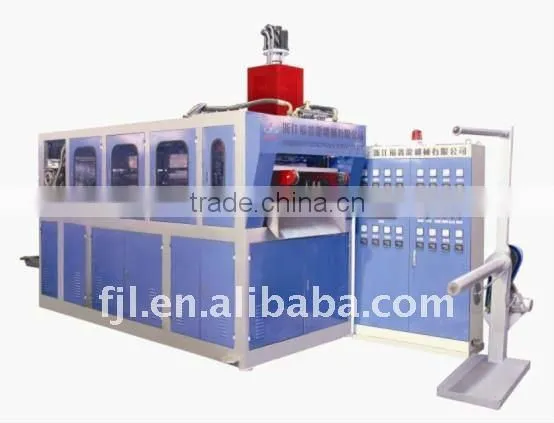

This is full-automatic plastic cup making machine which adopts servo-motor to feed and draw sheet. It controls by PLC.Main Features:
Full complete production line of plastic cups
Full automatic: adopts servo motor and PLC control
This is full-automatic plastic cup making machine which adopts servo-motor to feed and draw sheet. It controls by PLC and touch screen.
1)It is used to produces such plastic products as disposable plastic cups, plastic bowls, ice cream cups,
cold drinking cups, yoghurt cups, instant-food boxes and bowls, plastic dishes, plastic trays, plastic covers,
plastic lids, vessels for fast food and pharmaceutical linings.
2) Its forming sheets as PP, PVC, PS, and PET and other sheet.
3) It adopts PLC and touch screen control equipment operation.
4) Mould adopts four cell guides position fixing.
5) Mould movement adopts hydraulic pressure drive.
6) Mechanism movement adds automatically oil to lubricate at certain time.
7) Temperature controller module controls each temperature area.
8) It can finish production at one time through sheet feeding, heating, stretching, forming and in-mould cutting.

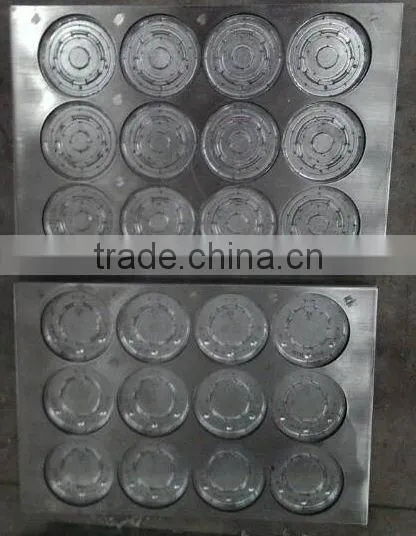

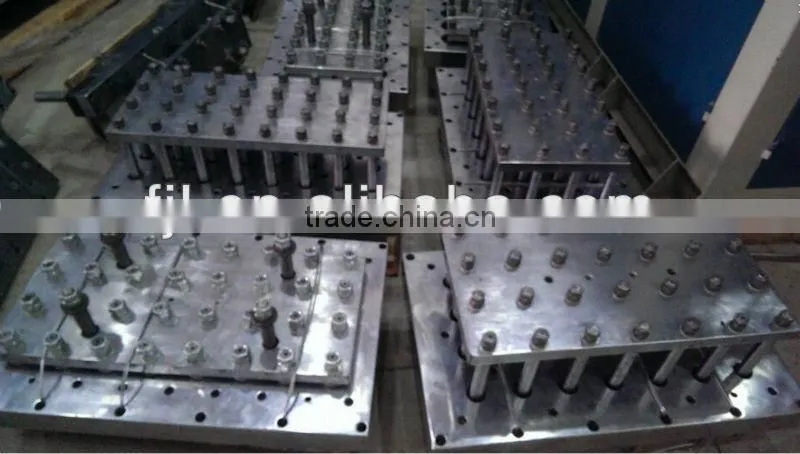

Samples of Mold:
Main Technical Parameters:
Model |
SZ-680 |
Max. Forming Area |
720 x 420 mm |
Running Speed |
15-32 cycles/min(according to sheet thickness, material used and product shape) |
Require Sheet Width |
500 – 660 mm |
Mode of Cutting Arrangement. |
In mould automatic |
Sheet Thickness Range |
0.20 – 2.0 mm |
Required Material |
PP, PS, HIPS, PET, PVC |
Max. Forming Depth |
130 mm |
Main Motor Power |
15KW |
Max. Sheet Reel Dia. |
800 mm |
Heating System |
Top + bottom Heating with IR Ceramic Heater, total 15 heating zones. |
Temperature Controller & Thermocouple |
PID K-Type |
Type of Mould |
1 - 4 Rows |
Water Consumption |
0.5-1.0m3/h(recycled) |
Air Consumption |
1.3-1.6m3/min, 0.6-0.8Mpa |
Approx. Electricity Consumption |
45KW/hr |
Dimension |
3500×1500×2500mm |
Weight |
4800Kg |

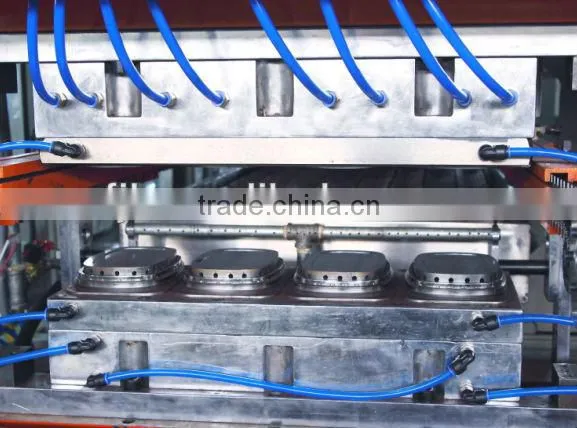

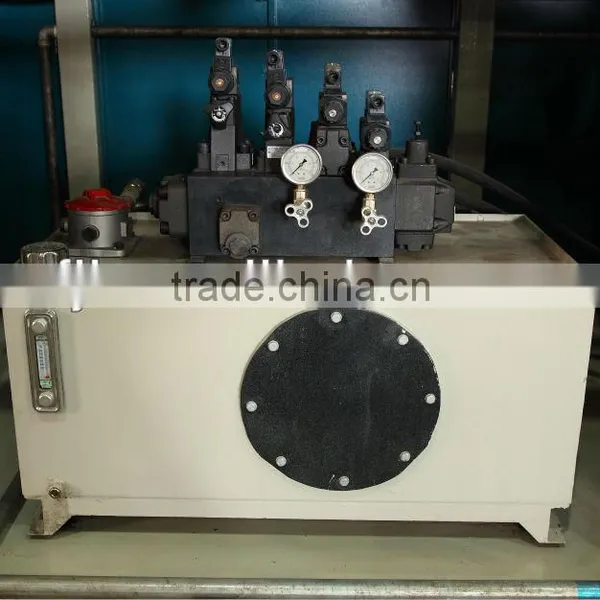

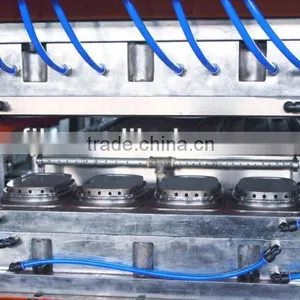

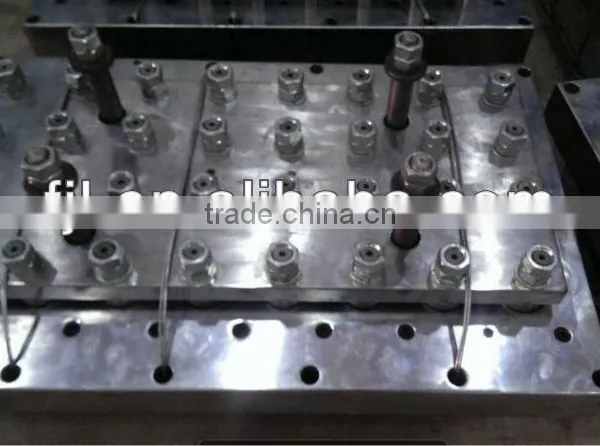

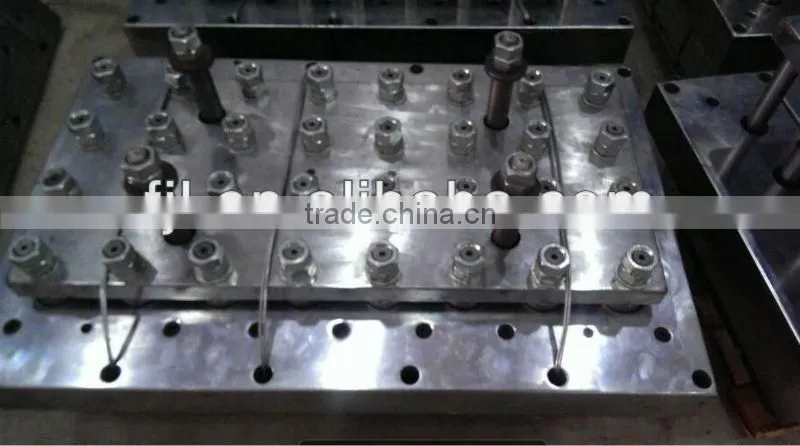

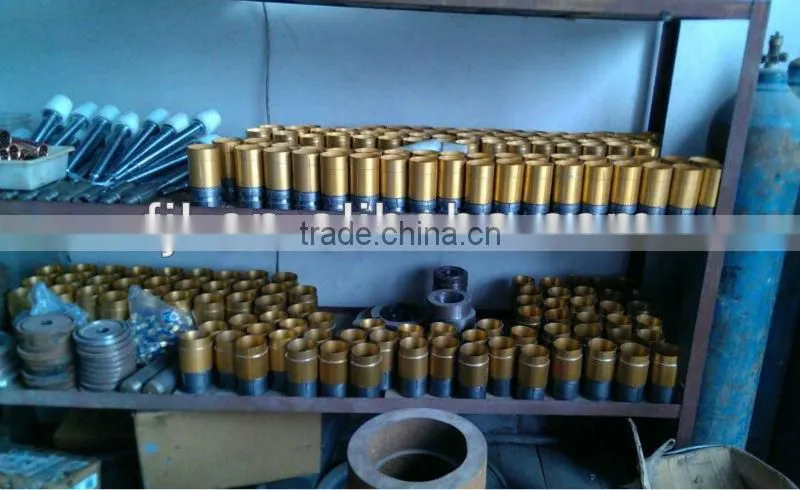

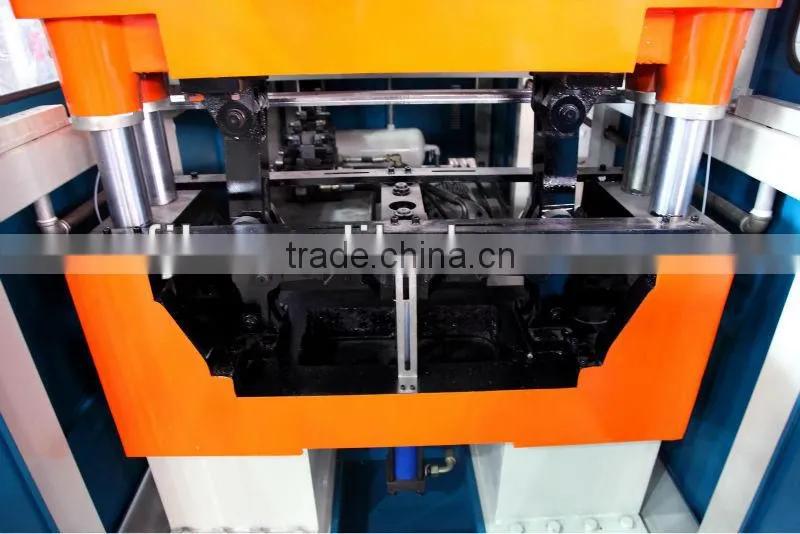

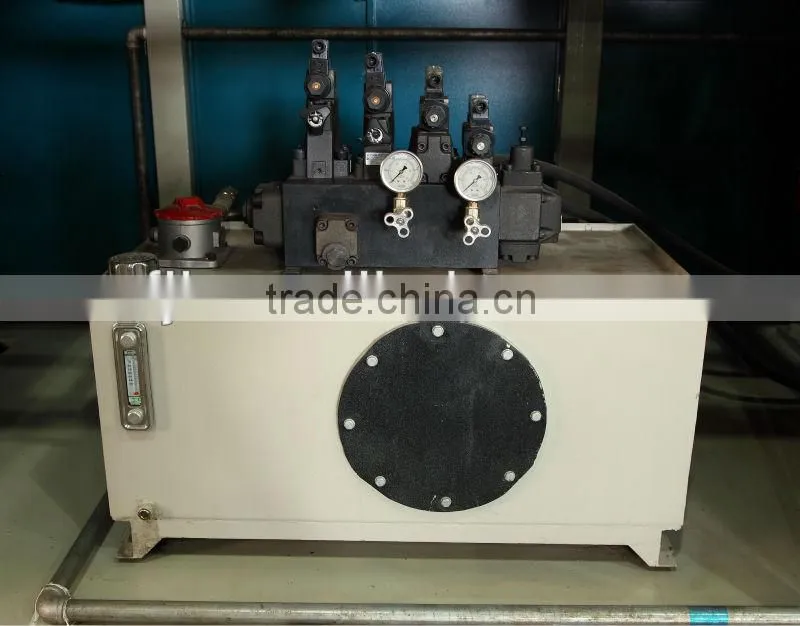

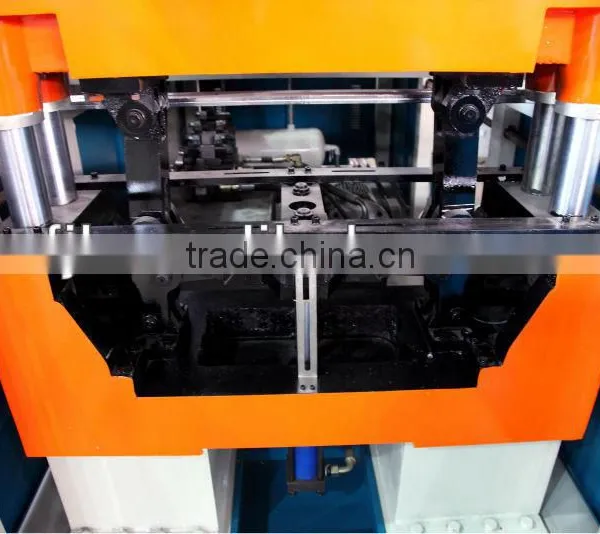

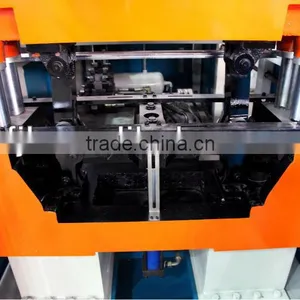

Inside pictures of SZ-750II Thermoforming Machine:
If more questions,freely contact Ms Sarah:
Skype:fuxinlong01
Mobile:86-18358758585
