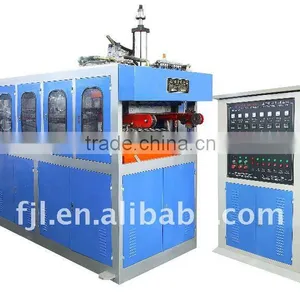

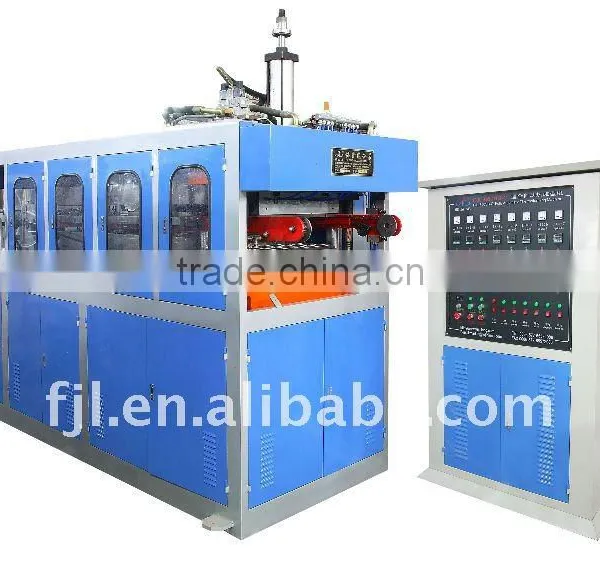

Help CenterFJL-660SB Plastic Bowls Making Thermoforming Machine
Related Products
-
FJL-660SB-1 Cold Drinking Cups Making Thermoforming MachineUS$ 22,000 - 25,000MOQ: 1 Set -
FJL-660SB-L Plastic Lid Making Thermoforming MachineUS$ 22,000 - 25,000MOQ: 1 Set
-
Flowerpot Making MachineUS$ 30,000 - 35,000MOQ: 1 Set
-
Automatic Disposable Plastic Cup Making MachineUS$ 20,500 - 45,000MOQ: 1 Set
-
Automatic Disposable Glass Making MachineUS$ 20,500 - 43,800MOQ: 1 Set
Specifications

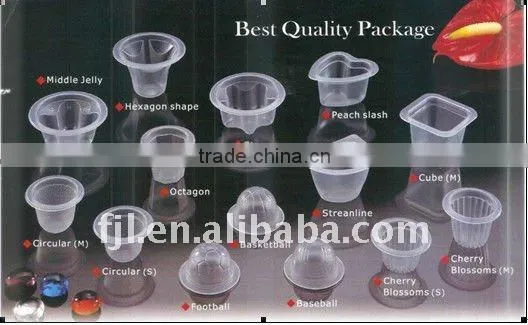

Cup Making thermoforming Machine Mainly used for producing disposable plastic vessels,such as teacup,milk /ice-cream cup, jellyUsage:
FJL-660SB-B Fully-Automatic Plastic Cup Thermoforming Machine is used to produce disposable water drinking cups, ice-cream cups, disposable cup/bowl for yoghurt, lids, dishes, plates and etc.
Major Construction Features:
FJL-660SB-B Fully-Automatic Plastic Cup Thermoforming Machine is new equipment, which has been developed and produced with many years of machine producing experiences of our company, it uses stable hydraulic system and pneumatic technology to control together, its operation is stable, noise is small, mold locking ability is strong and quality is high. It mainly consists of formed machine, material rack, material receiving machine and screen controlled by electricity.
1. The machine is completely automatic, productive speed is fast. Different products can be produced with different molds.
2. It uses import famous brands of electric and pneumatic fittings, so the operation is stable, quality is reliable and life is long.
3. The design of the mold is advanced and special, heat the thermoplastic plastic flake board and put on the mold, pull the piston, give the pressure to the air, keep the flake board close to the inside of the mold to form, then, cut and automatically blow the product. The structure of the whole machine is compact, one mold has all the functions, like pressure giving, forming, cutting, cooling, and finished product blowing, so the process is short, quality of the finished product is high and matches with national sanitary standard.
Main Technical Parameter:
1. Material Used: PPHIPSPETPVC Sheet Roll
2. Sheet Width: 300-660mm
3. Sheet Thickness: 0.2-2mm
4. Forming Speed: 15-30moulds/minute
5. Forming Depth: ≤125(mm)
6. Max. Sheet Roll Dia.: 800mm
7. Max. Forming Area: 650*220(mm)
8. Main Motor Power: 7.5KW
9. Approx. Electricity consumption: 30KW
10. Air Pressure: 0.6-0.8MPa
11. Water consumption: 0.5-1.8m3/h
12. Air consumption: 1.3-1.6m3/min
13. Overall Dimension: 3.15*1.5*2.3(m)
14. Weight: 4200Kg
15. Power Supply: 380V/50HZ, Tri-phase, Four-wire
