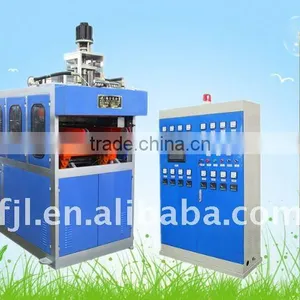

Help CenterFJL-660SB-D Plastic Cup Making Machine
Related Products
-
FJL-660SB Plastic Bowls Making Thermoforming MachineUS$ 22,000 - 25,000MOQ: 1 Set -
FJL-660SB-1 Cold Drinking Cups Making Thermoforming MachineUS$ 22,000 - 25,000MOQ: 1 Set
-
FJL-660SB-L Plastic Lid Making Thermoforming MachineUS$ 22,000 - 25,000MOQ: 1 Set
-
Flowerpot Making MachineUS$ 30,000 - 35,000MOQ: 1 Set
-
Automatic Disposable Plastic Cup Making MachineUS$ 20,500 - 45,000MOQ: 1 Set
Specifications

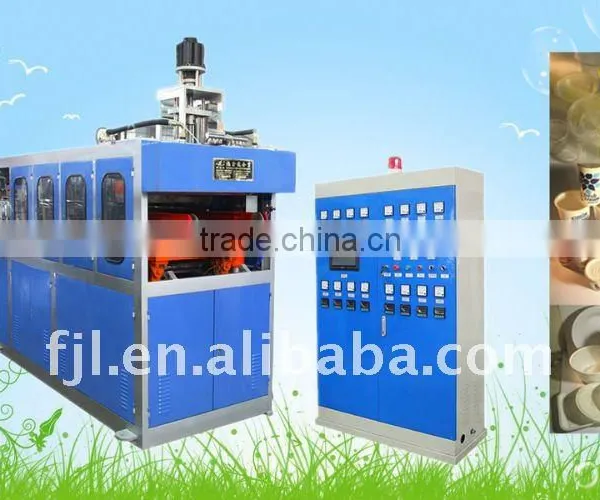

This is full-automatic plastic cup making machine which adopts servo-motor to feed and draw sheet. It controls by PLC and touchMain Features:
Full complete production line of plastic cups
Full automatic: adopts servo motor and PLC control
This is full-automatic plastic cup making machine which adopts servo-motor to feed and draw sheet. It controls by PLC and touch screen.
1)It is used to produces such plastic products as disposable plastic cups, plastic bowls, ice cream cups, cold drinking cups, yoghurt cups, instant-food boxes and bowls, plastic dishes, plastic trays, plastic covers, plastic lids, vessels for fast food and pharmaceutical linings.
2) Its forming sheets as PP, PVC, PS, HIPS and PET and other sheet.
3) It adopts PLC and touch screen control equipment operation.
4) Mould adopts two cell guides position fixing.
5) Mould movement adopts hydraulic pressure drive.
6) Mechanism movement adds automatically oil to lubricate at certain time.
7) Temperature controller module controls each temperature area.
8) It can finish production at one time through sheet feeding, heating, stretching, forming and in-mould cutting.
9) It can produce different products by different moulds.
10) Stable operation and reliable performance, low noise, high quality.
Main Technical Parameters:
Model |
FJL-660SB-D |
Max. Forming Area |
650 x 320 mm |
Running Speed |
15-32 cycles/min(according to sheet thickness, material used and product shape) |
Require Sheet Width |
500 – 660 mm |
Mode of Cutting Arrangement. |
In mould automatic |
Sheet Thickness Range |
0.20 – 2.0 mm |
Required Material |
PP, PS, HIPS, PET, PVC |
Max. Forming Depth |
130 mm |
Main Motor Power |
15KW |
Max. Sheet Reel Dia. |
800 mm |
|
Heating arrangement
|
Top + bottom Heating with IR Ceramic Heater, total 15 heating zones.
|
Temperature Controller & Thermocouple |
PID K-Type |
Type of Mould |
1 - 4 Rows |
Water Consumption |
0.5-1.0m3/h(recycled) |
Air Consumption |
1.3-1.6m3/min, 0.6-0.8Mpa |
Approx. Electricity Consumption |
45KW/hr |
Dimension |
L3400 × W1500 × H2300 (mm) |
Weight |
4400Kg |
