2016 cement brick making machine with competitive price
1. Main Components
| System | Main Components |
Auto Batching & Mixing System |
Batching Machine |
| Concrete Mixer | |
| Belt Conveyor For Gigment | |
| Spiral Conveyor | |
| Pallet Feeder | |
| Block Making Machine (With 1 set mould) | |
|
Transfer System |
Wet Block Conveyor |
| Control System for Main Machine Forming System | |
| Automatic Pallet Machine | |
| Mould | Block Mould |
| Pallet | Wooden Pallet |
2. Main Parameters
| Model | QFT8 |
| Vibration Mode | Table Vibration |
| Height of Products (mm) | 60-220 |
| Mainframe Power (Kw) | 42 |
| Standard Block Dimension | 390*190*190mm |
| Cycle Time | 15-25 second |
| Forming Blocks (Pieces) | 8 pieces / time |
| Weight (kg) | 8000 |
| Pallet Size (mm) | 930x880*30mm |
| Vibration Frequency | 50-65Hz |
| Vibration Table | 4kw * 4 |
| Vibration Force | 80-100KN |
| Rating Pressure ( Mpa) | 5-12 Mpa |
| Vibration Form | Adjustable Frequency, Adjustable Scope |
| Power Source Hydraulic or Other | Electric Drive |
| Main-pc/ Interface | Y |
| Production Line Voltage | 380V/3Phase/50Hz |
| External Dimension | 3300*1880*3063mm |

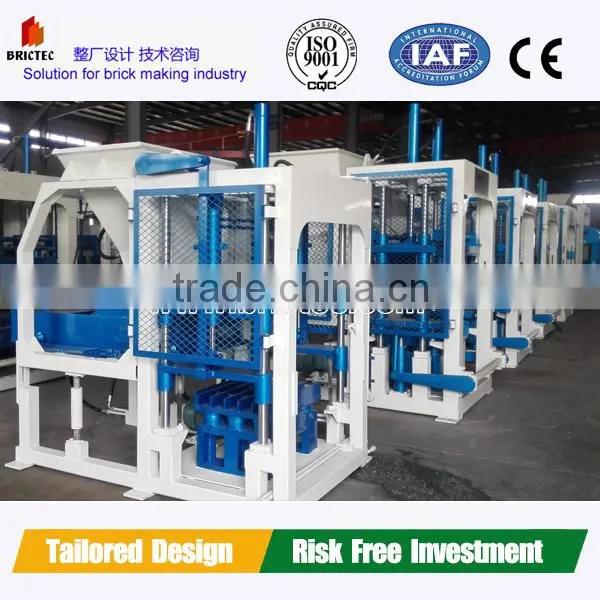

3. Main Machine Pictures:
4. Layout of full automatic Production Line
This kind of cement brick making machine will be packed in 3 pieces 40 feet container for shipment.
Machine total Weight about 25 tons.
Sea Shipment
Pre-sale service
1).According to the production demand and the scale,guide the users to choose the right block machine model and correct equipments.
2)Accompany on-the-spot investigation on production, introduce the processes and explain the difficult problems;
3)According to the actual situation,work out a flexible investment solution for you.
After-sales Service
1) Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation.
Countries or regions with unstable political situation or in the throes of wartime are not included in our plan.
2) Train the users to command the equipment and guide them for safe production.
3) Explain the routine maintenance of equipment carefully and remove common faults.
4) We are responsible for all the repairs that caused by our quality problems within one year’s warranty. Foreign accessories are generally delivered by DHL in order to provide services for foreign customers promptly. (We will provide one set of spare parts / wear & tear parts free of charge with shipment.)
5) For some countries whose visas are difficult obtained, customers can also send their technicians to our company to receive free guidance and training.
6) Accept suggestions for improvement put forward by customers an earnest way. In accordance with changes of the market,
provide the products and services to meet the user’s needs and create value for them.
7) We will make every effort to solve your problems, and your success will add new glory to us.
1.Nearly 20 years expertise and professional experience in designing and manufacturing for cement brick making machines
2.Design and customize block machines according to customers'requirements.
3.High levels of performance,quality and reliability of all equipments and services.
4.Reliable quality proven by customers both at home and abroad.
5.Reasonable prices without compromising any machines efficiency.
6.Promptness in both equipment delivery and technical support pre-and after sales.
