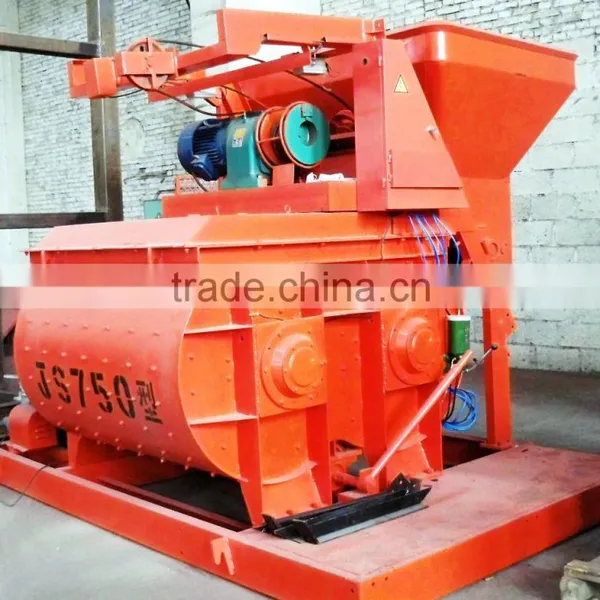

FXJS series Double horizontal shaft concrete mixer information
FXJS series Double horizontal shaft concrete mixer is a new type of forced mixer designed for meeting with special material requirement of block making machines. This machine mixes the materials into dry and hard concrete according to certain proportion and feeding for the block making machine. We have developed and manufactured types of FXJS500,FXJS 750,FXJS 1000,FXJS 1500, etc., based on the different requirement of FXJS series mixer has the following features :
specification
Model |
FXJS500 |
FXJS750 |
FXJS1000 |
FXJS1500 |
Feeding Capacity |
800L |
1200L |
1600L |
2400L |
Discharging Capacity |
500L |
750L |
1000L |
1500L |
Productivity |
25m3/h |
35m3/h |
50m3/h |
75m3/h |
Mixing Motor |
Y180M-4B5 18.5KW |
Y200M-4B5 30KW |
Y225M-4B5 37KW |
Y225M-4B5 45KW |
Hoisting Motor |
YEZ132S-485 5.5KW |
YEZ132M-485 7.5KW |
YEZ160S-485 11KW |
YEZ180M-485 18.5KW |
RPM |
35r/min |
31r/min |
26r/min |
26r/min |
Lifting Speed of Hopper |
18m/min |
19.2m/min |
21.9m/min |
23m/min
|
No. of mixing blade |
2×7 |
2×8 |
2×8 |
2×10 |
Material Discharge Level |
2000mm |
2200mm |
2500mm |
2500mm |
Wt. |
4000kg |
6500kg |
8750kg |
8750kg |
Our service
In-Sale services:
(1)Quality control must be inspected strictly
(2)In accordance with the agreements stipulated in the contract
After-sale services:
(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.
(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
1. Daily wear and tear 2.mishandling or improper operation3. Incoming power supply fluctuation
4. Consumable and spare parts.
(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.
Welcome to contact us for more information!
