Factory sale fully automatic concrete block making machine
1. Main technical specification
| Model No.: | QFT4 |
| Vibration Mode | Table vibration |
| Hight of Products(mm) | 60-220 |
| Mainframe Power (Kw) | 26 |
| Standard Block Dimension | 390x190x190mm |
| Cycle Time | 15-25 seconds |
| Forming Blocks | 4 pieces / cycle |
| Weight (kg) | 6500 |
| Pallet Size (mm) | 930x560x25 |
| Vibration Frequency | 50-65 Hz |
| Vibration Table | 4 Kw x 2 |
| Vibration Force | 50-70 KN |
| Rating Pressure (Mpa) | 5-12 Mpa |
| Vibration Form | Adjustable frequency, Adjustable amplitude |
| Power Source Hydraulic or Other | Electric Drive |
| Man-pc / Interface | Y |
| Power Supply | 380V/3phase/50Hz |
| External Dimension | 2870x1800x2950mm |
| No. | Name | Main Components |
| 1 | Mixing Section | 50 Ton cement soil |
| 2 | Screw Conveyor φ219x8m | |
| 3 | Cement Scale | |
| 4 | Belt Conveyor for Base Material | |
| 5 | Concrete Batching Machine | |
| 6 | Twin-shaft concrete mixer | |
| 7 | Forming Section | Brick Making Machine |
| 8 | Wet Block Conveyor | |
| 9 | PLC Control System for Main Machine Forming | |
| 10 | Pallet Feeder | |
| 11 | Automatic Pallet Stacker | |
| 12 | Optional Accessories | Coler Feeding System |

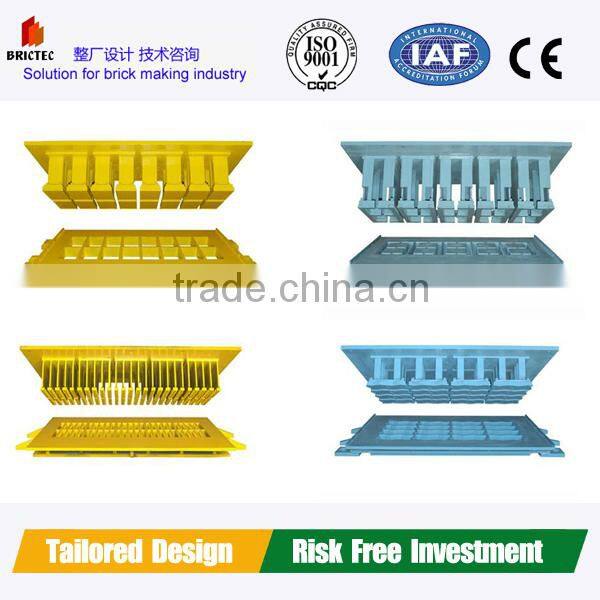

| 13 | Additional Block Mould | |
| 14 | Bamboo Pallet | |
| 15 | Forklift | |
| 16 | Loader |
3. Why Brictec
With 40 feet container for shipment
1) Delivery time: 30 to 45 days after receiving deposit.
2) Trade term: FOB/ CRF / CIF
3) Shipping cost depends on the brick making machine size and weight and your nearest port.
4) Payment: 30% deposit, balance paid before shipment.
5) Warranty: 1 year after the machine be installed on your site.
Our company is the earliest manufacturer with independent intellectual property engaged in researching and manufacturing fully automatic concrete block making machine. We import the world advanced technology and make improvement and innovation for the brick making machinery. We are specialized in project design, technological devalopment, equipment manufacturing and after-sale service. Our brick making production lines are exported to some African countries, Asia countries and other international countries. Nearly 1000 brick making production lines in good operation. We have a perfect sales and after-service system and set up agents in China and overseas.
1.Q: Can you make our zise of block?
A: Yes,We will design molds according to customers' drawing/picture of blocks.
2.Q: What is your payment term?
A: T/T,L/C, Western Union or others.
3.Q: what is your delivery time?
A: Normally delivery time within 30 to 45 days since receive deposit.
4.Q: What is your MOQ( Minimum Order Quantity )?
A: 1set.
5.Q: How about your packing?
A: With container shipment
