Specifications
German Cylinder Door Lock Art.1K007Mortise Door Lock Body
Center: 70mm
Backset: 40mm
Surface: Black Powder Coating
Product: German Cylinder Door Lock Art.1K007
Description:
Mortise Door Lock Body with Cylinder Hole
German Cylinder Door Lock
1. Center: 70mm
2. Backset: 40mm
3. Latch Bolt: Zamak latch bolt with brass plated
4. Dead bolt: Zamak dead bolt with brass plated
5. Turn: with 1 turn
6. Forned: Steel front plated with brass plated
7. Lock case: Steel lcok case with powder coating, size 148 x 68mm
8. Follower: 7 x 7 follower
9. Screw: Concealed 3 pc screw for striker and 2pc screw for forend
10. Matching: Suitable for interior wooden door with thickness more than 40mm
Suitable for bolt through furniture and escutcheons
Front & striking plates available in radius or rectangular
Suitable for sprung and unsprung lever furniture.
11. Remark: Test level: 200,000 times operation

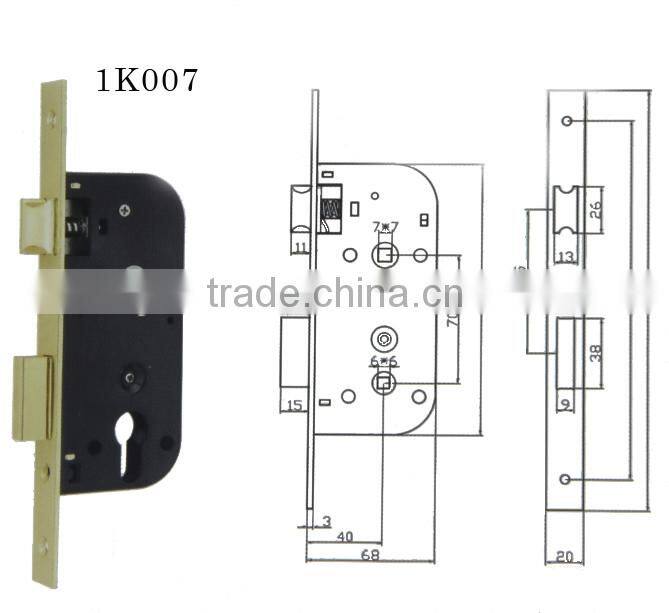

Photo and Drawing:
Available Color for Forend:
| 1. BSN | Brushed Satin Nickle | ||||||
| 2. SN | Satin Nicke | ||||||
| 3. CP | Chrome Plated | ||||||
| 4. AB | Antique Bronze | ||||||
| 5. AC | Antique Copper | ||||||
| 6. GP | Golden Plated | ||||||
| 7. White | White powder coating | ||||||
| 8. YZP | Yellow zinc plated | ||||||
| 9. 10B | Blacked | ||||||
Packing Details:
| 1.Inner packing | One piece per white box or color box with customer logo | ||||||
| One piece per hanging paper card with customer logo | |||||||
| 2.Out packing | 30 pair per carton box | ||||||
Other Details:
| 1.MOQ | 1000pc | ||||||
| 2.Lead time | 30-45 days | ||||||
| 3.Sample | Available against payment | ||||||
| 4.Payment | ESCROW, TT, LC, DP | ||||||
